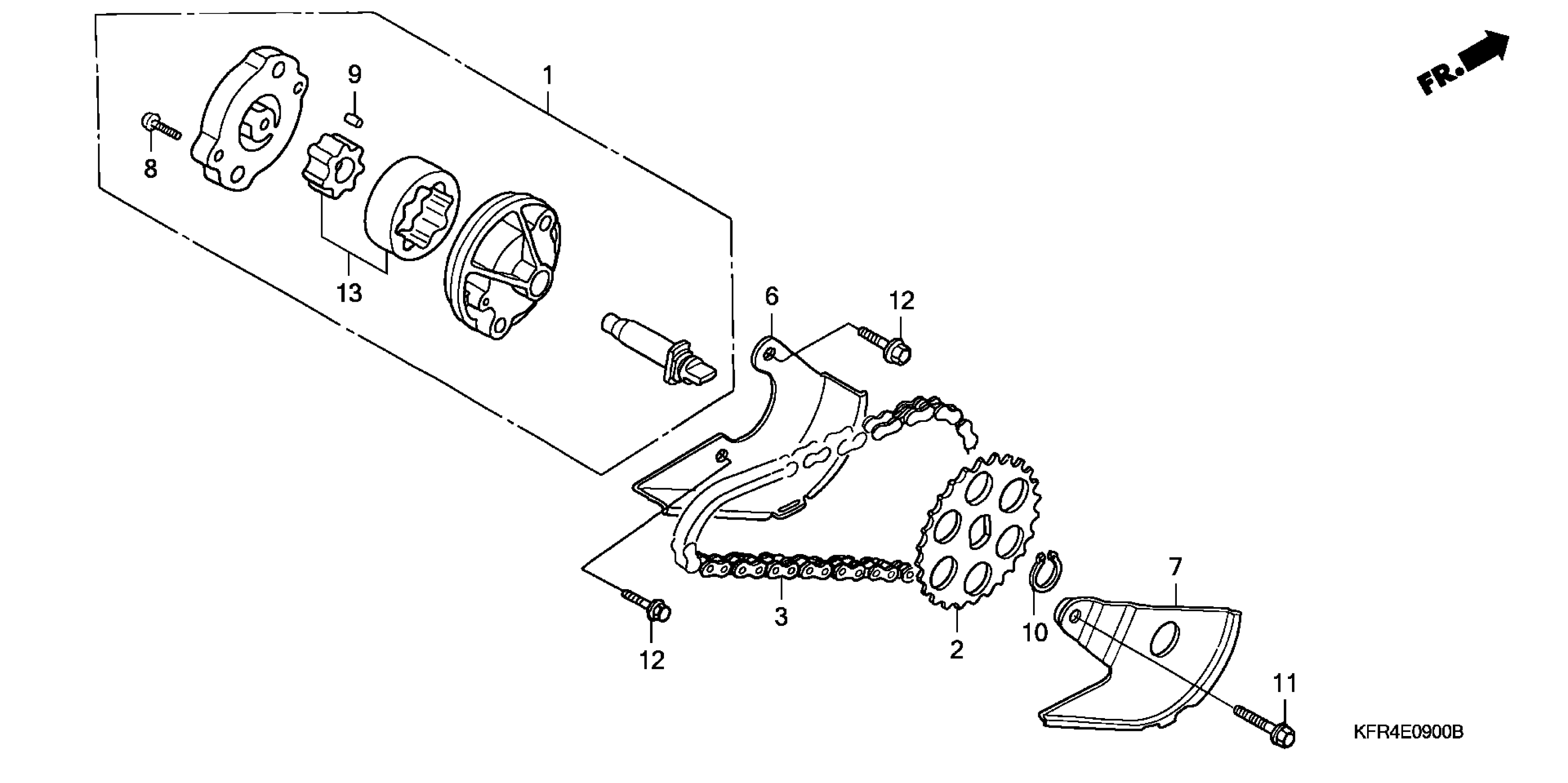

Honda CN250A (07) HELIX, JPN, VIN# JH2MF020-7K000001 OIL PUMP Diagram

#

Description

Price

1

PUMP ASSY., OIL

15100-KJ9-000

Unavailable

2

SPROCKET, OIL PUMP DRIVEN (25T)

15133-KM1-000

$25.07

3

CHAIN, OIL PUMP

15141-KJ9-003

Unavailable

4

ROTOR, OIL PUMP (INNER) (YAMADA)

15331-921-003

Unavailable

5

ROTOR, OIL PUMP (OUTER) (YAMADA)

15332-921-003

Unavailable

6

SEPARATOR A, OIL

15711-KJ9-000

$16.93

7

SEPARATOR B, OIL

15712-KJ9-010

Unavailable

8

SCREW, PAN (3X12)

93500-03012-0A

$1.49

8

SCREW, PAN (3X12) This part replaces 93500-03012-1A.

93500-03012-0A

$1.49

9

PIN C, DOWEL (4X6.5)

94303-04065

$2.14

10

CIRCLIP, OUTER (10MM)

94510-10000

$1.49

11

BOLT, FLANGE (6X12)

96001-06012-00

$1.80

12

BOLT, FLANGE (6X28)

96001-06028-07

$1.51

13

ROTOR SET, OIL PUMP

15021-921-000

Unavailable
