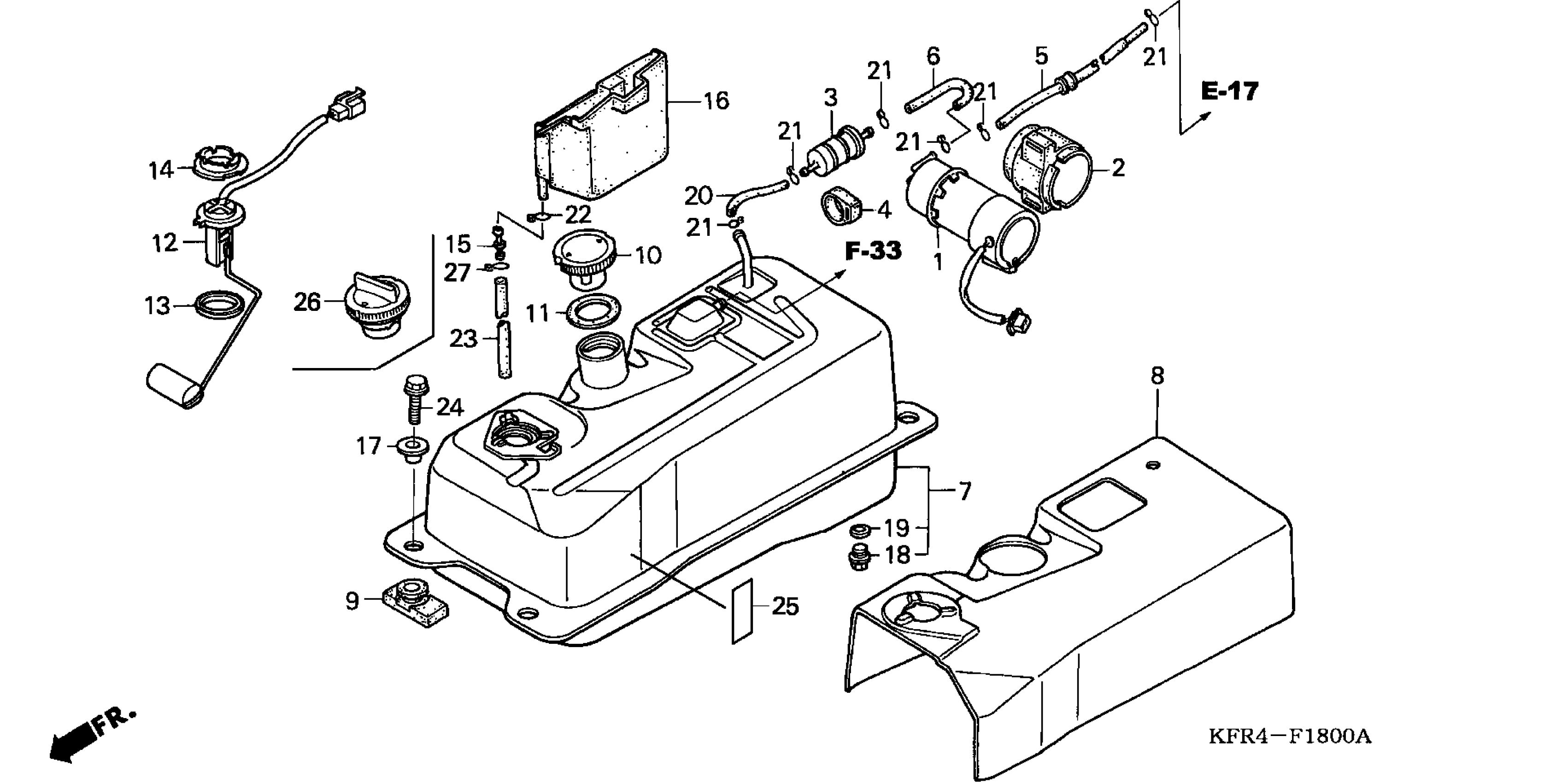

Honda CN250A (07) HELIX, JPN, VIN# JH2MF020-7K000001 FUEL TANK Diagram

#

Description
Price

1

PUMP ASSY., FUEL (MSDS)

16710-KS4-015

$231.79

2

RUBBER, FUEL PUMP MOUNTING

16711-KS4-000

Unavailable

3

FILTER, FUEL

16900-371-004

$27.76

4

CUSHION, FUEL STRAINER

16905-MG7-000

$7.58

5

TUBE, FUEL PUMP (A)

17301-KS4-000

$15.88

6

TUBE, FUEL PUMP (B)

17302-KS4-000

$10.75

7

TANK, FUEL

17500-KS4-751

Unavailable

8

INSULATOR, FUEL TANK

17505-KS4-750

Unavailable

9

RUBBER, FUEL TANK

17613-KS4-000

Unavailable

12

FUEL UNIT (NIPPON SEIKI)

37800-KS4-018

Unavailable

13

GASKET, BASE

37801-GA7-700

$4.93

14

RETAINER, FUEL UNIT

37802-GA7-700

$4.93

15

JOINT, OIL TUBE

55102-166-000

$4.15

16

TRAY, FUEL CAP

64311-KS4-000

Unavailable

17

COLLAR (6.2X13)

90501-MA3-720

$4.58

18

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.08

19

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.13

20

BULK HOSE, FUEL (5.5X3000) (5.5X60)

95001-55003-60M

$53.97

21

CLIP, TUBE (B10)

95002-02100

$1.75

22

CLIP, TUBE (C9)

95002-50000

$1.16

23

BULK HOSE, VINYL (7X11X8000) (7X11X180)

95003-19008-60M

Unavailable

24

BOLT, FLANGE (6X25)

95701-06025-00

$1.66

25

GUARD, FUEL TANK

17506-GCK-300

Unavailable

26

CAP, FUEL FILLER This part replaces 17620-KFR-840.

17620-KFR-841

$36.91

27

CLIP, TUBE (C11)

95002-70000

$1.51
