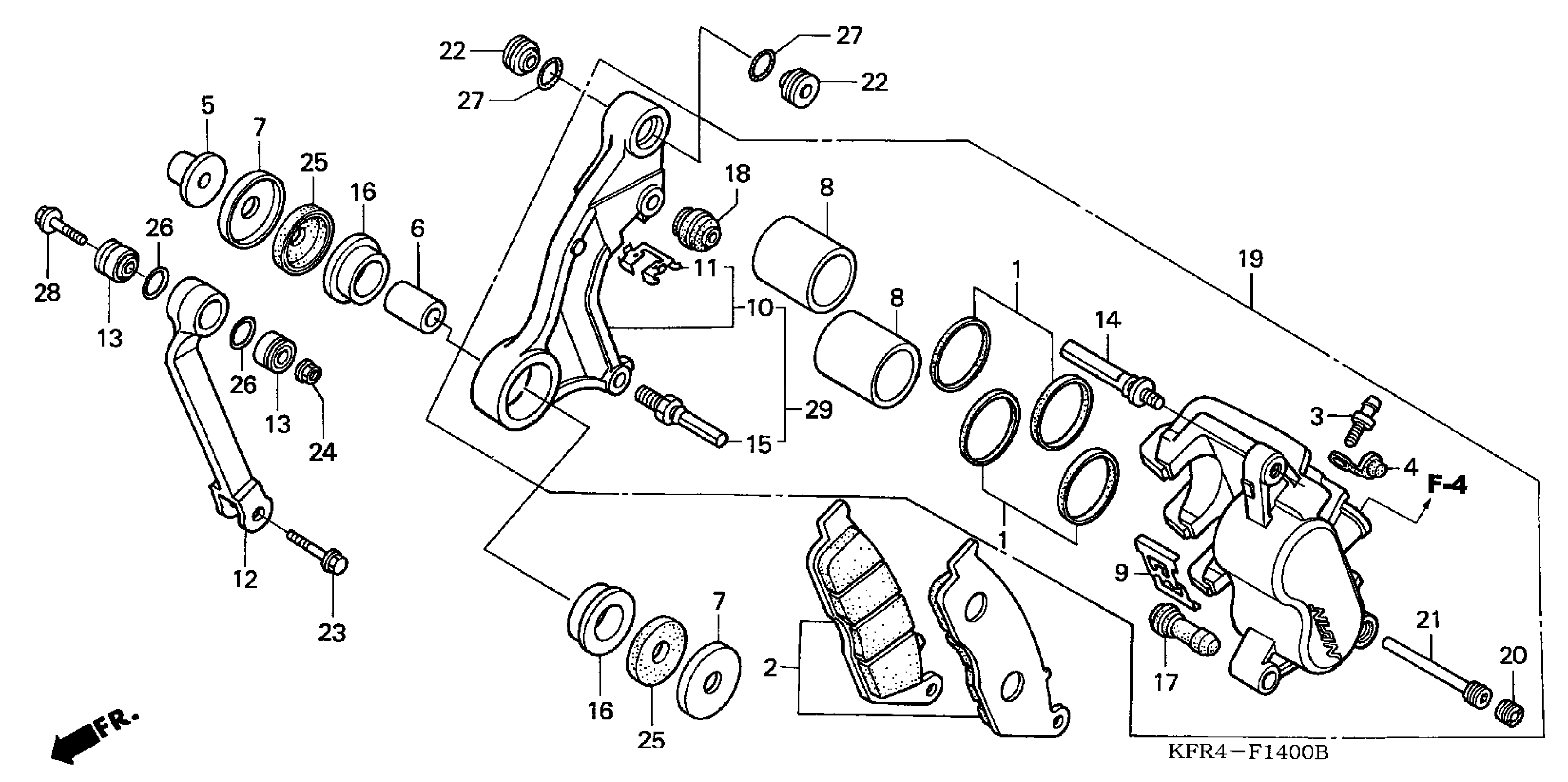

Honda CN250A (07) HELIX, JPN, VIN# JH2MF020-7K000001 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

SEAL SET, PISTON

06431-MA3-405

$7.33

2

PAD SET This part replaces 06455-MW3-406.

06455-MW3-415

$42.81

2

PAD SET This part replaces 06455-KFR-701.

06455-MW3-415

$42.81

2

PAD SET This part replaces 06455-KFR-702.

06455-MW3-415

$42.81

3

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

4

CAP, BLEEDER

43353-461-771

$5.05

5

COLLAR A, FR. BRAKE

44312-KM1-000

Unavailable

6

COLLAR B, FR. BRAKE

44313-KM1-000

Unavailable

7

CAP, FR. BRACKET SEAL

44314-KM1-000

Unavailable

8

PISTON

45107-ML4-006

$37.87

9

SPRING, PAD (NISSIN)

45108-ML7-922

$6.19

11

RETAINER

45112-ML7-921

$5.46

12

LINK, TORQUE

45122-KS4-010

$49.61

13

BUSH A, TORQUE LINK

45123-KM1-000

Unavailable

16

BUSH, FR. BRAKE MASTER CYLINDER

45132-KM1-003

$16.11

17

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.46

18

BOOT B

45133-MA3-006

$5.46

19

CALIPER SUB-ASSY., L. FR. BRAKE (NISSIN)

45150-KAB-305

Unavailable

20

PLUG, PIN

45203-MG3-016

$5.12

21

PIN, HANGER

45215-ML7-922

$10.67

22

BUSH, CALIPER BRACKET

51315-KM1-000

$12.49

23

BOLT, FLANGE (8X35)

90131-MY6-670

$2.61

24

NUT, U (10MM) (FUSE RASHI)

90304-GE8-003

$3.67

25

OIL SEAL (31.8X40X4)

91256-KM1-004

$7.97

26

O-RING A, TORQUE LINK (NOK)

91353-KM1-004

$2.33

27

O-RING (17.8X1.9) (NOK)

91322-PT0-003

$2.58

27

O-RING (17.8X1.9) (NOK) This part replaces 91354-KM1-003.

91322-PT0-003

$2.58

28

BOLT, FLANGE (10X45)

95801-10045-00

$2.16

29

BRACKET SUB-ASSY., L. FR. CALIPER

45190-KFR-701

Unavailable
