Partiron

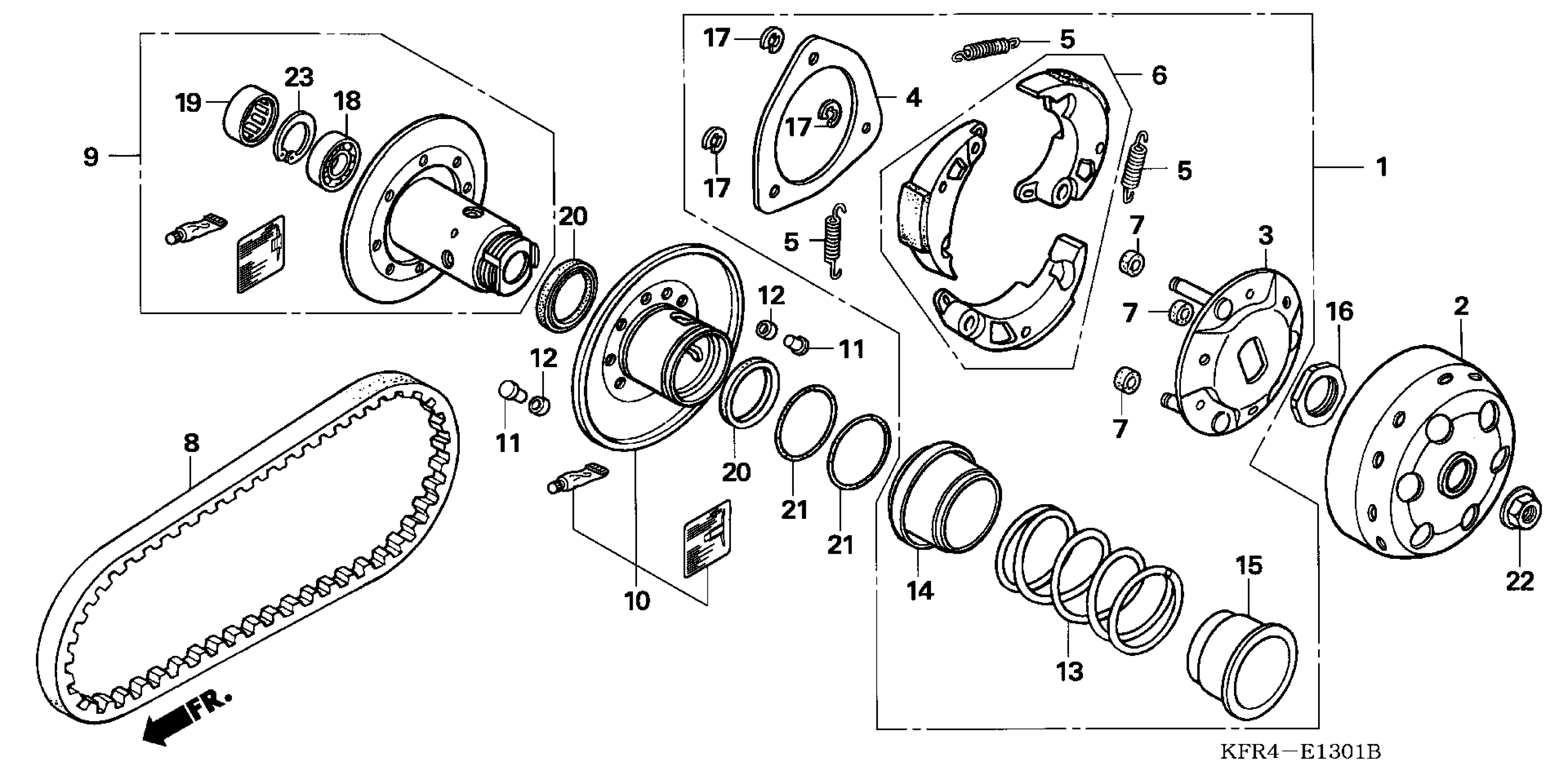

Honda CN250A (07) HELIX, JPN, VIN# JH2MF020-7K000001 DRIVEN FACE ('00-'01,'04-) Diagram

#

Description
Price

2

CLUTCH (OUTER)

22101-KS4-772

Unavailable

3

PLATE, DRIVE

22350-KFG-000

$31.37

4

PLATE, CLUTCH SIDE

22361-KFG-000

$14.59

5

SPRING, CLUTCH

22401-KM1-670

$4.01

6

WEIGHT SET, CLUTCH

22535-KFG-000

$57.82

7

RUBBER, CLUTCH DAMPER

22804-GB2-000

$3.59

8

BELT, DRIVE

23100-KM1-671

$109.04

9

FACE SET, DRIVEN

23205-KM1-315

Unavailable

10

FACE SET, MOVABLE DRIVEN

23221-KM1-305

Unavailable

11

PIN, ROLLER GUIDE

23225-KM1-010

$2.87

12

ROLLER, GUIDE

23226-KM1-010

$3.84

13

SPRING, DRIVEN FACE

23233-KS4-840

$14.54

14

COLLAR, SEAL

23237-KS4-840

$7.01

15

COLLAR, SPRING

23238-KS4-840

Unavailable

16

NUT, SPECIAL (30MM)

90202-KM1-000

$6.18

17

CIRCLIP (7MM)

90605-166-720

$1.66

18

BEARING, RADIAL BALL (6902U) (NTN)

91002-GA7-701

$22.58

18

BEARING, RADIAL BALL (6902U) (NTN) This part replaces 91002-GA7-702.

91002-GA7-701

$22.58

19

BEARING, NEEDLE (22X29X18)

91002-KFG-003

$10.51

20

SEAL, DRIVEN FACE (40X47X4)

91211-KM1-005

$7.97

21

O-RING (47X1.9) (NOK)

91352-KM1-003

$2.80

21

O-RING (47X1.9) (ARAI)

91352-KM1-005

$2.80

22

NUT, FLANGE (12MM)

94050-12000

$0.96

23

CIRCLIP (INNER) (28MM)

94520-28000

$1.44
