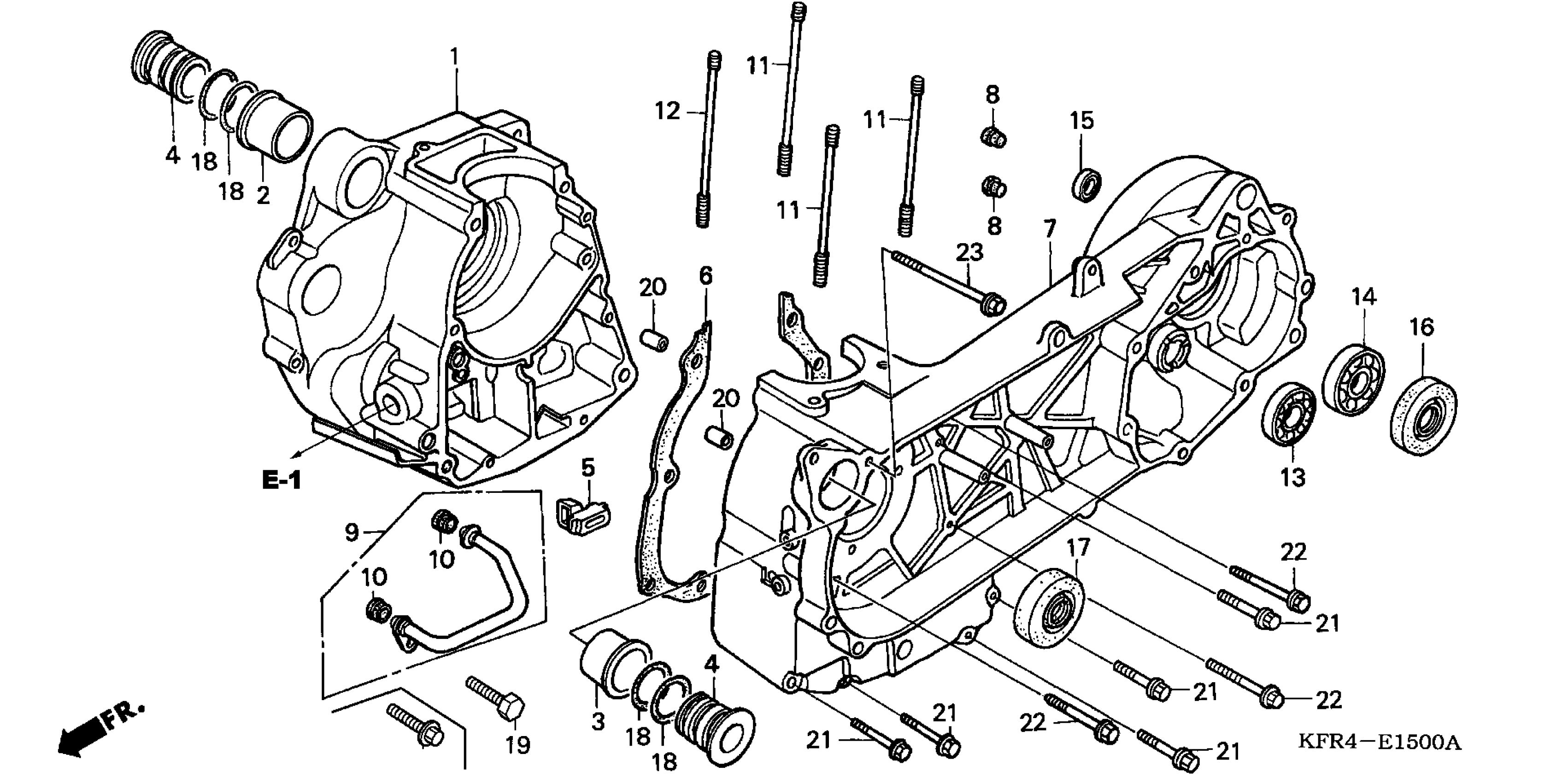

Honda CN250A (07) HELIX, JPN, VIN# JH2MF020-7K000001 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE, R.

11100-KS4-010

Unavailable

2

BUSH, R. ENGINE HANGER (OUTER)

11103-KJ9-750

$15.67

3

BUSH, L. ENGINE HANGER (OUTER)

11104-KJ9-751

$15.50

4

BUSH, ENGINE HANGER (INNER)

11105-KJ9-750

$19.18

5

RUBBER, OIL FENCE

11121-KM1-000

Unavailable

6

GASKET, R. CRANKCASE

11191-KS4-690

$8.75

7

CRANKCASE, L.

11200-KS4-010

Unavailable

8

RUBBER, SPRING GUIDE

11202-GC7-300

Unavailable

9

PIPE B, OIL

15520-KM1-000

$22.66

10

SEAL, RUBBER

15525-KM1-000

$3.43

11

BOLT A, STUD (8MM)

90031-KM1-010

$7.70

12

BOLT B, STUD (8MM)

90032-KM1-010

Unavailable

13

BEARING, RADIAL BALL (6301TMB) (NTN)

91003-KS4-003

$26.75

14

BEARING, RADIAL BALL (6205-2NSG)

91006-KAB-004

$40.85

15

OIL SEAL (14X20X3.2)

91201-434-003

$4.26

16

OIL SEAL (34X52X5) (NOK)

91253-KM1-003

$9.18

17

OIL SEAL (27.9X40X8) (ARAI)

91261-KM1-003

$9.55

18

O-RING (16MM) This part replaces 91304-MJ0-003.

91303-800-000

$2.23

20

PIN, DOWEL (10X16)

94301-10160

$2.28

21

BOLT, FLANGE (6X60)

95701-06060-00

$1.49

22

BOLT, FLANGE (6X70)

95701-06070-00

$2.19

23

BOLT, FLANGE (6X125)

95701-06125-00

Unavailable

24

BOLT, FLANGE (6X12)

96001-06012-00

$1.80
