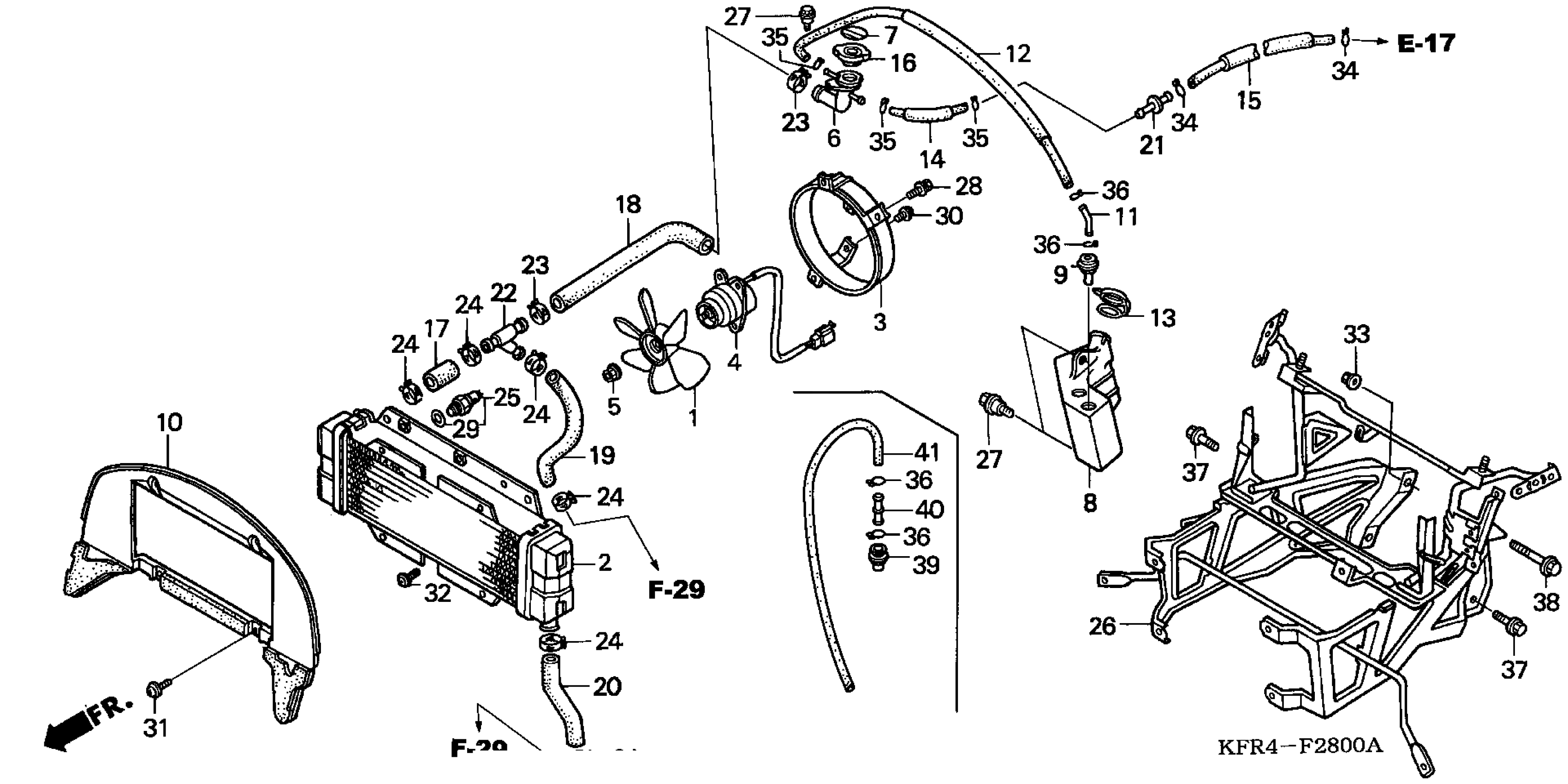

Honda CN250A (06) HELIX, JPN, VIN# JH2MF020-6K900001 TO JH2MF020-6K999999 RADIATOR Diagram

FAN, COOLING

19009-KM3-003

$66.16

RADIATOR

19010-KFR-861

Unavailable

RADIATOR This part replaces 19010-KFR-701.

19010-KFR-861

Unavailable

SHROUD

19015-KS4-003

$66.30

MOTOR, COOLING FAN

19030-KS4-013

$272.69

NUT, TOOTHED (3MM)

19036-KS4-003

$2.33

NECK, FILLER

19039-KM1-004

$29.31

SEAL, RADIATOR CAP

19055-MZ3-300

Unavailable

TANK, RESERVE

19101-KS4-020

Unavailable

DUCT, AIR

19102-KE8-010

Unavailable

DUCT, AIR

19102-KS4-000

Unavailable

JOINT, TUBE

19103-MB9-000

$6.34

TUBE (7.3X530)

19104-KS4-000

Unavailable

CAP, RESERVE TANK

19104-MB0-700

$12.16

TUBE (7.3X53)

19107-KS4-020

Unavailable

TUBE (3.5X1474)

19108-KS4-010

Unavailable

CAP, RADIATOR FILLER

19111-KE1-013

$34.86

HOSE A

19122-KS4-000

Unavailable

HOSE, FILLER NECK

19123-KS4-000

$11.75

HOSE C, WATER

19124-KS4-710

Unavailable

HOSE D, WATER

19125-KS4-000

Unavailable

JOINT, TUBE

19126-KM1-010

$3.90

JOINT (THREE-WAY)

19126-KFR-700

Unavailable

CLAMP, HOSE (22-29MM)

19517-ML7-691

$11.62

CLIP B, HOSE

19514-ME9-003

$5.64

SWITCH ASSY., THERMOSTAT

37760-KS4-880

Unavailable

BRACKET, RADIATOR MOUNTING

50310-KS4-010

$91.51

BOLT, FLANGE (6MM)

90111-162-000

$2.89

BOLT-WASHER (5X12)

90125-KM1-831

$2.52

O-RING (13.5X1.4)

91307-PH7-660

$2.83

O-RING (13.5X1.4) This part replaces 91307-611-000.

91307-PH7-660

$2.83

SCREW-WASHER (4X8)

93891-04008-08

$1.49

SCREW-WASHER (5X12)

93891-05012-07

$1.49

SCREW-WASHER (6X12)

93891-06012-00

$1.49

NUT, FLANGE (6MM)

94050-06000

$1.49

CLIP, TUBE (B7)

95002-02070

$1.80

CLIP, TUBE (B12)

95002-02120

$2.00

CLIP, TUBE (C12)

95002-80000

$1.49

BOLT, FLANGE (8X16)

95701-08016-00

$1.80

BOLT, FLANGE (6X140)

95801-06140-08

Unavailable

TUBE, LEVEL

19102-KFR-700

$5.34

JOINT, TUBE

19102-KT8-000

$6.61

BULK HOSE, VACUUM (7X3000) (7X570)

95005-70003-30M

$23.45
