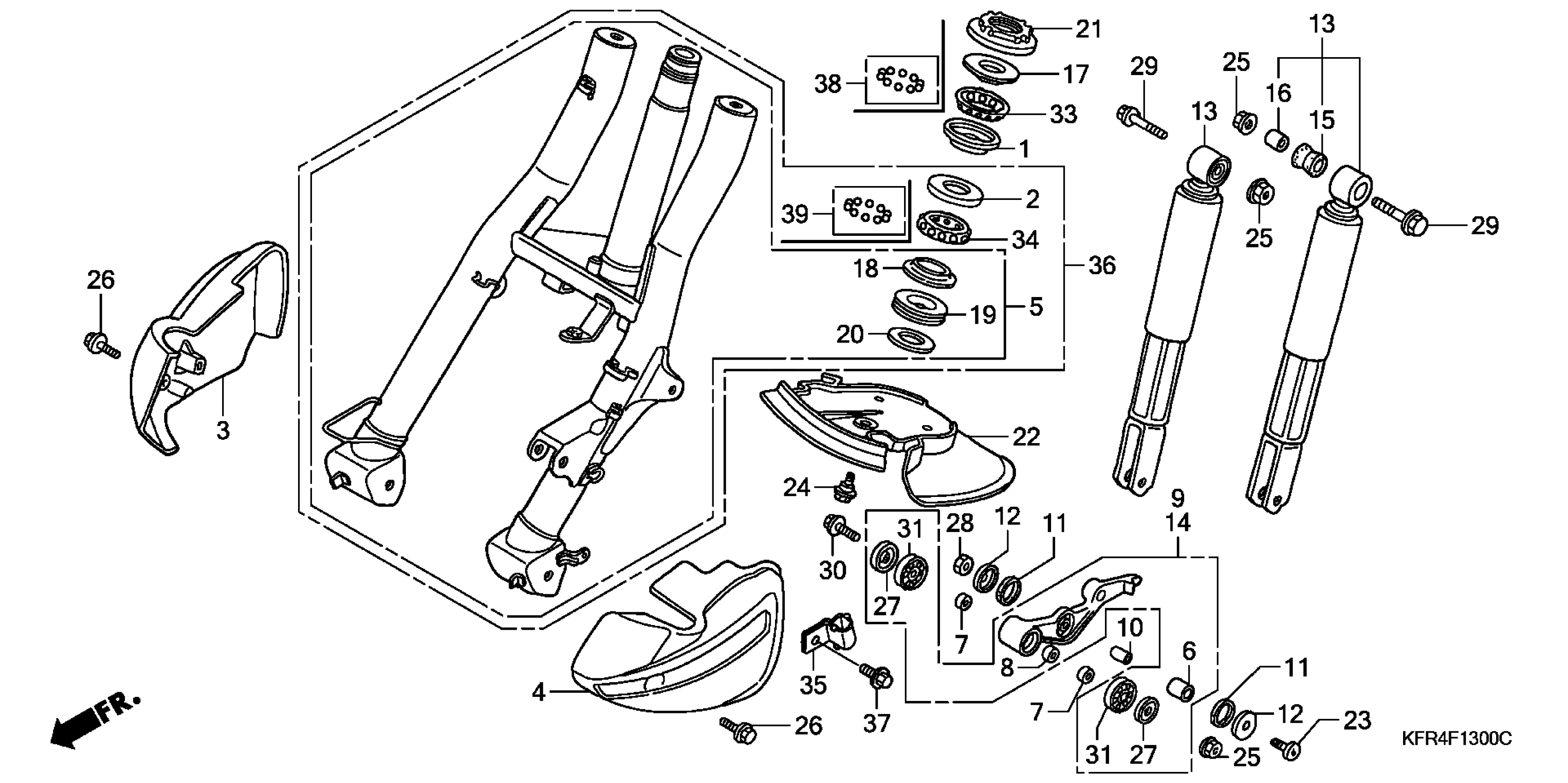

Honda CN250A (06) HELIX, JPN, VIN# JH2MF020-6K900001 TO JH2MF020-6K999999 FRONT FORK Diagram

#

Description
Price

1

RACE, STEERING TOP BALL

50301-268-010

$22.12

2

RACE, STEERING BALL (LOWER)

50302-268-010

$21.73

3

COVER, R. PIVOT ARM

51103-KM1-010

Unavailable

4

COVER, L. PIVOT ARM

51104-KM1-010

Unavailable

6

BUSH, FR. FORK (LOWER)

51312-GN2-003

$7.60

7

COLLAR A, PIVOT ARM

51313-KM1-000

Unavailable

8

COLLAR B, PIVOT ARM

51314-KM1-000

Unavailable

9

ARM SET, R.

51315-KS4-305

Unavailable

10

COLLAR, FR. FORK DISTANCE

51334-GN2-000

$6.56

11

SEAL, FR. FORK (LOWER)

51335-KS4-000

$3.44

12

CAP, FR. FORK DUST SEAL (LOWER)

51336-001-000

$2.20

13

CUSHION ASSY., FR. *NH1* (BLACK)

51400-KS4-711ZA

Unavailable

14

ARM SET, L.

51415-KS4-305

Unavailable

15

BUSH, FR. FORK RUBBER

51476-KS4-003

Unavailable

16

COLLAR, RR. SHOCK ABSORBER RUBBER BUSH

52486-001-000

$4.85

17

RACE, STEERING TOP CONE

53211-268-010

$26.89

18

RACE, STEERING CONE (LOWER)

53212-250-010

$21.57

19

DUST SEAL This part replaces 53214-250-000.

53214-K0T-J00

$3.03

20

WASHER, STEERING HEAD DUST SEAL

53215-KS4-000

$8.49

21

THREAD, STEERING HEAD TOP

53220-KE8-010

$31.86

22

FENDER, FR. FORK

61102-KS4-670

$35.31

23

BOLT, FR. FORK (LOWER)

90104-KS4-000

$5.21

24

BOLT, FLANGE (6MM)

90111-187-000

$5.59

25

NUT, U (10MM) (FUSE RASHI)

90304-GE8-003

$3.67

26

BOLT, FLANGE (5X9)

90508-GC8-000

$4.35

27

DUST SEAL (16X26X4)

91257-KM1-003

$4.66

28

NUT, HEX. (8MM)

94002-08000-0S

$1.49

29

BOLT, FLANGE (10X45)

95801-10045-00

$2.16

30

BOLT, FLANGE (10X55)

95801-10055-00

$1.49

31

BEARING, RADIAL BALL (6000)

96120-60000-10

Unavailable

33

BALL ASSY., STEERING STEEL

53215-KL8-901

$33.59

34

BALL ASSY., STEERING STEEL

53215-GBK-003

$15.26

35

CLAMP, BRAKE HOSE

45155-KFR-700

$6.41

36

FORK SET, FR. *NH1* (BLACK)

51110-KFR-701ZA

Unavailable

37

BOLT, FLANGE (6X12)

95701-06012-07

$1.62
