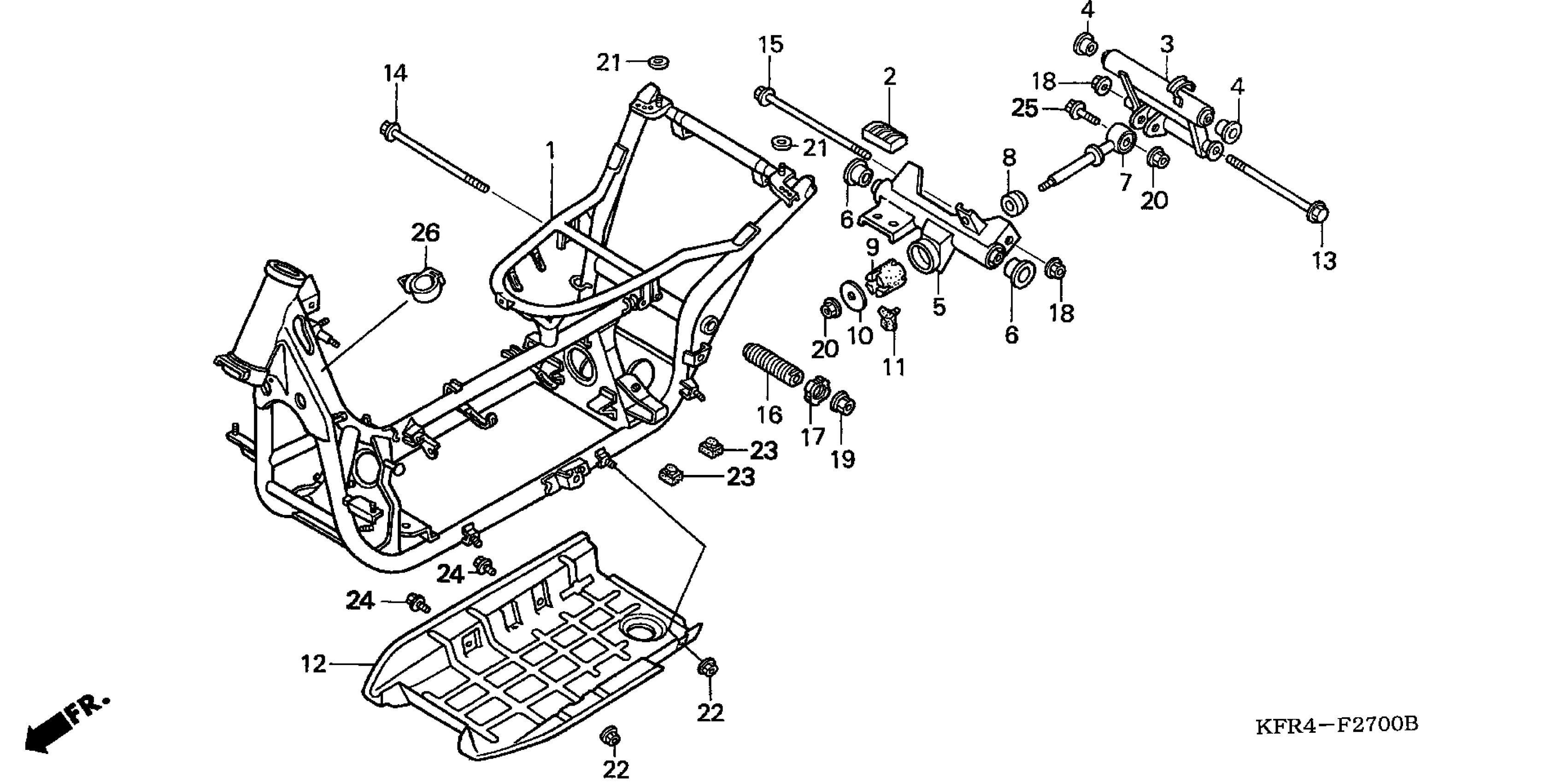

Honda CN250A (01) HELIX, JPN, VIN# JH2MF020-1K600001 TO JH2MF020-1K699999 FRAME Diagram

#

Description
Price

1

FRAME This part replaces 50100-KS4-650.

50100-KS4-651

Unavailable

1

FRAME

50100-KS4-651

Unavailable

2

RUBBER, STOPPER

50352-KS4-000

Unavailable

3

BRACKET SUB-ASSY. B, ENGINE HANGER

50355-KS4-010

$134.74

4

BEARING B, ENGINE HANGER

50357-KM1-310

$7.75

5

BRACKET SUB-ASSY. A, ENGINE HANGER

50365-KS4-000

$128.93

6

BEARING A, ENGINE HANGER

50367-KS4-310

Unavailable

7

ROD ASSY., TENSION

50370-KS4-013

Unavailable

8

RUBBER A, STOPPER

50372-KS4-000

Unavailable

9

RUBBER B, STOPPER

50373-KS4-000

$17.97

10

WASHER, RUBBER STOPPER

50374-KS4-000

$12.02

11

RUBBER, STOPPER

50375-KS4-000

Unavailable

12

COVER, FUEL TANK (LOWER)

50610-KS4-710

Unavailable

13

BOLT, FLANGE (10X210)

90105-KJ9-000

$15.49

14

BOLT, FLANGE (12X373)

90105-KS4-770

$34.72

15

BOLT, FLANGE (10X212)

90106-KS4-770

$20.26

16

COLLAR, FRAME PIVOT (C)

90121-KS4-010

$20.33

17

NUT C, STEERING STEM

90304-GB4-680

$7.41

18

NUT, U (10MM) (FUSE RASHI)

90304-GE8-003

$3.67

19

NUT, FLANGE (12MM) (FUSERASHI)

90306-KF0-003

$3.85

20

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.35

20

NUT, FLANGE (M8X1.25) (SELF-LOCK)

90309-428-731

$3.35

21

WASHER (10.3MM)

90521-427-770

$2.28

22

NUT, FLANGE (6MM)

94050-06000

$1.49

23

RUBBER A, STAND STOPPER

95011-61000

$1.49

24

BOLT, FLANGE (6X10)

95701-06010-00

$1.49

25

BOLT, FLANGE (8X35) This part replaces 95700-08035-08.

95701-08035-08

$1.49

25

BOLT, FLANGE (8X35)

95701-08035-08

$1.49

25

BOLT, FLANGE (8X35) This part replaces 95900-08035-08.

95701-08035-08

$1.49
