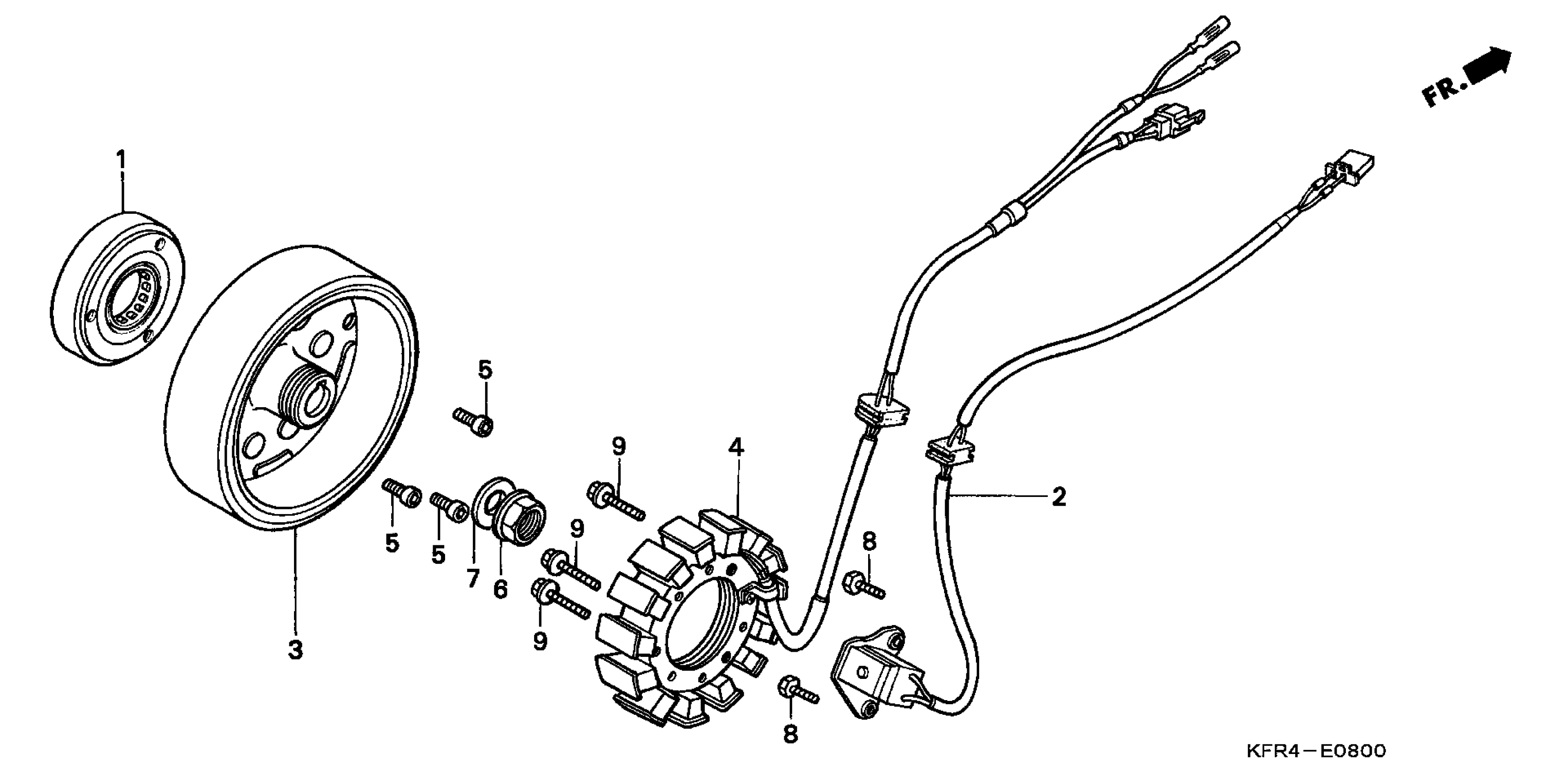

Honda CN250A (01) HELIX, JPN, VIN# JH2MF020-1K600001 TO JH2MF020-1K699999 ALTERNATOR Diagram

#

Description
Price

1

CLUTCH ASSY., STARTER ONE-WAY

28120-KM1-013

Unavailable

2

GENERATOR ASSY., PULSE

30300-KM1-014

Unavailable

3

FLYWHEEL

31110-KM1-024

Unavailable

4

STATOR

31120-KS4-004

Unavailable

5

BOLT, SOCKET (8X18)

90010-KM1-000

$5.25

6

NUT, FLANGE (16X1.0) This part replaces 90203-KM1-020.

90203-KRJ-791

$4.21

6

NUT, FLANGE (16X1.0)

90203-KRJ-791

$4.21

7

WASHER, THRUST (16.2X30X2.0)

90431-KM1-010

$3.88

8

BOLT, HEX. (5X16)

92101-05016-0A

$1.49

9

BOLT, FLANGE (6X32)

96001-06032-00

$1.49
