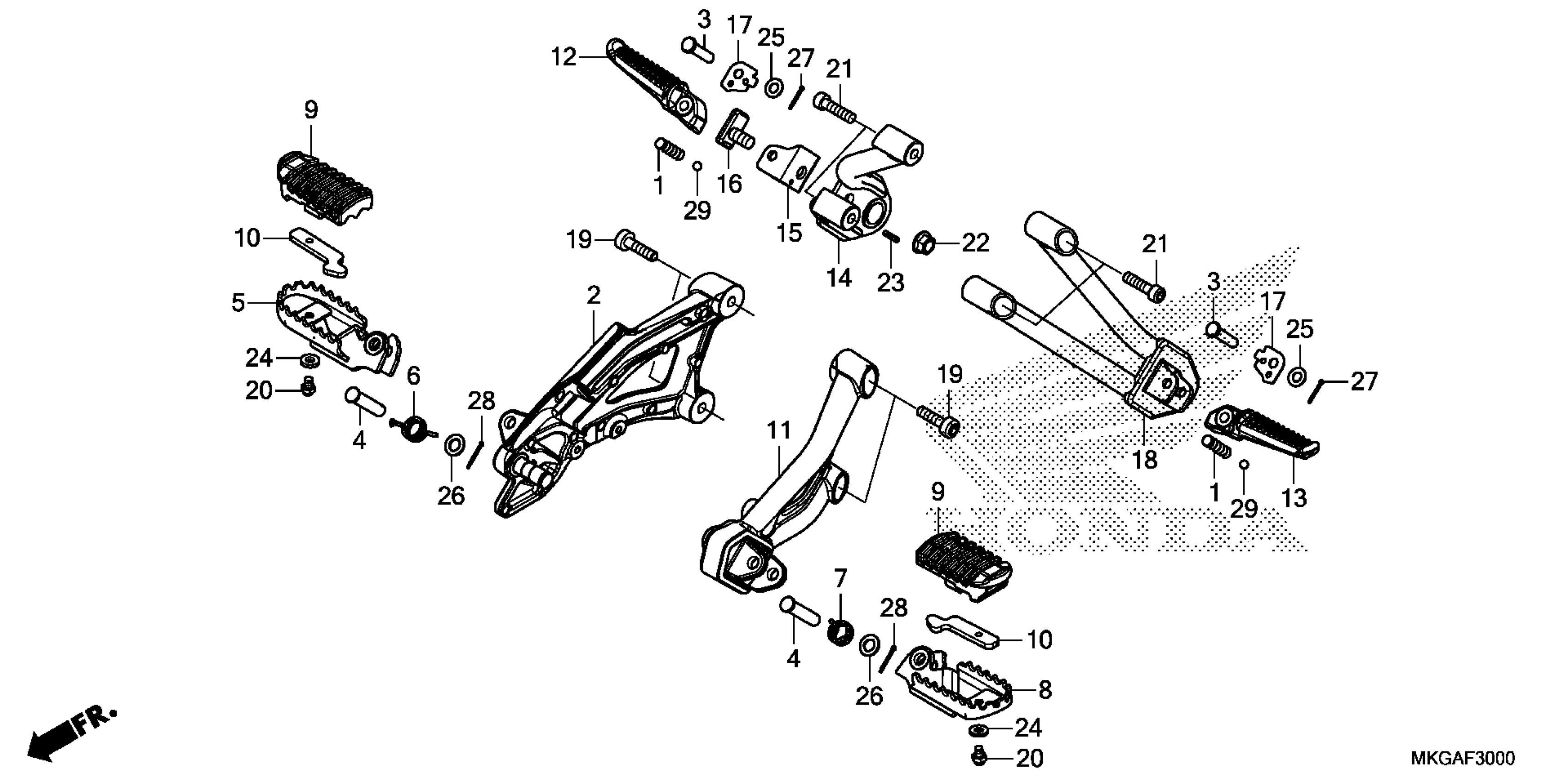

Honda CMX500AC (22) MOTORCYCLE, THA, VIN# MLHPC561-N5500001 STEP Diagram

#

Description
Price

2

HOLDER, R. STEP

50600-K87-A00

$46.60

4

PIN, STEP JOINT

50603-K87-A00

$2.79

5

STEP, R.

50616-K87-A30

$10.92

6

SPRING, R. STEP RETURN

50617-K87-A00

$2.18

7

SPRING, L. STEP RETURN

50618-K87-A00

$2.18

8

STEP, L.

50642-K87-A30

$10.82

9

RUBBER, STEP

50661-K87-A00

$3.88

10

PLATE, STEP RUBBER SETTING

50662-K87-A00

$2.62

11

HOLDER, L. STEP

50700-K87-A00

$37.02

14

HOLDER, R. PILLION STEP

50715-K87-A00

$53.97

19

BOLT, SOCKET (8X32)

90116-K87-A00

$1.49

20

BOLT, CAP (6X8)

90118-K87-A00

$1.49

21

BOLT, SOCKET (8X32)

90155-K87-A00

$1.49

24

WASHER, PLAIN (6MM)

94101-06700

$1.49

26

WASHER, PLAIN (10MM)

94102-10000

$1.49

28

PIN, COTTER (2.0X22) This part replaces 94201-20180.

94201-29220

$1.49

28

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$1.49

28

PIN, COTTER (2.0X22) PIN, COTTER (2.0X25)

94201-20220

$1.49

28

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

28

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

28

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

28

PIN, COTTER (2.0X35) PIN, COTTER (2.0X22)

94201-20350

$1.49

28

PIN, COTTER (2.0X22)

94201-29220

$1.49
