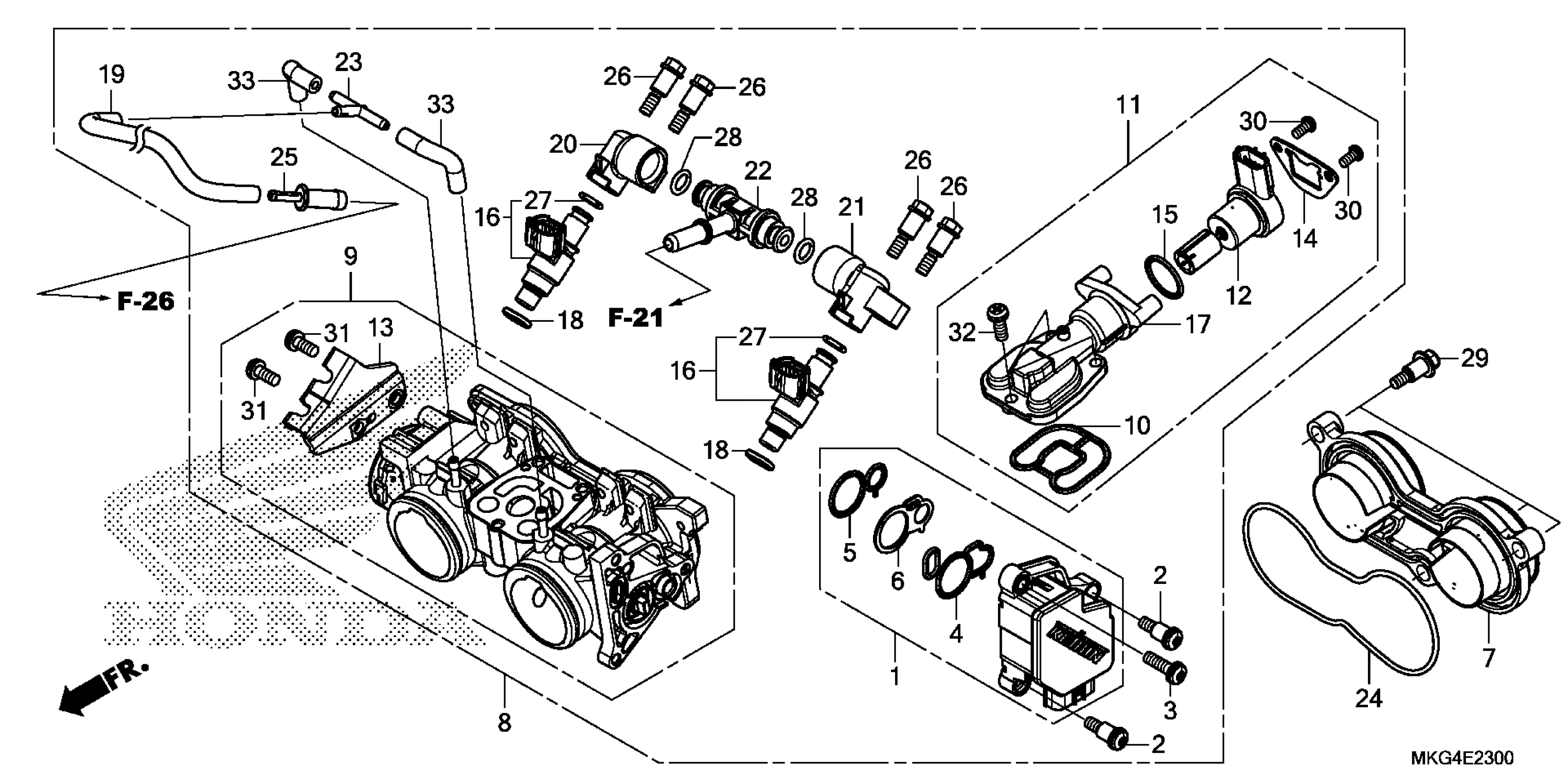

Honda CMX500AC (19) MOTORCYCLE, THA, VIN# MLHPC561-K5200001 THROTTLE BODY Diagram

SENSOR SET

16060-MKG-L01

$76.22

SCREW, TORX (5X8.7)

16081-KPH-701

$2.89

SCREW, TORX (5X17)

16082-KPH-701

$4.87

O-RING, SENSOR

16083-MGZ-D01

$2.41

O-RING, SENSOR

16084-MGZ-D01

$2.41

PLATE

16085-MGZ-D01

$2.24

PLATE, FUNNEL SETTING

16188-MKG-A00

$9.62

BODY ASSY., THROTTLE (BUA A)

16400-MKG-L01

$713.62

BODY ASSY., THROTTLE (GQBUA A)

16400-MKG-L02

$713.62

BODY SET

16410-MJW-J01

$176.25

BODY SET

16410-MKG-L01

$412.81

O-RING, AIR INJECTION CONTROL VALVE

16428-MGZ-D01

$22.57

VALVE SET, IDLE AIR CONTROL

16430-MJW-J01

$211.65

MOTOR ASSY.

16431-MJP-G51

$67.12

STAY, WIRE

16432-MGZ-D01

$35.96

PLATE, IDLE AIR CONTROL VALVE

16433-MEW-921

$9.56

O-RING (17.8X1.9)

16435-MFJ-D01

$2.81

INJECTOR ASSY., FUEL

16450-MFJ-D01

$171.92

BODY, IDLE AIR CONTROL VALVE

16451-MGZ-D01

$160.78

SEAL RING, INJECTOR

16472-MCW-000

$2.21

TUBE, PURGE

16482-MKG-L01

$16.50

PIPE, FUEL (A)

16610-MGZ-D01

$79.47

PIPE, FUEL (B)

16620-MGZ-D01

$79.47

T-JOINT, FUEL

16630-MFJ-D00

$20.32

JOINT, VACUUM TUBE (A)

17201-MG9-000

$14.63

SEAL, THROTTLE BODY

17215-MGZ-D00

Unavailable

JOINT, TUBE

19126-KM1-010

$3.50

BOLT, SHOULDER

90021-MGZ-D02

$2.68

O-RING (7.8X1.9)

91301-P7A-004

$3.21

O-RING (7.47X3.6)

91301-PLC-000

$2.96

SCREW, PAN (5MM)

91508-MM5-000

$3.90

SCREW, PAN (4X8)

93500-04008-0H

$0.84

SCREW, PAN (4X8) This part replaces 93500-04008-1H.

93500-04008-0H

$0.84

SCREW-WASHER (5X12) (Honda Code 0368621)

93892-05012-08

$1.06

SCREW-WASHER (5X12) This part replaces 93892-05012-18.

93892-05012-08

$1.06

SCREW-WASHER (5X14)

93892-05014-08

$1.01

SCREW-WASHER (5X14) This part replaces 93892-05014-18.

93892-05014-08

$1.01

BULK HOSE, VACUUM (3.5X1000) (3.5X130) (BULK HOSE: 95005-35008-10M)

95005-35001-20M

$11.17
