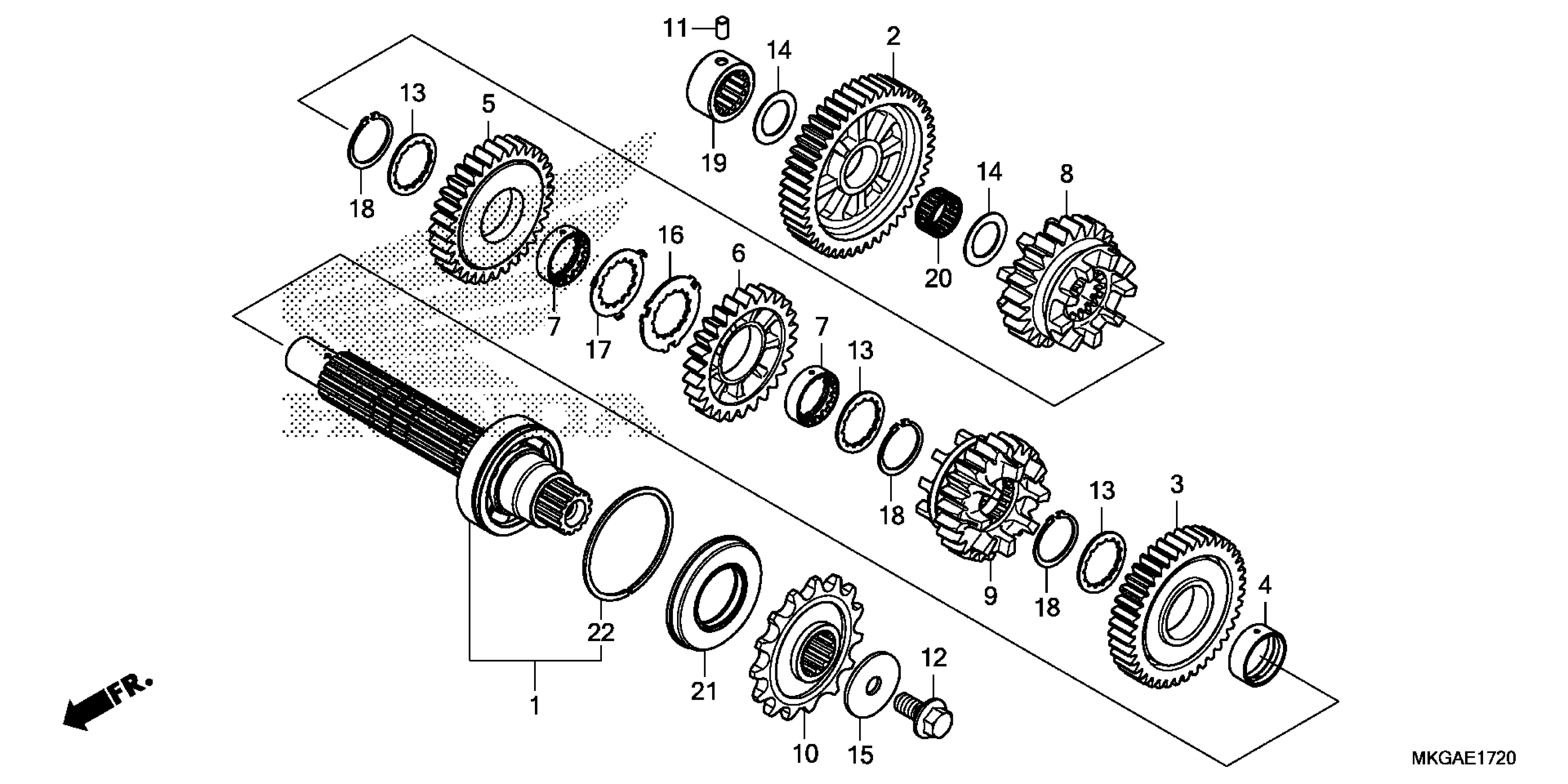

Honda CMX500AAC (22) MOTORCYCLE, THA, VIN# MLHPC565-N5500001 TRANSMISSION (COUNTERSHAFT) Diagram

COUNTERSHAFT

23220-MGZ-J01

$135.05

GEAR, COUNTERSHAFT FIRST (46T)

23421-MKP-D00

$55.02

GEAR, COUNTERSHAFT SECOND (40T)

23441-MKP-D00

$59.51

COLLAR (28MM)

23442-ML7-000

$27.93

GEAR, COUNTERSHAFT THIRD (32T)

23461-MKP-D00

$55.02

GEAR, COUNTERSHAFT FOURTH (26T)

23481-MKP-D00

$52.72

COLLAR, SPLINE (28X31X9)

23482-MV9-670

$19.18

GEAR, COUNTERSHAFT FIFTH (23T)

23501-MKP-D00

$75.66

GEAR, COUNTERSHAFT SIXTH (24T)

23521-MKP-D00

$71.23

SPROCKET, DRIVE (15T)

23801-MKP-D00

$20.83

PIN, GEARSHIFT FORK GUIDE

24261-283-000

$4.21

BOLT, SPECIAL (10MM)

90037-422-003

$7.32

WASHER, SPLINE (28X34X1.5)

90452-MR7-000

$6.33

WASHER, THRUST (20X1.00)

90454-428-000

$2.53

WASHER (10.2MM)

90459-438-000

$5.83

WASHER, SPLINE (28MM)

90463-MR7-000

$10.57

WASHER, LOCK (28MM)

90464-MR7-000

$10.57

CIRCLIP (28MM)

90603-MN4-000

$4.11

BEARING, NEEDLE (20X34X16.8) (NTN)

91023-MKP-D01

$34.39

BEARING, NEEDLE (20X24X11)

91026-MGZ-J00

$13.05

BEARING (20X24X11)

91026-MKP-DN1

$15.82

OIL SEAL (34X62X8)

91207-KT8-003

$12.78

RING, SNAP (62MM)

94560-62200

$3.31
