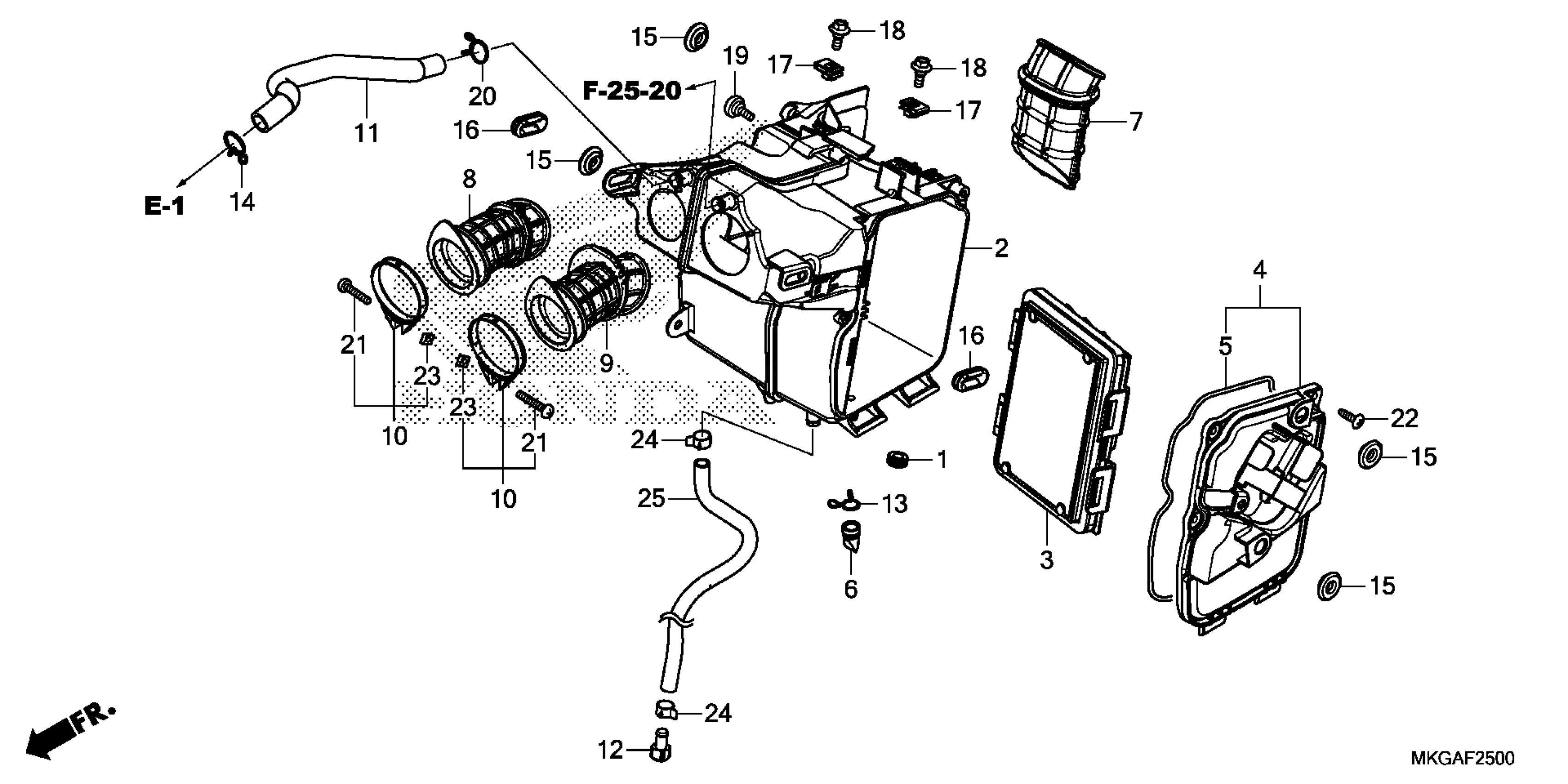

Honda CMX500AAC (22) MOTORCYCLE, THA, VIN# MLHPC565-N5500001 AIR CLEANER Diagram

#

Description
Price

1

GROMMET A, RR. COVER (8X16X6.6) (FR.)

11344-MB0-000

$2.75

2

HOUSING, AIR CLEANER

17210-MKG-A00

$22.72

3

ELEMENT, AIR CLEANER

17220-KZZ-900

$16.26

4

COVER, AIR CLEANER

17230-K87-A00

$8.64

5

SEAL, AIR CLEANER

17232-K87-A00

$2.21

6

TUBE, AIR CLEANER DRAIN

17234-KCW-871

$2.57

7

DUCT, AIR CLEANER

17241-MKG-A00

$12.74

8

TUBE, R. CONNECTING

17251-MKG-A00

$17.90

9

TUBE, L. CONNECTING

17252-MKG-A00

$18.28

10

BAND, AIR CLEANER CONNECTING TUBE (50)

17255-MKG-A00

$2.97

11

TUBE, BREATHER

17265-MKG-A00

$8.80

12

PLUG, BREATHER TUBE

17370-419-700

$3.74

13

CLIP, BREATHER TUBE

17371-174-670

$2.20

14

CLIP, SUB-TANK HOSE

17724-102-700

$4.51

15

GROMMET, SIDE COVER

83551-376-000

$2.97

16

GROMMET A, SIDE COVER

83601-MB0-000

$4.53

17

NUT, FENDER SETTING (6MM)

84601-HC4-000

$4.28

18

BOLT, FLANGE (6MM)

90109-KZZ-900

$1.49

19

SCREW (6X13)

90121-K87-A00

$1.49

20

CLIP, AIR HOSE (16MM)

90646-657-000

$7.32

21

SCREW, PAN (4X30)

93500-04030-0G

$3.69

22

SCREW, TAPPING (5X20)

93903-25480

$1.49

23

NUT, SQUARE WELDING (4MM)

94061-04001

$1.49

24

CLAMP, TUBE (D12)

95002-41200-08

$2.34

25

BULK HOSE, VINYL (8X12X8000) (Honda Code 4825345) (8X12X600)

95003-23008-60M

Unavailable
