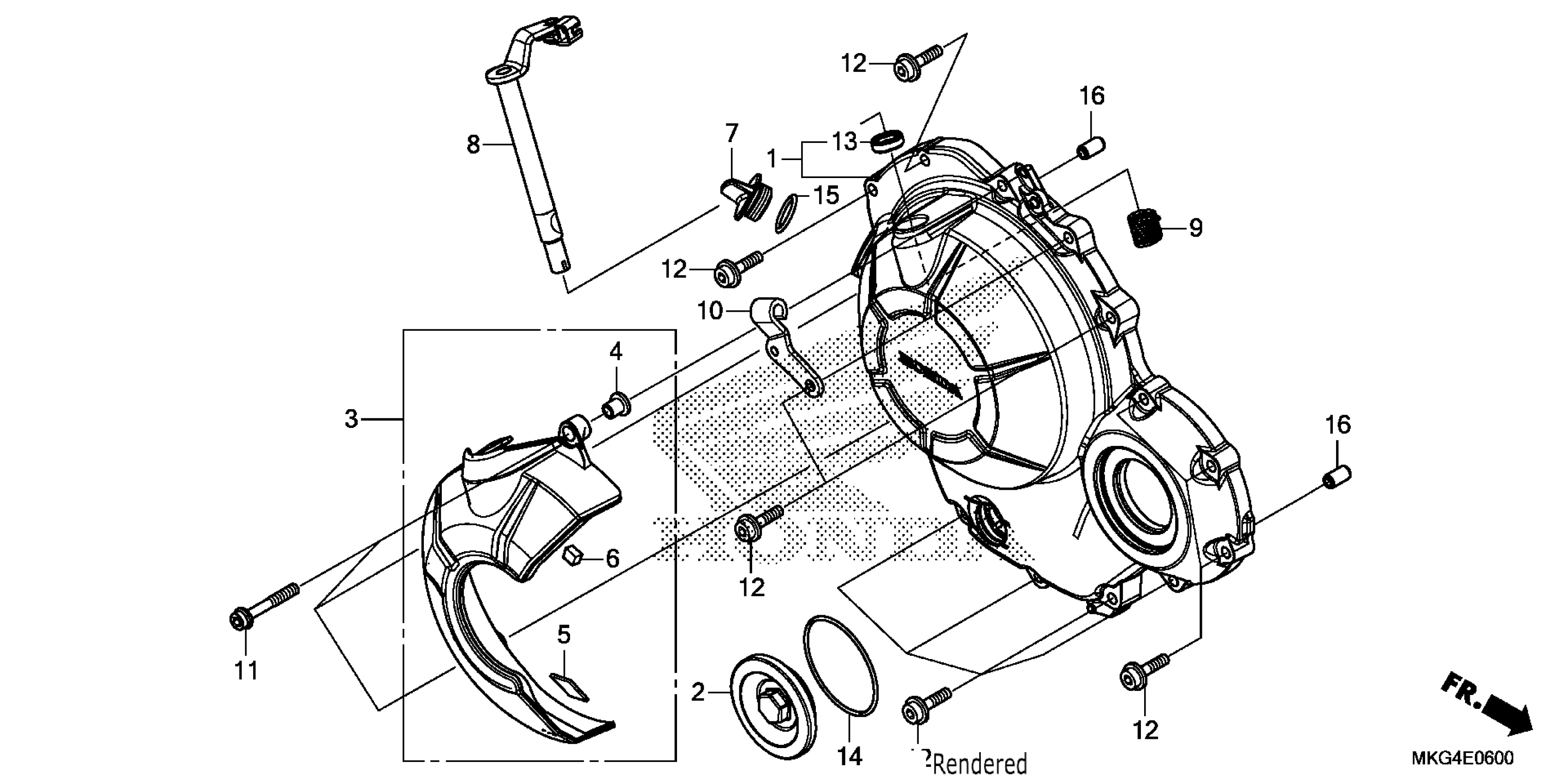

Honda CMX500AAC (19) MOTORCYCLE, THA, VIN# MLHPC565-K5200001 RIGHT CRANKCASE COVER Diagram

COVER, R. CRANKCASE

11330-MJW-J80

$77.74

CAP (45MM)

11332-MGZ-J00

$19.86

COVER, R. ENGINE SIDE

11380-MKG-A00

$35.03

COLLAR (6.5X10.5)

11382-MKG-A00

$1.64

RUBBER A, R. COVER

11387-MKG-A00

$3.64

RUBBER B, R. COVER

11391-MKG-A00

$3.07

CAP, OIL FILLER

15611-KA4-710

$12.93

LEVER, CLUTCH

22810-MGZ-J00

$29.35

SPRING, CLUTCH LEVER

22815-413-000

$2.87

RECEIVER, CLUTCH CABLE

22821-MGZ-J00

$9.93

BOLT, FLANGE SOCKET (6X40)

90002-MJE-D00

$0.97

BOLT, FLANGE SOCKET (6X28)

90003-MGZ-J00

$0.59

OIL SEAL (12X18X5) (ARAI)

91204-KK0-003

$4.70

O-RING (48.1X3.6) (ARAI)

91301-ML7-003

$3.66

O-RING (18X3)

91307-035-000

$2.71

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.04
