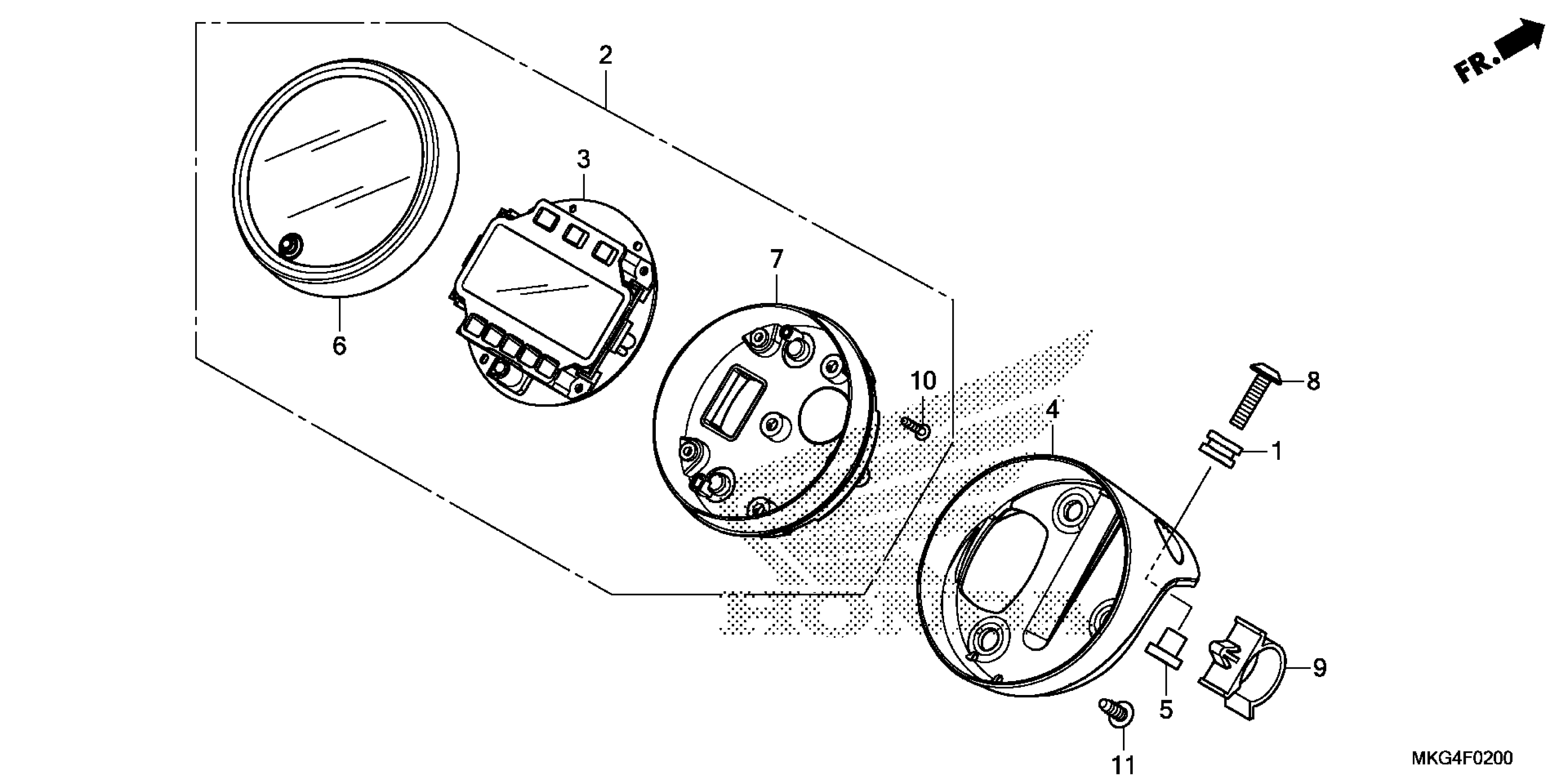

Honda CMX500AAC (18) MOTORCYCLE, THA, VIN# MLHPC565-J5100001 TO MLHPC565-J5199999 SPEEDOMETER Diagram

#

Description

Price

1

RUBBER, L. SIDE COVER (OUTER)

11356-KWN-700

$1.83

2

METER ASSY. COMB This part replaces 37100-MKG-L51.

37100-MKG-L54

$182.33

2

METER ASSY. COMB This part replaces 37100-MKG-L52.

37100-MKG-L54

$182.33

2

METER ASSY. COMB This part replaces 37100-MKG-L53.

37100-MKG-L54

$182.33

3

METER, LCD (MPH/KPH)

37130-MKG-L51

$172.94

4

STAY, METER

37210-K87-A00

$19.15

5

COLLAR, METER STAY

37211-K87-A00

$1.64

6

CASE ASSY. (UPPER)

37610-MKG-L51

$50.01

7

CASE LOWER ASSY. This part replaces 37620-MKG-A01.

37620-MKG-A02

$19.39

7

CASE LOWER ASSY.

37620-MKG-A02

$19.39

8

SCREW, PAN (6X25)

90135-K87-A00

$0.65

9

HOLDER (26MM)

90617-RGH-003

$6.90

10

SCREW, TAPPING (3X16)

93903-224J0

$0.49

11

SCREW, TAPPING (5X16)

93903-25380

$0.83
