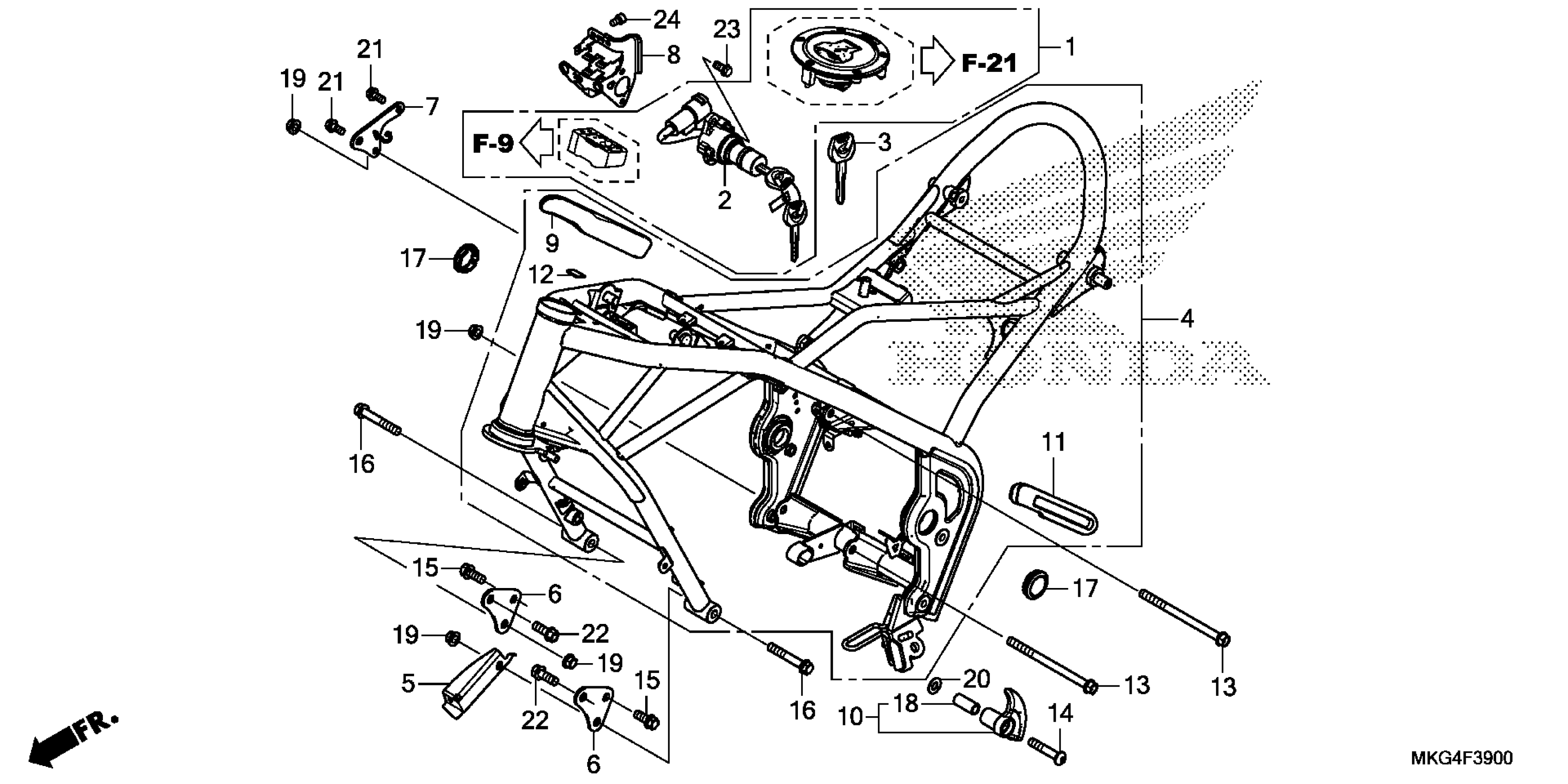

Honda CMX500AAC (18) MOTORCYCLE, THA, VIN# MLHPC565-J5100001 TO MLHPC565-J5199999 FRAME Diagram

#

Description
Price

1

LOCK SET This part replaces 35010-K87-A00.

35010-K87-A02

$257.69

1

LOCK SET This part replaces 35010-K87-A01.

35010-K87-A02

$257.69

2

SWITCH ASSY., COMBINATION (HONDALOCK)

35100-K87-A01

$89.82

3

KEY, BLANK (TYPE1) | (Optional).

35121-MAS-G01

$12.74

4

FRAME SET *NH1* (BLACK)

50010-MKG-A00ZA

$924.38

5

STAY, HORN

50170-MKG-A00

$17.07

6

PLATE, FR. ENGINE HANGER

50201-MKG-A00

$7.39

7

PLATE C, ENGINE HANGER

50202-MKG-A00

$13.54

8

STAY, COMBINATION SWITCH

53180-K87-A00

$20.10

9

GUARD, R. HEAT

64311-MKG-A00

$19.39

10

GUARD, HEAT

64312-MKG-A00

$13.97

11

GUARD, L. HEAT

64321-MKG-A00

$12.87

12

EMBLEM, PRODUCT (MARUI)

86150-KPG-901

$3.62

13

BOLT, FLANGE (10X145)

90103-MKG-A00

$3.20

14

BOLT, SOCKET (10X54)

90107-MGR-670

$4.03

15

BOLT, FLANGE (10X25)

90165-GHB-670

$1.49

16

BOLT, FLANGE (10X65)

90165-GHB-760

$2.00

17

CAP, PIVOT

90307-K87-A00

$3.90

18

COLLAR (15X33.5)

90510-MKG-A00

$3.07

19

NUT, FLANGE (10MM)

90303-428-900

$3.35

19

NUT, FLANGE (10MM) This part replaces 94050-10070.

90303-428-900

$3.35

20

WASHER, PLAIN (10MM)

94101-10700

$1.49

21

BOLT, FLANGE (8X18)

95701-08018-07

$1.49

22

BOLT, FLANGE (10X28)

95701-10028-07

$1.49

23

BOLT, FLANGE (6X14)

96001-06014-07

$1.49

24

BOLT, SOCKET (6X10)

96600-06010-08

$1.49
