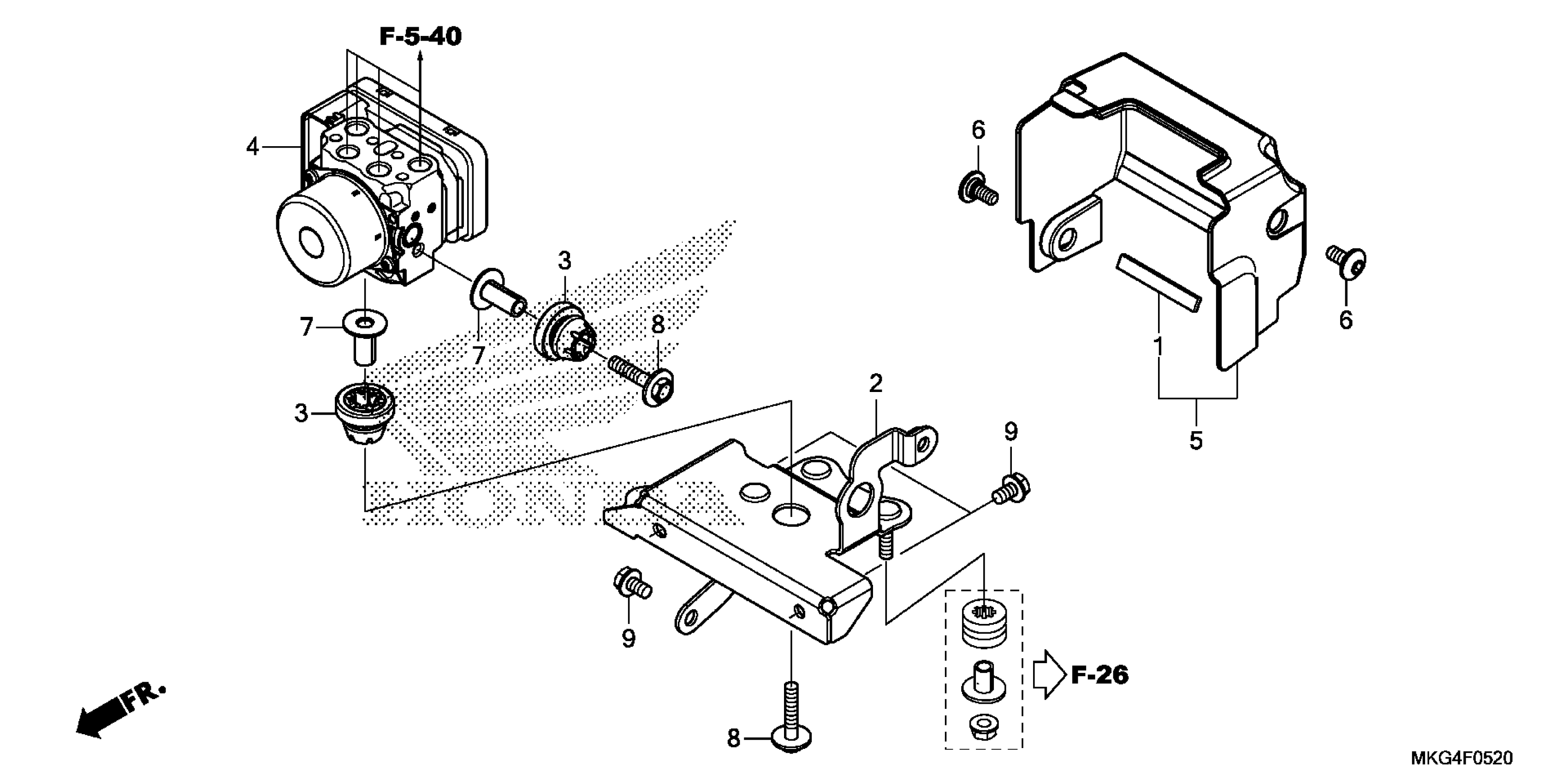

Honda CMX500AAC (17) MOTORCYCLE, THA, VIN# MLHPC565-H5000001 TO MLHPC565-H5099999 ABS MODULATOR Diagram

RUBBER, RR. FRAME

50242-K87-A00

$1.49

STAY, ABS MODULATOR

50345-K87-L50

$39.21

RUBBER, MOUNT

57101-SJA-003

$8.72

MODULATOR ASSY.

57110-K87-L52

$1,157.90

COVER, ABS MODULATOR

61410-K87-L50

$25.75

SCREW, SPECIAL (6X14)

90111-K87-A00

$1.49

COLLAR (6.2X20)

90502-KPH-900

$1.49

BOLT-WASHER (6X32)

93404-06032-00

$1.49

BOLT, FLANGE (6X10) BOLT, FLANGE (6X12)

95701-06010-00

$1.49
