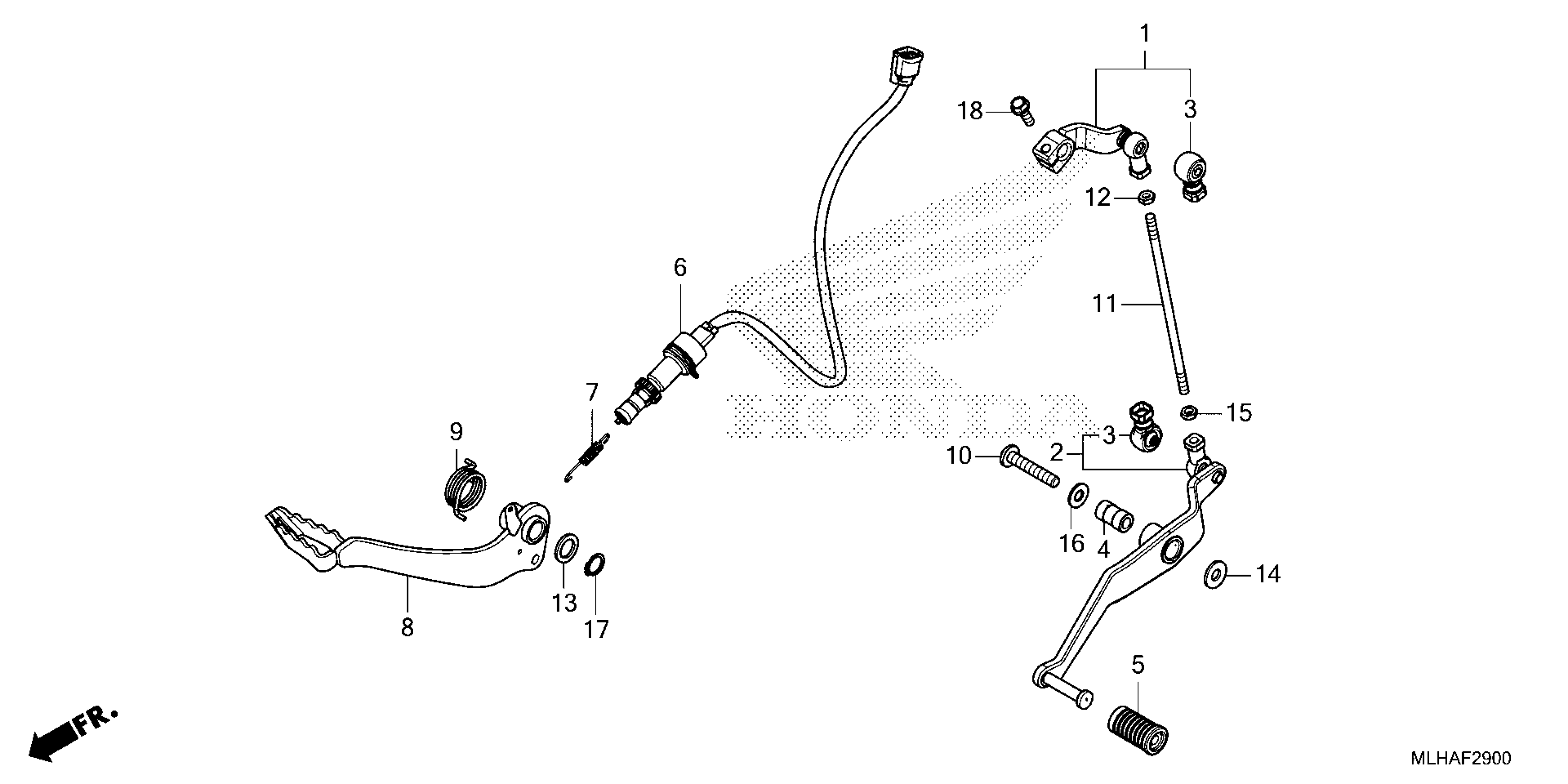

Honda CMX500AA (25) MOTORCYCLE, THA, VIN# MLHPC564-S5400001 TO MLHPC564-S5499999 PEDAL Diagram

ARM, GEARSHIFT (COO) This part replaces 24710-MGZ-J00.

24710-MGZ-305

$15.54

ARM, GEARSHIFT (COO)

24710-MGZ-305

$15.54

PEDAL, GEARSHIFT

24720-MKG-A00

$41.69

COVER, DUST

24724-MBW-D21

$6.66

COLLAR, GEARSHIFT PEDAL PIVOT

24731-K87-A00

$2.92

RUBBER, GEARSHIFT PEDAL

24781-KR3-770

$3.23

SWITCH, RR. STOP

35350-K2Y-J41

$20.49

SPRING, STOP SWITCH

35357-K26-900

$0.75

PEDAL, RR. BRAKE

46501-K87-A30

$16.25

SPRING, BRAKE PEDAL

46514-K87-A00

$2.82

BOLT, SOCKET SPECIAL (8X45)

90110-K87-A00

$0.91

BOLT, TIE ROD

90165-MKG-A00

$4.75

NUT, SPECIAL (6MM) (LEFT HAND THREAD)

90301-MGZ-J00

$2.10

WASHER (14MM)

90451-GBL-870

$2.80

WASHER (8.5X20)

90526-K87-A00

$1.00

NUT, HEX. (6MM)

94001-06070-0S

$1.31

WASHER, PLAIN (8MM)

94101-08000

Unavailable

CIRCLIP (OUTER) (14MM)

94511-14000

$0.79

BOLT, FLANGE (6X20)

95701-06020-07

Unavailable
