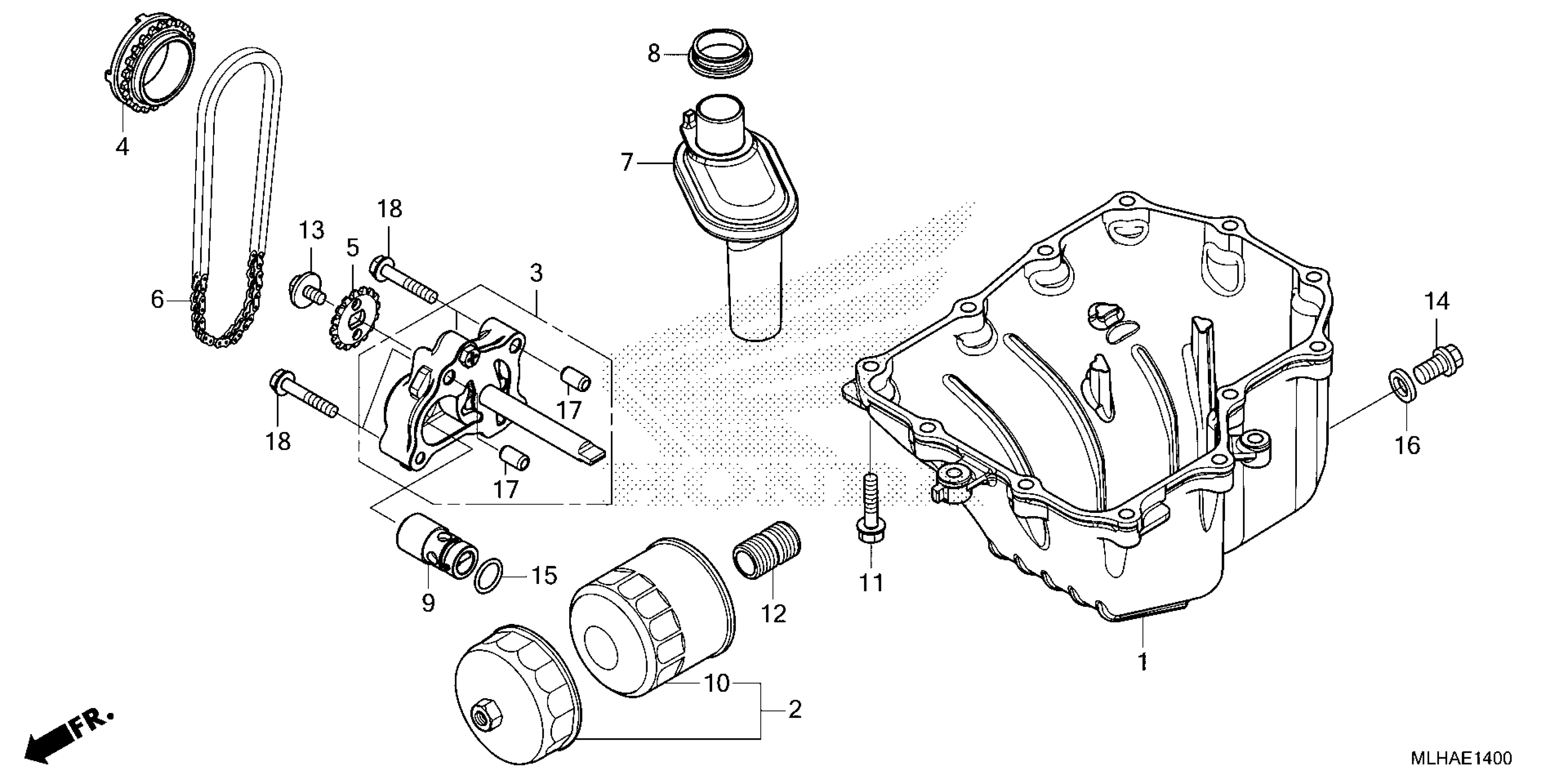

Honda CMX500AA (25) MOTORCYCLE, THA, VIN# MLHPC564-S5400001 TO MLHPC564-S5499999 OIL PAN@OIL PUMP Diagram

PAN, OIL (NOT AVAILABLE)

11210-MLH-A40

$54.38

FILTER SET, OIL | (Optional).

15010-MKR-305

$17.70

PUMP ASSY., OIL

15100-MGZ-J00

$82.81

SPROCKET, OIL PUMP DRIVE (22T)

15131-MKP-D01

$33.38

SPROCKET, OIL PUMP DRIVEN (16T)

15134-MGZ-J00

$12.55

CHAIN (RK 25H-56LE)

15141-MLH-A01

$7.13

STRAINER, OIL

15150-MGZ-J00

$11.99

GASKET, OIL STRAINER

15154-MAT-000

$5.73

VALVE ASSY., RELIEF

15220-MGZ-J00

$35.81

FILTER, OIL (WAKO FILTER)

15410-MFJ-D02

$13.80

BOLT, FLANGE (6X28)

90010-MGZ-J00

$0.43

BOSS, OIL FILTER

90019-MGZ-J00

$2.06

BOLT-WASHER (6X12)

90021-MGZ-J00

$3.74

BOLT, DRAIN PLUG (12X15) This part replaces 90131-883-000.

90131-896-650

$2.00

BOLT, DRAIN PLUG (12X15)

90131-896-650

$2.00

O-RING (14.8X2.2) This part replaces 91313-MB0-003.

91313-MG7-004

$3.42

O-RING (14.8X2.2) (Honda Code 3353620)

91313-MG7-004

$3.42

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.12

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.04

BOLT, FLANGE (6X35)

95701-06035-00

$1.71
