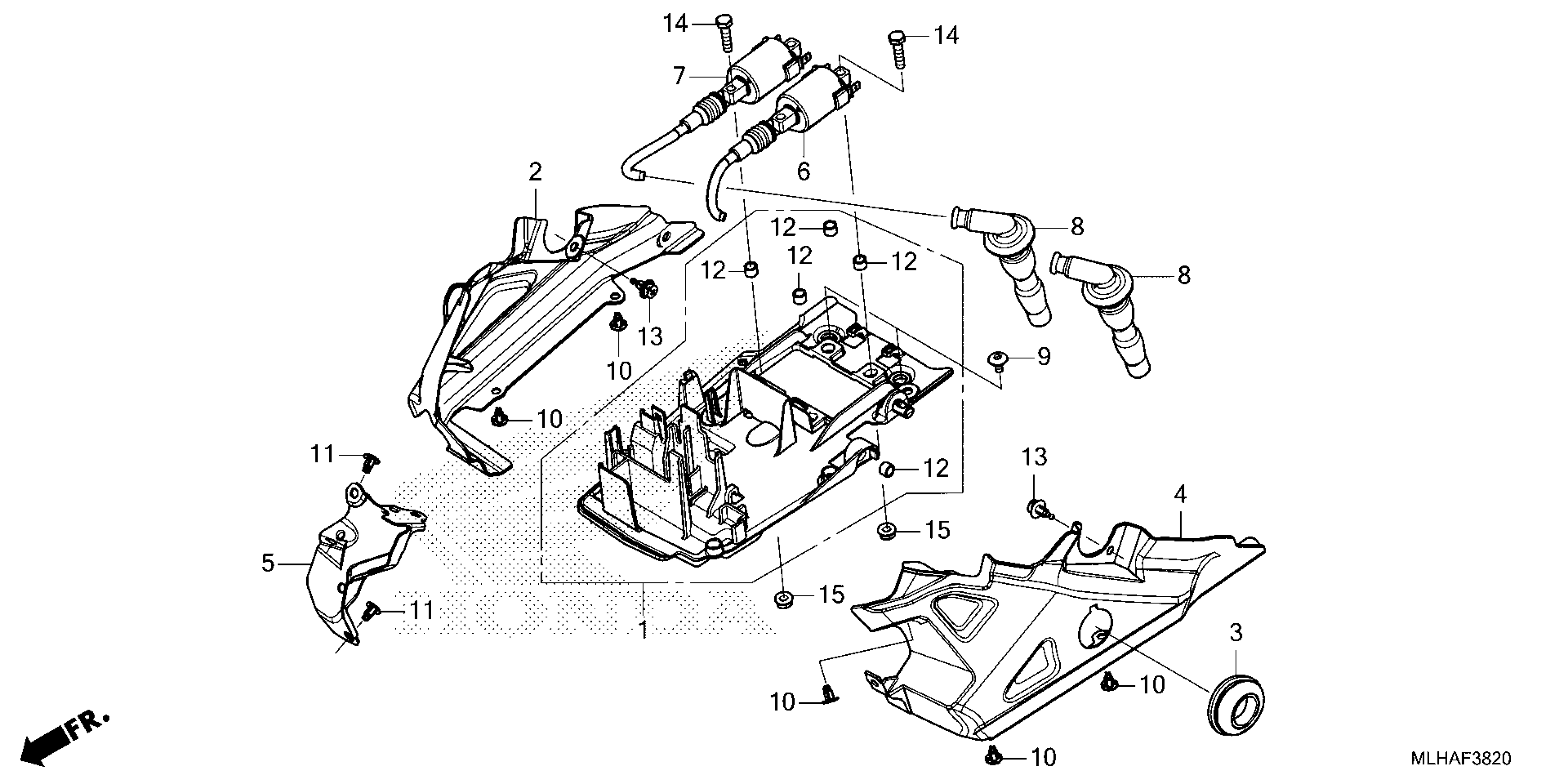

Honda CMX500AA (25) MOTORCYCLE, THA, VIN# MLHPC564-S5400001 TO MLHPC564-S5499999 IGNITION COIL Diagram

#

Description

Price

1

TRAY, IGNITION COIL

19125-MLH-A00

$28.90

2

COVER, R. IGNITION COIL TRAY

19130-K87-A30

$6.49

3

COVER, KEY

19131-K87-A00

$2.21

4

COVER, L. IGNITION COIL TRAY

19135-K87-A30

$6.41

5

COVER, CENTER IGNITION TRAY

19140-K87-A30

$4.77

6

COIL, IGNITION (#1)

30510-MKG-A31

$23.79

7

COIL, IGNITION (#2)

30520-MKG-A31

$24.10

8

CAP ASSY., NOISE SUPPRESSOR

30700-K87-A01

$40.43

9

SCREW, SPECIAL (5X11)

90114-KPH-700

$1.49

10

RIVET, PUSH (6MM)

90116-K0A-E11

$1.49

11

CLIP, BUMPER SEAL

90116-SP0-003

$4.86

12

COLLAR, IGNITION COIL TRAY

90504-K87-A30

$1.49

13

CLIP, BODY

90683-MBW-003

$2.16

14

BOLT, HEX. (6X25) BOLT-WASHER (6X25)

92101-06025-0A

$1.62

15

NUT, FLANGE (6MM)

94050-06080

$1.49
