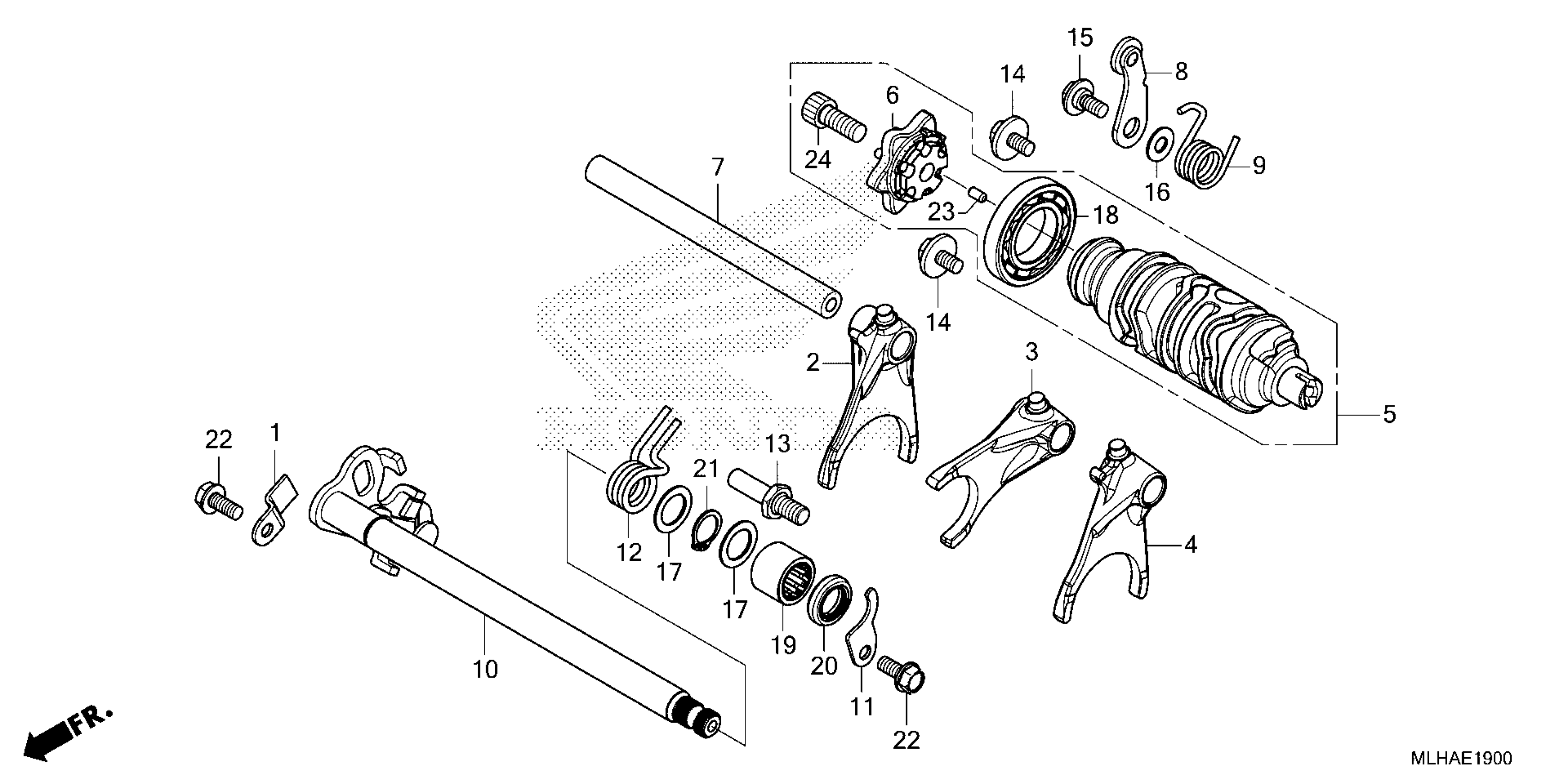

Honda CMX500AA (25) MOTORCYCLE, THA, VIN# MLHPC564-S5400001 TO MLHPC564-S5499999 GEARSHIFT DRUM Diagram

PLATE, TENSIONER SETTING

14623-MV1-000

$4.54

FORK, R. GEARSHIFT

24211-MGZ-J00

$22.59

FORK, CENTER GEARSHIFT

24212-MGZ-J00

$22.33

FORK, L. GEARSHIFT

24213-MGZ-J00

Unavailable

DRUM, GEARSHIFT

24310-MLH-A40

$47.65

CENTER, SHIFT DRUM

24315-MLR-D00

$15.07

SHAFT, GEARSHIFT FORK

24321-MAS-000

$20.35

STOPPER, GEARSHIFT DRUM

24430-MGZ-J00

$7.51

SPRING, SHIFT DRUM STOPPER

24435-MJE-D00

$1.59

SPINDLE, GEARSHIFT

24610-MGZ-J00

$38.71

PLATE, SPINDLE

24612-MAL-600

$8.88

SPRING, SHIFT RETURN

24651-MAS-E00

$5.48

PIN, SHIFT RETURN SPRING

24652-MGZ-J00

$1.52

BOLT-WASHER (6X12)

90021-MGZ-J00

$3.74

PIVOT, SHIFT DRUM STOPPER ARM

90023-MGZ-J00

$0.54

WASHER, DRUM STOPPER

90417-360-000

$1.58

WASHER (14MM)

90451-155-000

$3.52

BEARING, RADIAL BALL (25X47X8)

91007-MGS-D21

$15.75

BEARING, RADIAL BALL (25X47X8) This part replaces 91007-MGS-D31.

91007-MGS-D21

$15.75

BEARING, NEEDLE (14X22X16)

91106-MCF-003

$10.30

OIL SEAL (14X22X5) (ARAI)

91203-KSP-911

$1.81

CIRCLIP (OUTER) (14MM)

94510-14000

$0.93

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$0.91

ROLLER (4X8)

96220-40080

$0.46

BOLT, SOCKET (8X20)

96600-08020-10

$1.94
