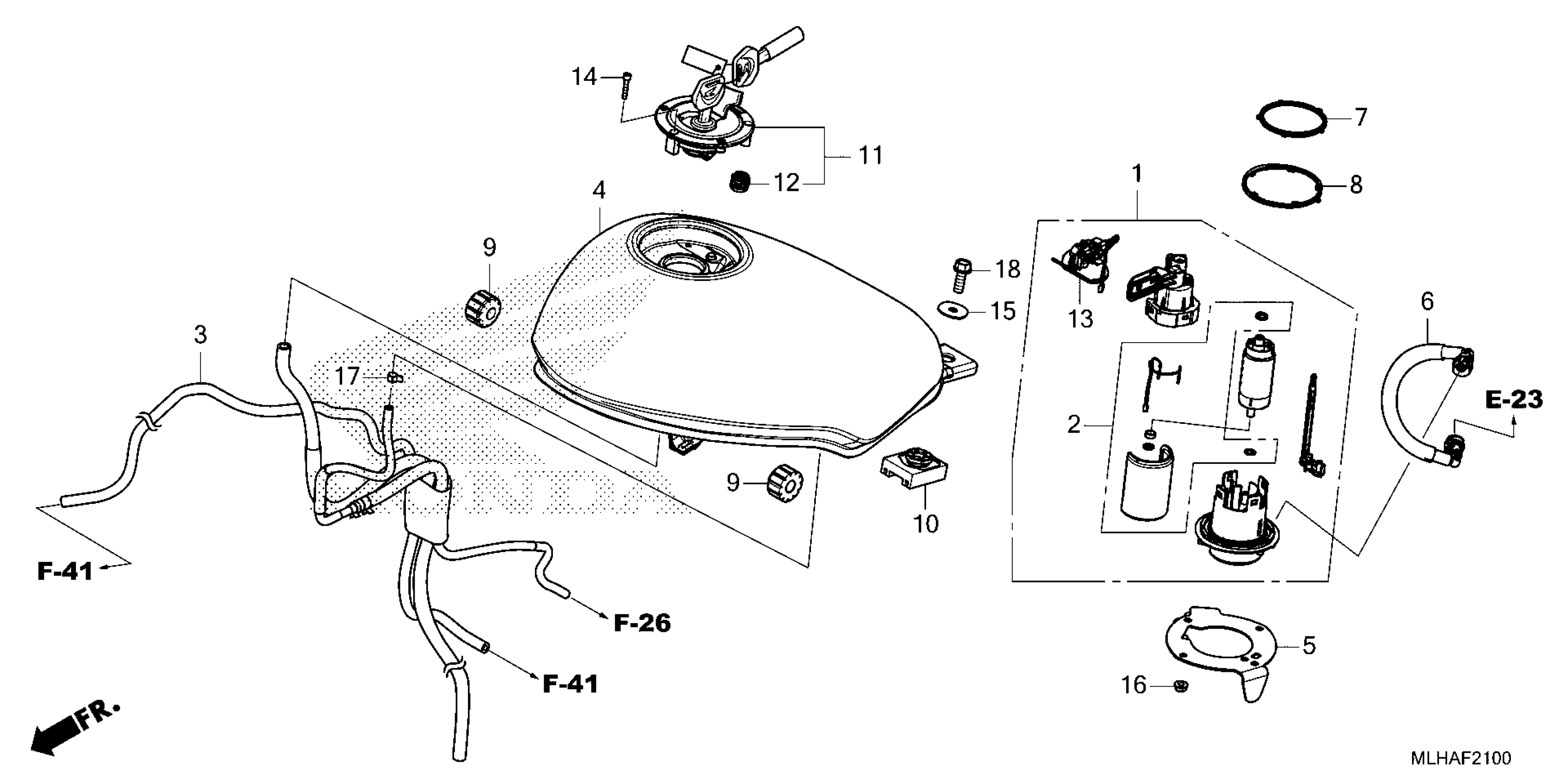

Honda CMX500AA (25) MOTORCYCLE, THA, VIN# MLHPC564-S5400001 TO MLHPC564-S5499999 FUEL TANK@FUEL PUMP Diagram

Description

Price

PUMP ASSY., FUEL

16700-MLH-D41

$103.13

FILTER SET

16707-K45-N01

$24.22

TUBE ASSY.

17417-MKG-A00

$78.59

TANK, FUEL (TYPE1)

17520-K2Y-J40ZJ

$238.74

TANK, FUEL (TYPE3)

17520-K2Y-J40ZG

Unavailable

PLATE, SETTING

17526-K87-A00

$9.77

HOSE, FUEL FEED (NOT AVAILABLE)

17570-MLH-D41

$18.13

GASKET, FUEL PUMP

17572-GHB-613

$17.55

DUST SEAL

17573-KPN-A71

$12.89

CUSHION, FR. FUEL TANK

17611-KPK-900

$2.13

CUSHION, RR.

17613-K3S-JA0

$5.03

CAP COMP

17620-KZZ-J03

$199.00

SEAL, BREATHER

17621-MGP-D62

$5.14

FUEL UNIT (NIPPON SEIKI)

37800-K87-A01

$39.97

BOLT, SOCKET (4X25) (SUS)

90120-MJE-D00

$1.49

WASHER, PLAIN (8MM)

90325-KCC-900

$4.10

NUT, FLANGE (6MM)

94050-06000

$1.49

BOLT, FLANGE (8X22)

95701-08022-00

$2.16
