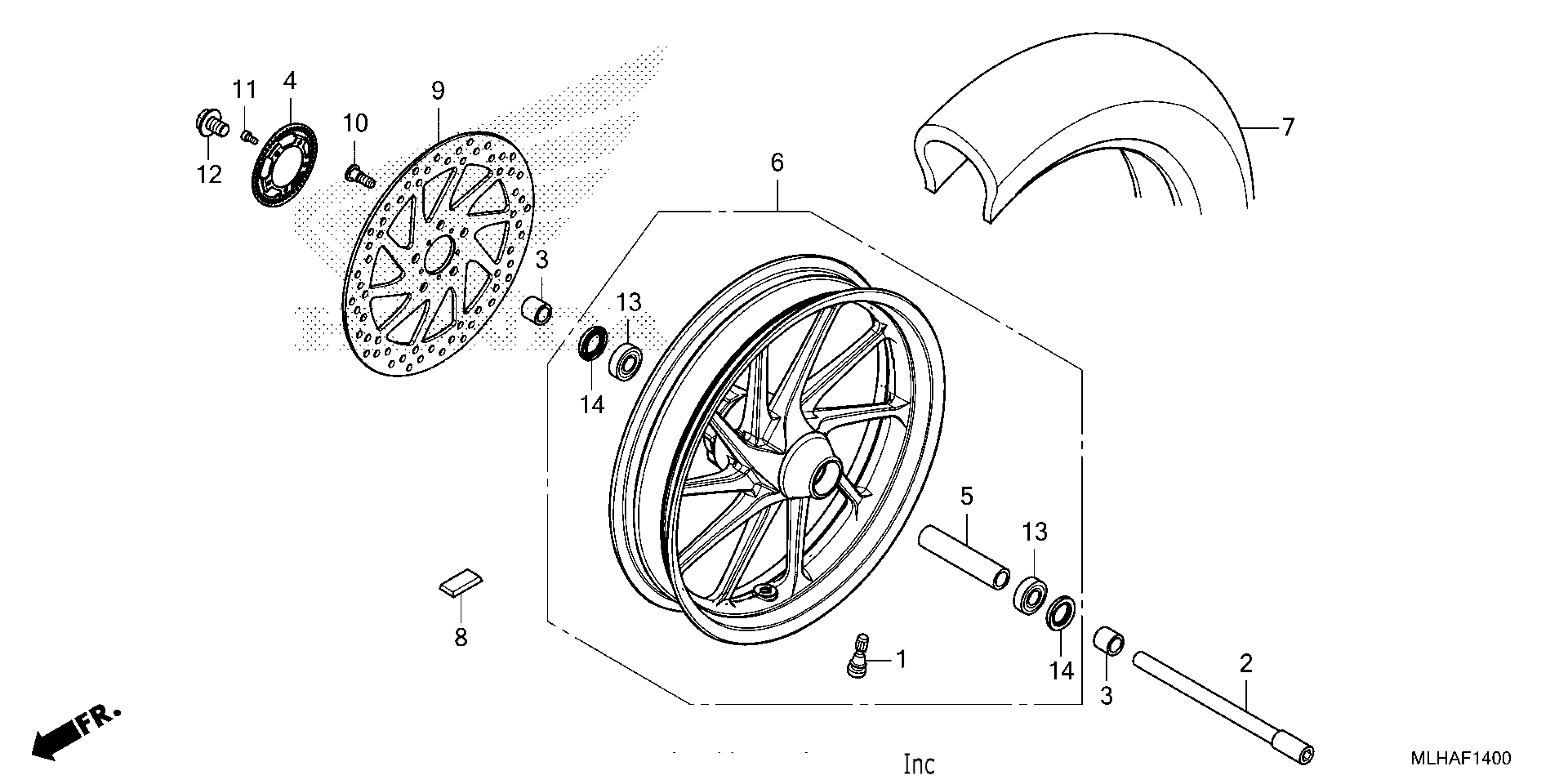

Honda CMX500AA (25) MOTORCYCLE, THA, VIN# MLHPC564-S5400001 TO MLHPC564-S5499999 FRONT WHEEL Diagram

VALVE, RIM (IRC)

42753-GM9-743

$8.68

AXLE, FR. WHEEL

44301-K87-A00

$24.69

COLLAR, FR. WHEEL SIDE

44311-MGZ-J00

$12.67

RING, FR. PULSER

44515-K2Y-A00

$17.26

COLLAR, FR. WHEEL DISTANCE

44620-K87-A00

$12.72

WHEEL SUB-ASSY., FR.

44650-K2Y-J40

$218.99

TIRE, FR. (130/90-16 M/C 67H) (IRC)

44711-K2Y-J41

$169.76

TIRE, FR. (130/90-16 M/C 67H) (DUNLOP)

44711-K87-A31

$133.15

WEIGHT, BALANCE (10G)

44721-MLN-EQ1

Unavailable

WEIGHT, BALANCE (15G)

44722-MLN-EQ1

Unavailable

WEIGHT, BALANCE (20G)

44723-MLN-EQ1

$3.80

DISK, FR. BRAKE

45251-K87-L50

$124.04

BOLT, DISK (8X25)

90105-MGS-D30

$2.92

BOLT, SOCKET (5X10)

90131-K87-L50

$1.49

BOLT, FR. AXLE

90305-K87-A00

$1.49

BEARING, RADIAL BALL (6203UU) (FUJIKOSHI)

91051-KVK-901

$9.60

DUST SEAL (25X40X5)

91252-K35-V01

$2.21
