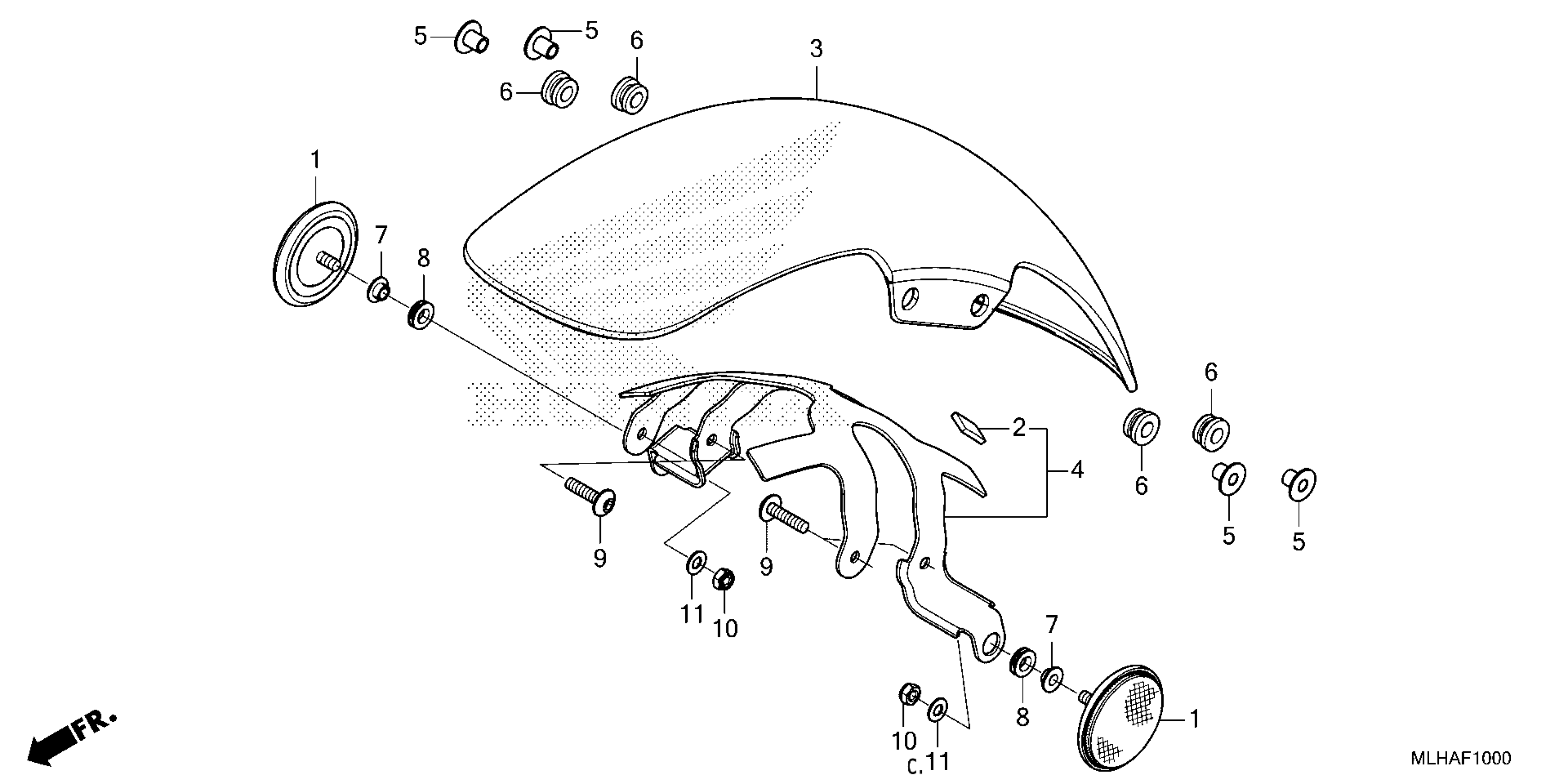

Honda CMX500AA (25) MOTORCYCLE, THA, VIN# MLHPC564-S5400001 TO MLHPC564-S5499999 FRONT FENDER Diagram

REFLECTOR, FR. REFLEX (AMBER)

33741-KTG-U01

$8.33

RUBBER, BATTERY (10X20X3)

50383-KZZ-900

$2.38

FENDER, FR. *NH436M*

61101-K2Y-J40ZC

$28.38

FENDER, FR. *NHC13P*

61101-K2Y-J40ZF

$29.35

BRACE, FR. FENDER

61102-K87-A00

$29.12

COLLAR A, FR. FENDER

61103-KRY-900

Unavailable

RUBBER, FR. FENDER MOUNTING

61105-KRY-900

$0.94

COLLAR, SEAT SETTING

77103-MEE-000

$2.51

RUBBER, RR. COWL MOUNTING (FR.) (FOR FR.)

80123-MER-D00

$1.87

SCREW, PAN (6X25)

90130-K87-A00

$0.96

NUT, U (6MM)

90301-782-000

$1.50

WASHER, RR. COVER GROMMET (FOR FR.)

90439-MB0-000

$1.59
