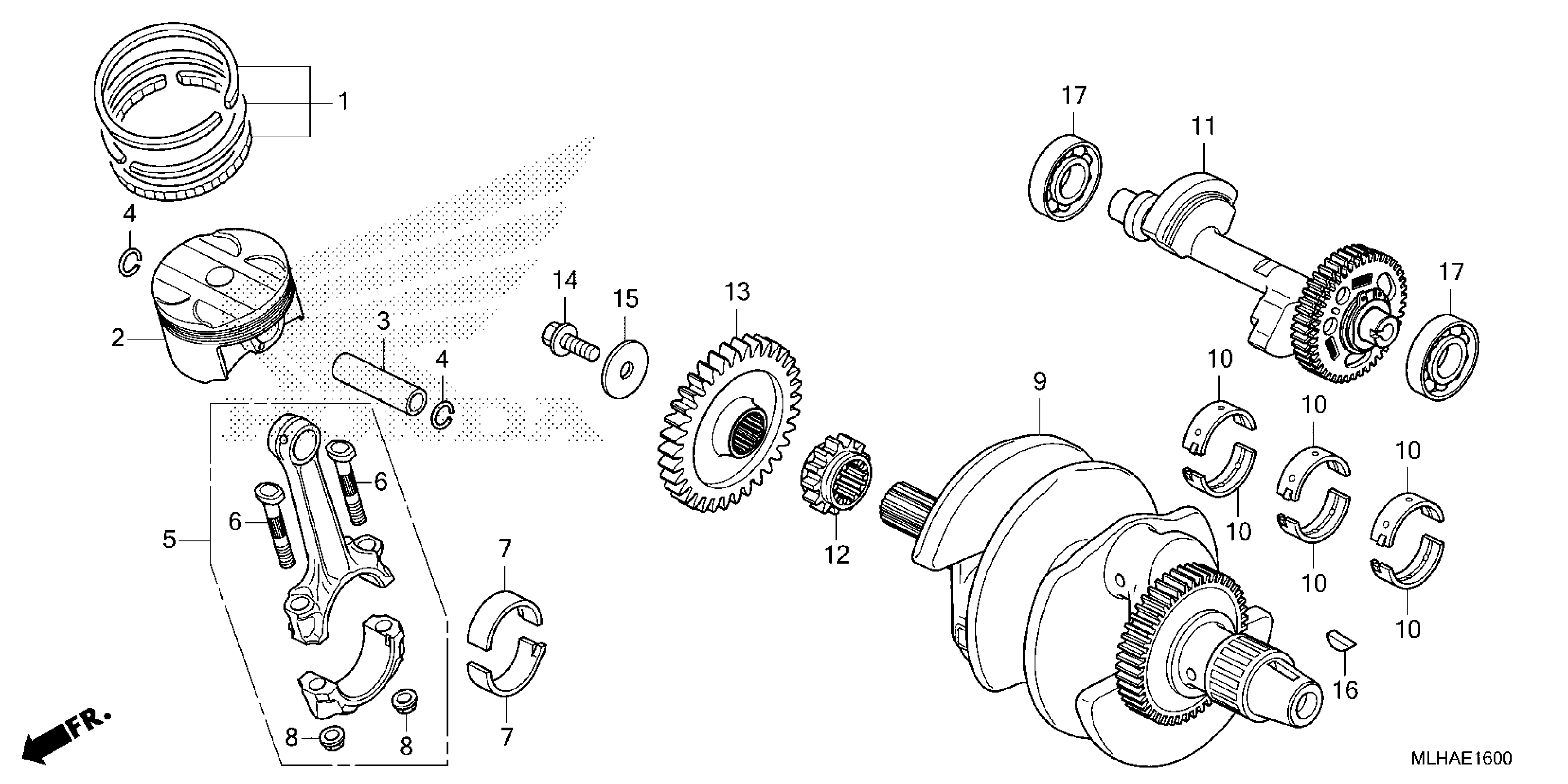

Honda CMX500AA (25) MOTORCYCLE, THA, VIN# MLHPC564-S5400001 TO MLHPC564-S5499999 CRANKSHAFT@PISTON Diagram

RING SET, PISTON (STD)

13011-MEE-305

$40.17

PISTON (STD)

13101-MGZ-D00

$50.19

PIN, PISTON

13111-MFG-D00

$18.05

CLIP, PISTON PIN (16MM)

13115-MGZ-J00

$0.44

ROD ASSY., CONNECTING

13210-MGZ-D00

$97.96

BOLT, CONNECTING ROD

13213-ML7-020

$7.64

BEARING A, CONNECTING ROD (BLUE)

13214-MGZ-J01

$22.62

BEARING B, CONNECTING ROD (BLACK)

13215-MGZ-J01

$22.62

BEARING C, CONNECTING ROD (BROWN)

13216-MGZ-J01

$22.62

BEARING D, CONNECTING ROD (GREEN)

13217-MGZ-J01

$22.62

BEARING E, CONNECTING ROD (YELLOW)

13218-MGZ-J01

$22.62

NUT, CONNECTING ROD

13215-ML7-000

$3.96

CRANKSHAFT

13300-MGZ-D01

$722.71

BEARING A, CRANKSHAFT (BLACK)

13313-MW0-003

$12.12

BEARING B, CRANKSHAFT (BROWN)

13314-MW0-003

$11.36

BEARING C, CRANKSHAFT (GREEN)

13315-MW0-003

$11.36

BEARING D, CRANKSHAFT (YELLOW)

13316-MW0-003

$12.12

BEARING E, CRANKSHAFT (PINK)

13317-MW0-003

$12.12

SHAFT, BALANCER (40T)

13420-MKG-A00

$236.91

SPROCKET, TIMING (17T)

14311-MGZ-J00

$10.34

GEAR, PRIMARY DRIVE (34T)

23113-MKG-A00

$46.47

BOLT, SPECIAL (10X25)

90013-MGZ-J00

Unavailable

WASHER (10.5X40)

90405-MGZ-J00

$5.46

KEY, WOODRUFF (25X18)

90742-KYJ-900

$2.10

BEARING (6204)

91001-MGZ-J01

$28.25
