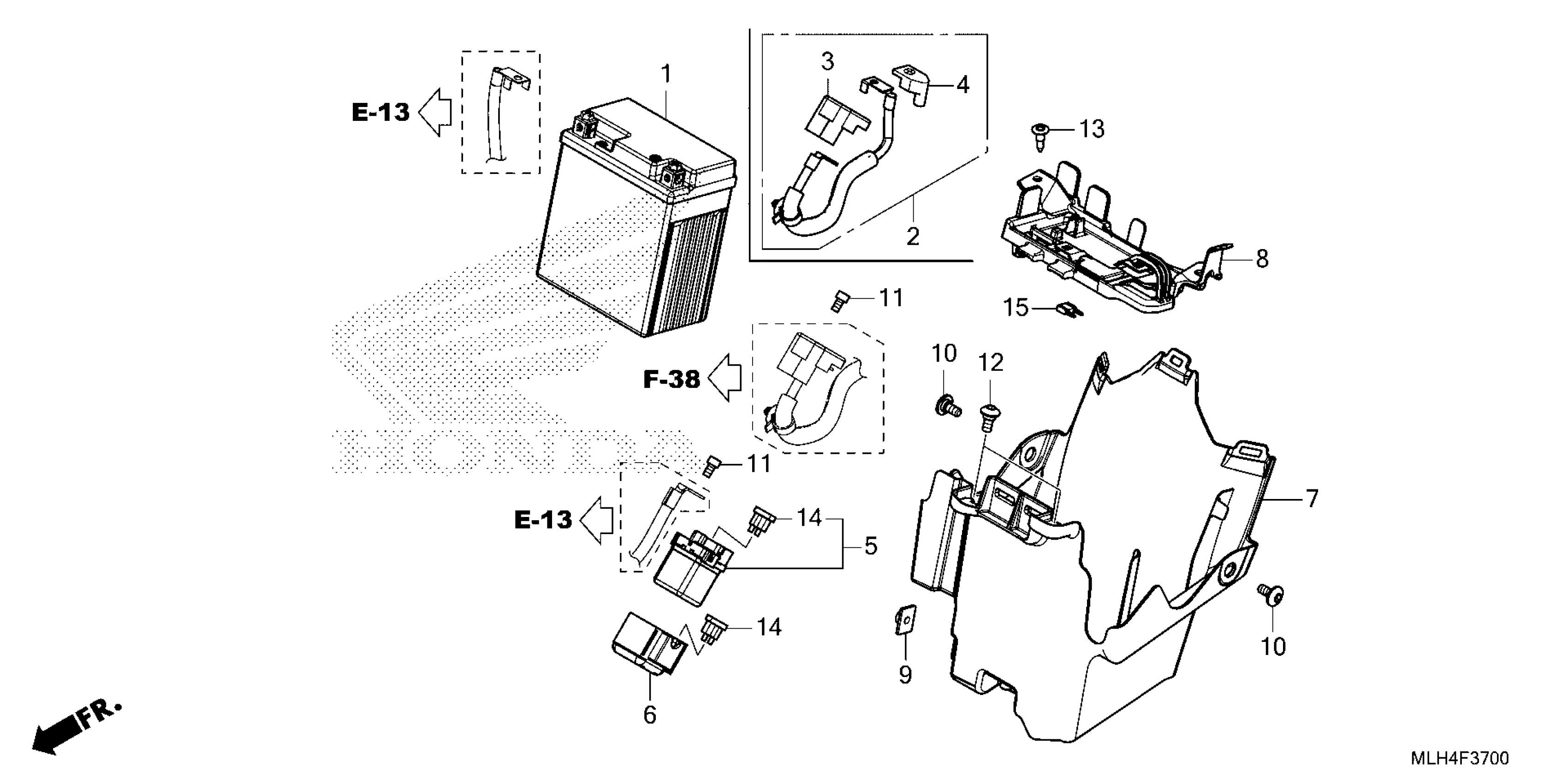

Honda CMX500AA (24) MOTORCYCLE, THA, VIN# MLHPC564-R5300001 TO MLHPC564-R5399999 BATTERY Diagram

#

Description

Price

1

BATTERY ASSY. (GTZ8V) (YUASA) (MSDS) This part replaces 31500-KZZ-J11.

31500-K36-A01

$60.71

1

BATTERY ASSY. (FTZ8V) (FURUKAWA) (MSDS)

31500-K2Y-A01

Unavailable

1

BATTERY ASSY. (GTZ8V) (YUASA) (MSDS)

31500-K36-A01

$60.71

5

SWITCH ASSY., STARTER MAGNETIC

35850-MT4-003

$71.60

6

RUBBER, SHOCK ABSORBER

35856-MR5-000

$9.00

7

BOX A, BATTERY

50325-K87-A00

$28.43

8

COVER, BATTERY

50326-K87-A30

$7.03

9

NUT, SPECIAL (6X7)

61304-958-003

$3.10

10

SCREW, SPECIAL (6X14)

90111-K87-A00

$0.85

11

BOLT, SOCKET (5X9)

90111-MR5-000

$2.41

12

SCREW, SPECIAL (6X14)

90115-MGZ-J00

$0.99

13

CLIP, BUMPER SEAL

90116-SP0-003

$4.50

14

FUSE, BLADE (30A)

98200-33000

$1.21

15

FUSE, MINI (30A) (Honda Code 5359666)

98200-43000

$1.62
