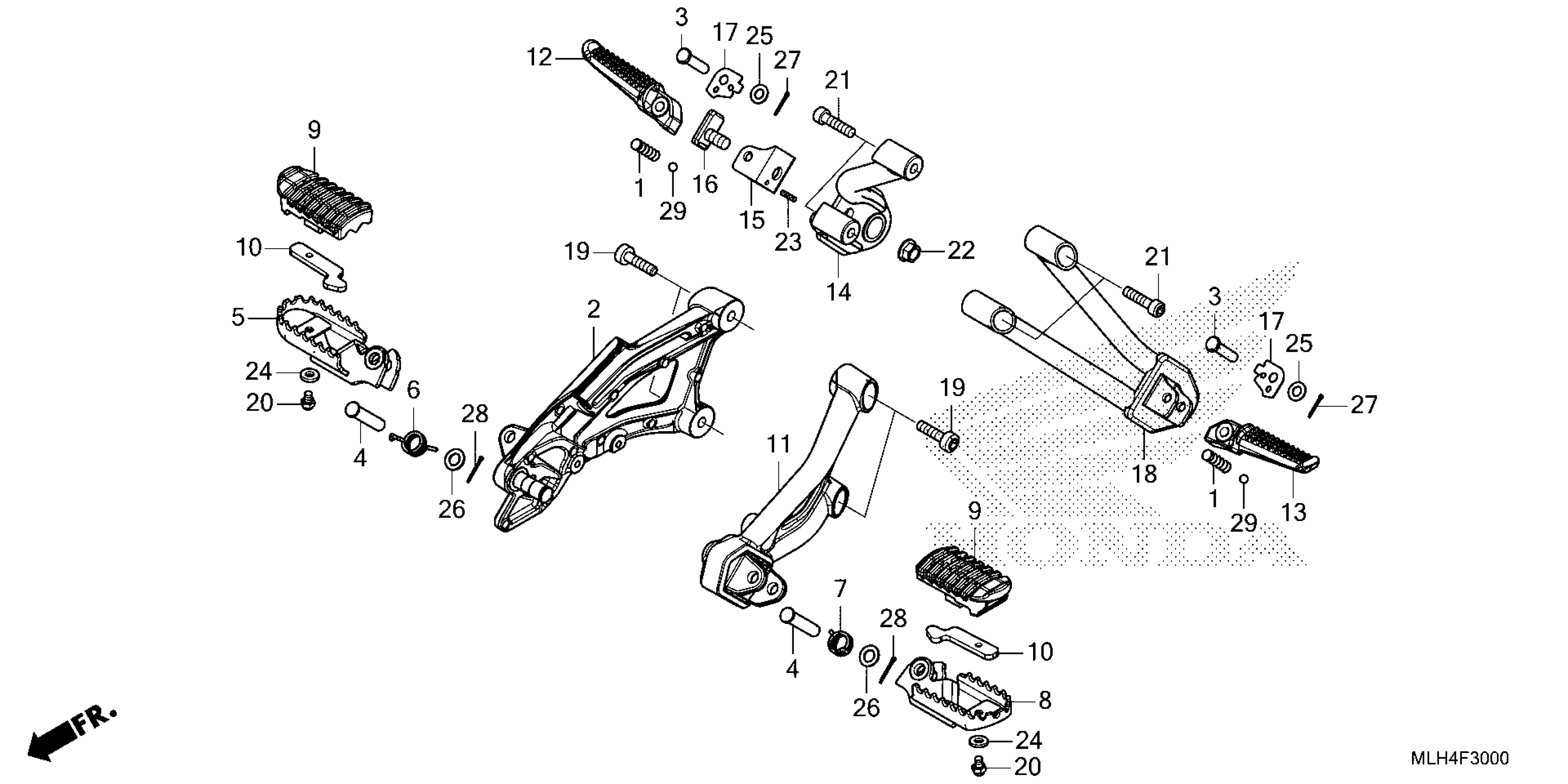

Honda CMX500AA (23) MOTORCYCLE, THA, VIN# MLHPC564-P5200001 TO MLHPC564-P5299999 STEP Diagram

Description

Price

HOLDER, R. STEP

50600-K87-A00

$46.60

PIN, STEP JOINT

50603-K87-A00

$2.79

STEP, R.

50616-K87-A30

$10.92

SPRING, R. STEP RETURN

50617-K87-A00

$2.18

SPRING, L. STEP RETURN

50618-K87-A00

$2.18

STEP, L.

50642-K87-A30

$10.82

RUBBER, STEP

50661-K87-A00

$3.88

PLATE, STEP RUBBER SETTING

50662-K87-A00

$2.62

HOLDER, L. STEP

50700-K87-A00

$37.02

HOLDER, R. PILLION STEP

50715-K87-A00

$53.97

BOLT, SOCKET (8X32)

90116-K87-A00

$1.49

BOLT, CAP (6X8)

90118-K87-A00

$1.49

BOLT, SOCKET (8X32)

90155-K87-A00

$1.49

WASHER, PLAIN (6MM)

94101-06700

$1.49

WASHER, PLAIN (10MM)

94102-10000

$1.49

PIN, SPLIT (2.0X18)

94201-20181

$1.53
