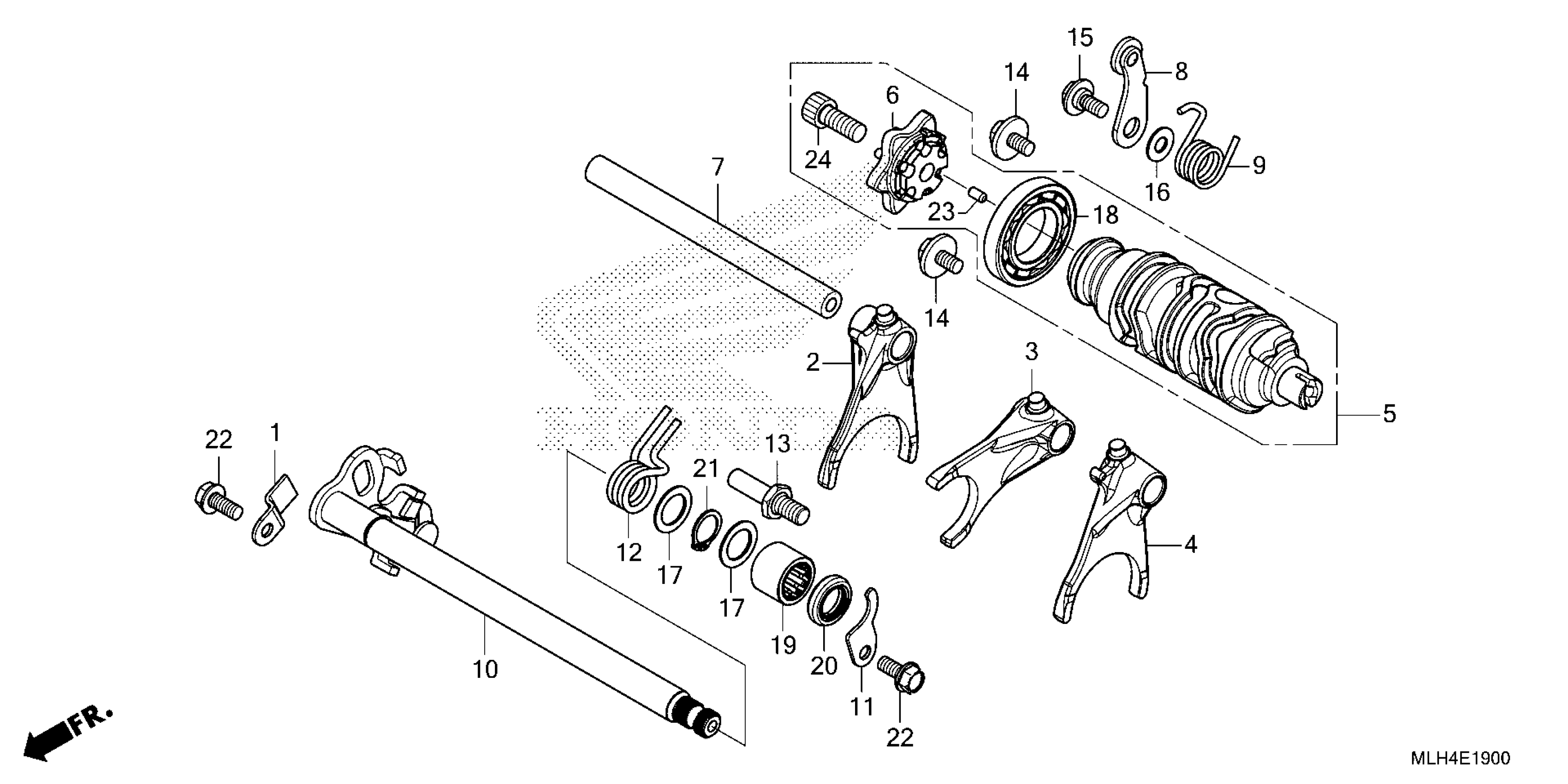

Honda CMX500AA (23) MOTORCYCLE, THA, VIN# MLHPC564-P5200001 TO MLHPC564-P5299999 GEARSHIFT DRUM Diagram

PLATE, TENSIONER SETTING

14623-MV1-000

$4.66

FORK, R. GEARSHIFT

24211-MGZ-J00

$22.93

FORK, CENTER GEARSHIFT

24212-MGZ-J00

$22.66

FORK, L. GEARSHIFT

24213-MGZ-J00

$22.62

DRUM, GEARSHIFT

24310-MKG-A30

$80.81

CENTER, SHIFT DRUM

24315-MJE-D00

$38.04

SHAFT, GEARSHIFT FORK

24321-MAS-000

$20.65

STOPPER, GEARSHIFT DRUM

24430-MGZ-J00

$7.62

SPRING, SHIFT DRUM STOPPER

24435-MJE-D00

$1.62

SPINDLE, GEARSHIFT

24610-MGZ-J00

$39.28

PLATE, SPINDLE

24612-MAL-600

$9.01

SPRING, SHIFT RETURN

24651-MAS-E00

$5.62

PIN, SHIFT RETURN SPRING

24652-MGZ-J00

$1.54

BOLT-WASHER (6X12)

90021-MGZ-J00

$3.79

PIVOT, SHIFT DRUM STOPPER ARM

90023-MGZ-J00

$0.54

WASHER, DRUM STOPPER

90417-360-000

Unavailable

WASHER (14MM)

90451-155-000

$3.62

BEARING, RADIAL BALL (25X47X8)

91007-MGS-D21

$15.99

BEARING, RADIAL BALL (25X47X8) This part replaces 91007-MGS-D31.

91007-MGS-D21

$15.99

BEARING, NEEDLE (14X22X16)

91106-MCF-003

$10.46

OIL SEAL (14X22X5) (ARAI)

91203-KSP-911

$1.90

CIRCLIP (OUTER) (14MM)

94510-14000

Unavailable

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$0.93

ROLLER (4X8)

96220-40080

Unavailable

BOLT, SOCKET (8X20)

96600-08020-10

$1.97
