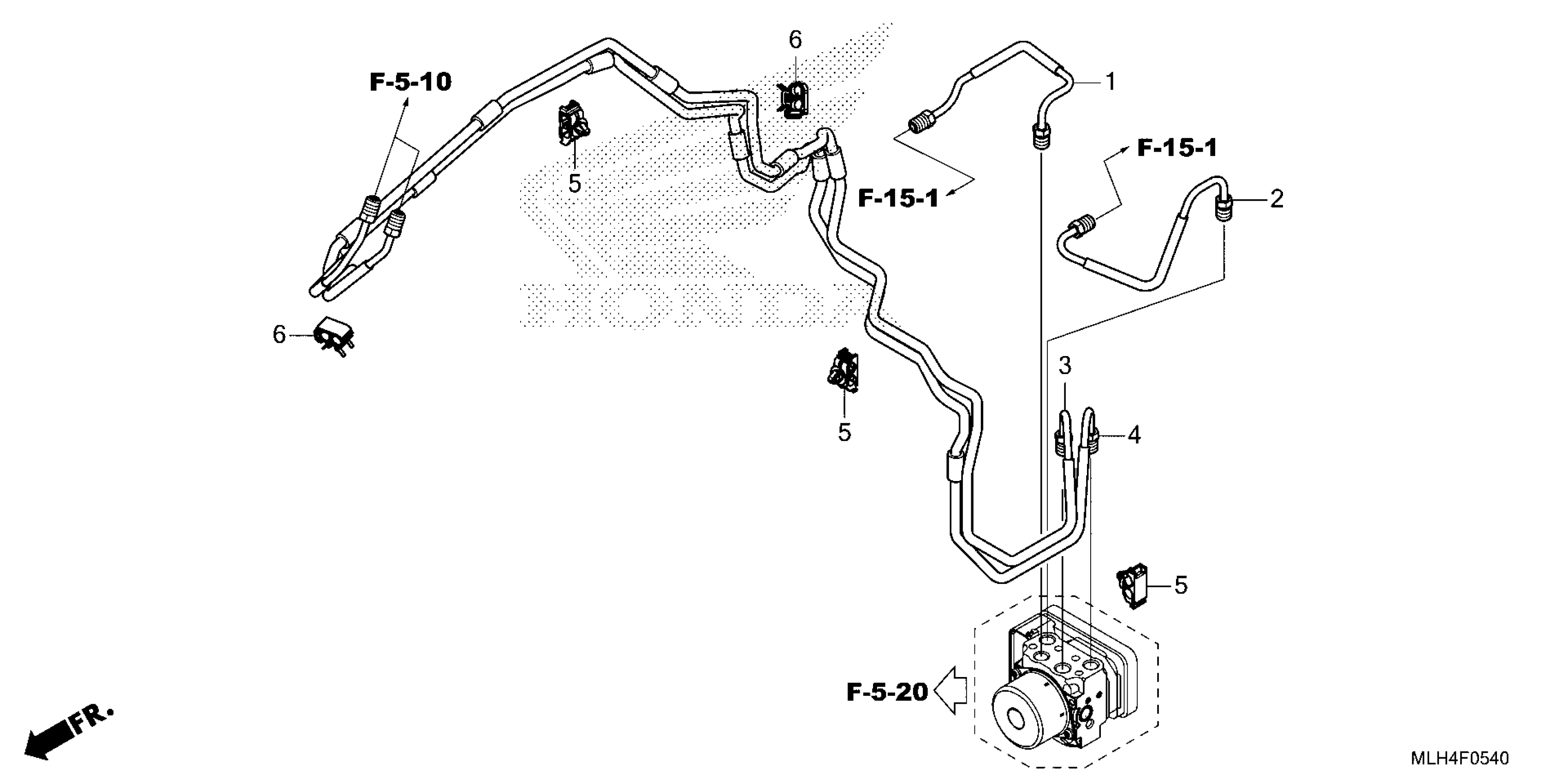

Honda CMX500AA (23) MOTORCYCLE, THA, VIN# MLHPC564-P5200001 TO MLHPC564-P5299999 BRAKE PIPE Diagram

#

Description

Price

1

PIPE B, RR. BRAKE

43315-K87-L50

$7.29

2

PIPE C, RR. BRAKE

43316-K87-L50

$10.26

3

PIPE B, FR. BRAKE

45126-K2Y-A00

$19.48

4

PIPE C, FR. BRAKE

45127-K2Y-A00

$20.75

5

CLAMP, BRAKE PIPE (7.0X2)

90661-K87-L51

$0.57

6

CLAMP, BRAKE PIPE (7.0X2)

90661-MEW-921

$2.58
