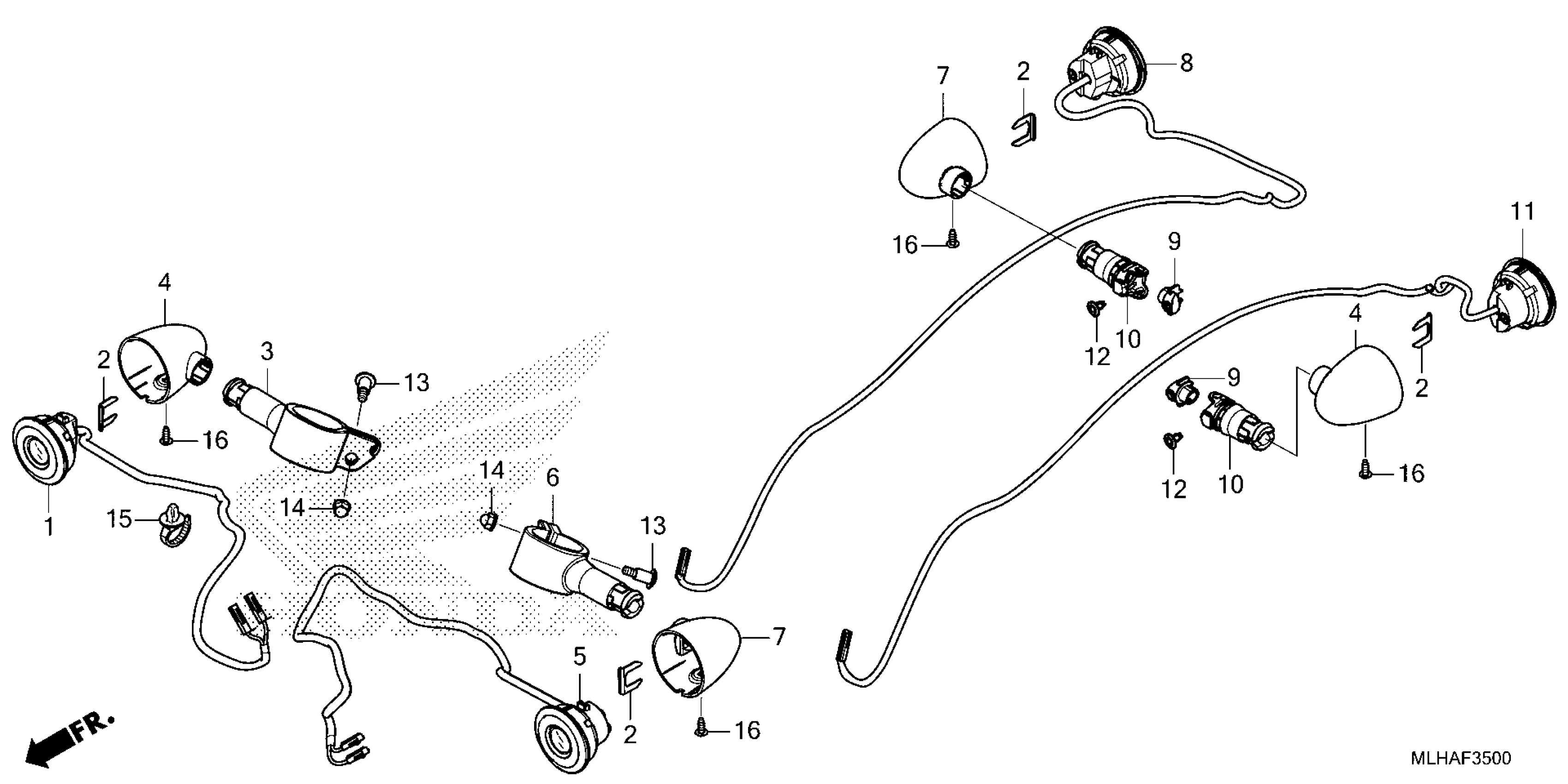

Honda CMX500A2AC (25) MOTORCYCLE, THA, VIN# MLHPC561-S5800001 TO MLHPC561-S5899999 TURN SIGNAL Diagram

#

Description

Price

1

TURN SIGNAL UNIT, R. FR. (MITSUBA)

33400-K87-A31

$84.16

2

STAY, TURN SIGNAL

33411-K87-A30

$2.72

3

RUBBER, R. FR. TURN SIGNAL

33412-K87-A30

$13.39

4

COVER A, TURN SIGNAL (R. FR./L. RR.)

33413-K87-A30

$4.56

5

TURN SIGNAL UNIT, L. FR. (MITSUBA)

33450-K87-A31

$79.07

6

RUBBER, L. FR. TURN SIGNAL

33452-K87-A30

$13.39

7

COVER B, TURN SIGNAL (L. FR./R. RR.)

33453-K87-A30

$4.56

8

TURN SIGNAL UNIT, R.

33600-K2Y-J41

$39.70

9

HOLDER, TURN SIGNAL

33609-K87-A30

$1.80

10

RUBBER, RR. TURN SIGNAL MOUNTING

33612-K87-A30

$5.12

11

TURN SIGNAL UNIT, L.

33650-K2Y-J41

$39.46

12

RIVET, PUSH (6MM)

90116-K0A-E11

$1.49

13

BOLT, SOCKET (6X22)

90119-K87-A00

$1.49

15

CLIP, HARNESS BAND (145MM) (BLACK)

91541-S0A-003

$3.30

16

SCREW, TAPPING (4X12)

93903-24380

$1.49
