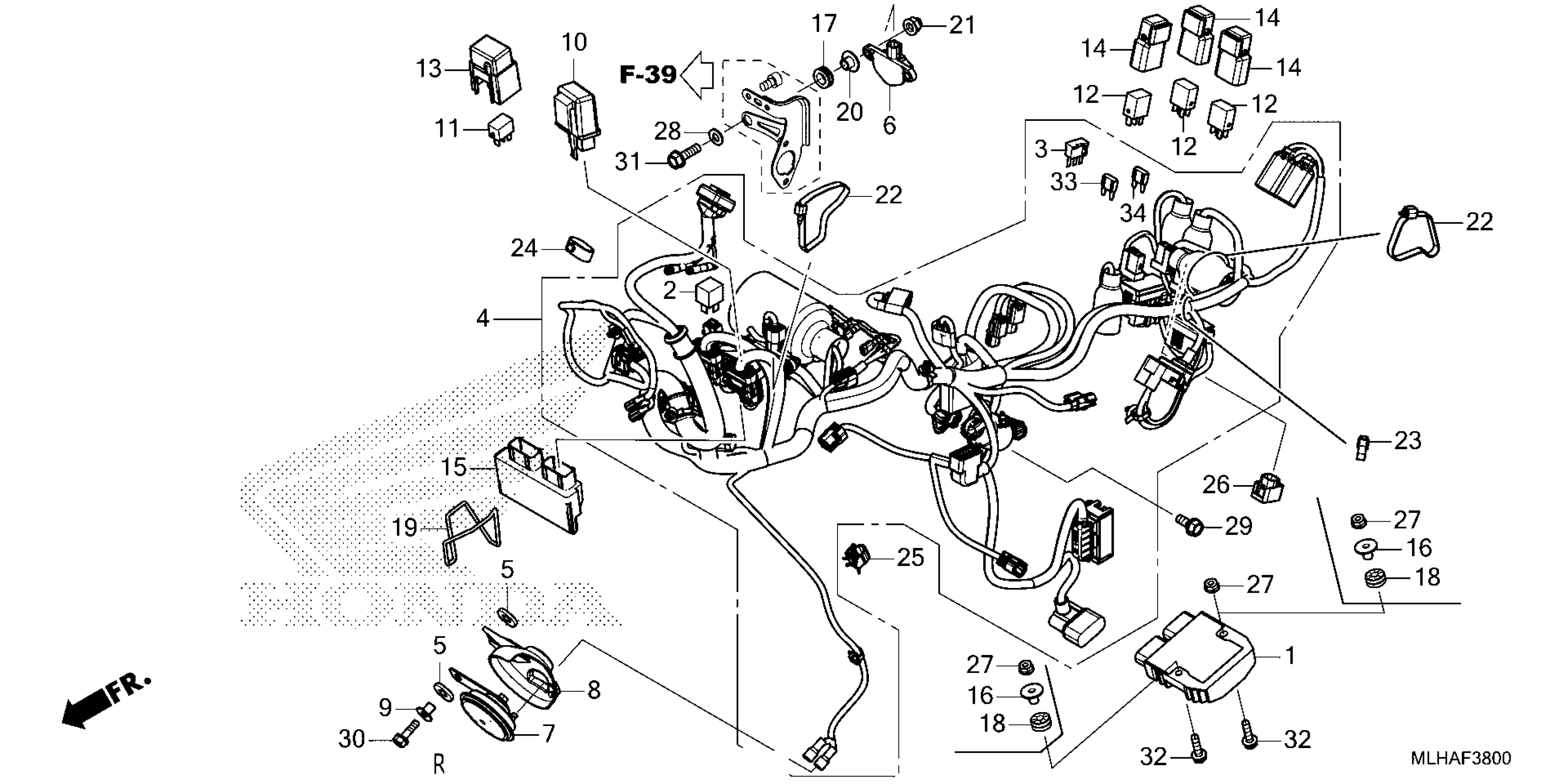

Honda CMX500A (25) CMX500A'25, THA, VIN# MLHPC560-S5800001 TO MLHPC560-S5899999 WIRE HARNESS Diagram

#

Description
Price

1

RECTIFIER ASSY., REGULATOR

31600-MKN-D51

$169.36

2

RECTIFIER, SILICON

31700-MM8-610

$22.75

3

DIODE ASSY., THREE WAY (SUMITOMO)

31730-MAS-601

$9.70

4

WIRE HARNESS

32100-MLH-A60

$656.33

5

RUBBER, TAILLIGHT BRACKET

33714-KL3-620

$2.29

6

SENSOR ASSY., BANK ANGLE (M6)

35160-KVS-751

$98.77

7

HORN (HIGH)

38110-MGZ-J01

$25.30

8

HEAT GUARD, HORN

38111-MGZ-J00

$3.81

9

COLLAR, HORN SETTING

38117-MGZ-J00

$1.58

10

RELAY, TURN SIGNAL

38301-KZZ-J01

$51.80

11

RELAY ASSY., POWER (MICRO ISO 4P) (MITSUBA)

38501-KVZ-631

$9.65

12

RELAY, POWER (MICRO ISO 4P)

38501-MCS-G01

$9.66

13

COVER, RELAY (2P)

38506-KZZ-900

$3.29

14

SUSPENSION, POWER RELAY

38506-MCS-G00

$5.59

15

PGM-FI UNIT

38770-MLH-A61

$327.10

16

COLLAR

61104-MKN-D50

$1.38

17

RUBBER, SIDE COVER

64535-MFJ-D00

$1.77

18

RUBBER B, SEAT MOUNTING

77208-KW7-900

$3.05

19

BAND, TOOL

80123-GN5-900

$2.43

20

COLLAR, BANK ANGLE SENSOR

90129-MGZ-J00

$2.09

21

NUT, CAP (6MM)

90202-KCW-870

$2.65

22

BAND, WIRE HARNESS

90620-SB2-003

$23.54

23

BAND, WIRE (Honda Code 2687788)

90650-KV6-003

$2.90

24

BAND, RUBBER (50)

90652-MKH-D20

$2.67

25

CLIP, CABLE (8MM)

90690-GHB-631

$1.99

26

CONNECTOR, DUMMY (6P 025M)

91771-MKG-D81

$7.75

27

NUT, FLANGE (6MM)

94050-06070

$1.32

28

WASHER, PLAIN (6MM) (USED ON TAILLIGHT)

94101-06800

Unavailable

29

BOLT, FLANGE (6X14)

95701-06014-08

$1.48

30

BOLT, FLANGE (6X20)

95701-06020-07

$1.48

31

BOLT, FLANGE (6X20)

95701-06020-08

$0.35

32

BOLT, FLANGE (6X35)

95701-06035-07

$1.71

33

FUSE, MINI (10A)

98200-41000

$1.20

34

FUSE, MINI (30A) (Honda Code 5359666)

98200-43000

$1.59
