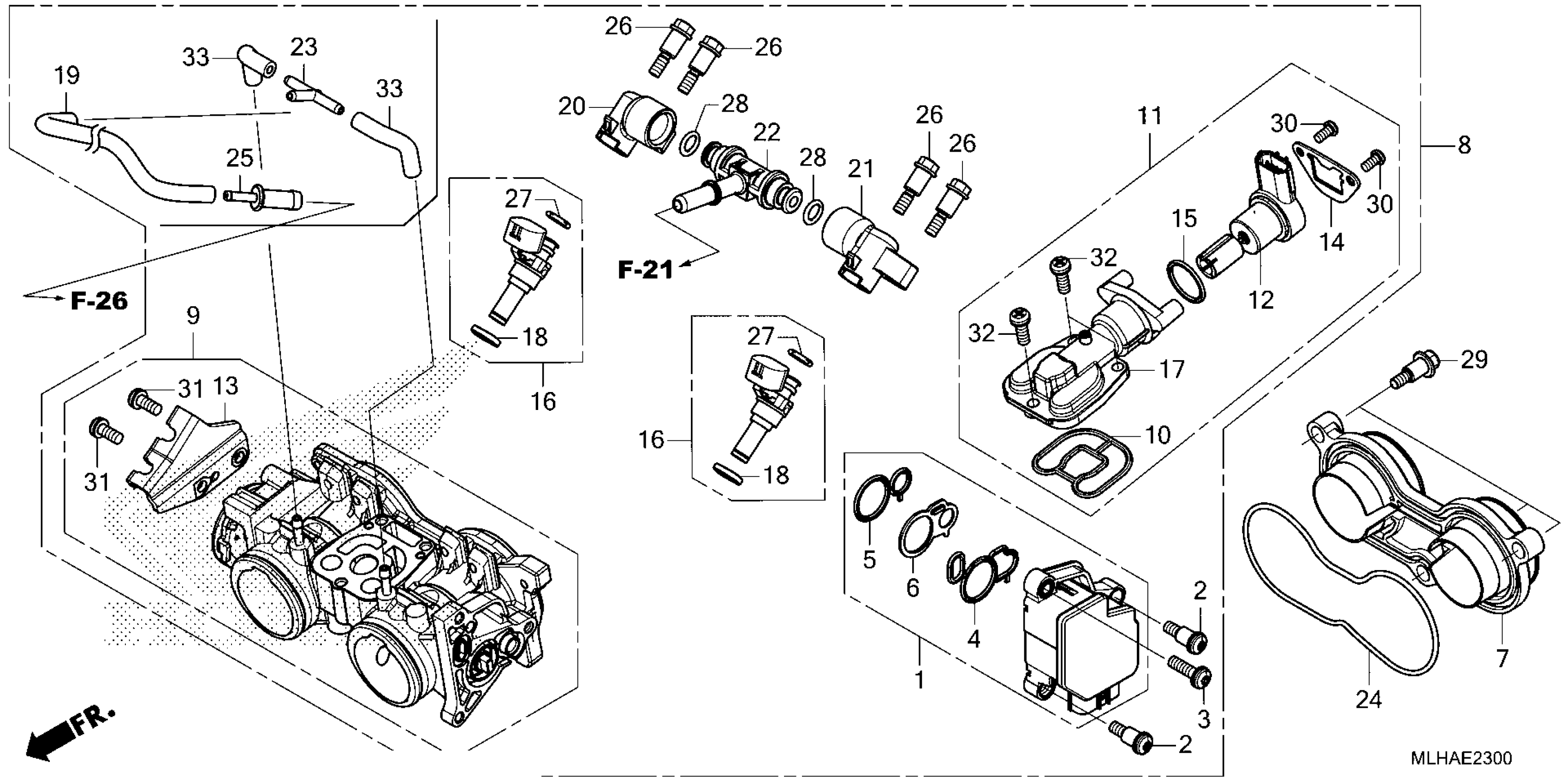

Honda CMX500A (25) CMX500A'25, THA, VIN# MLHPC560-S5800001 TO MLHPC560-S5899999 THROTTLE BODY Diagram

SENSOR SET

16060-MKG-L01

$84.97

SCREW, TORX (5X8.7)

16081-KPH-701

$3.12

SCREW, TORX (5X17)

16082-KPH-701

$5.43

O-RING, SENSOR

16083-MGZ-D01

$2.61

O-RING, SENSOR

16084-MGZ-D01

$2.61

PLATE

16085-MGZ-D01

$2.43

PLATE, FUNNEL SETTING

16188-MKG-A00

$10.72

BODY ASSY. (GQB1C A)

16400-MLH-A41

Unavailable

BODY SET

16410-MLH-A41

Unavailable

O-RING, AIR INJECTION CONTROL VALVE

16428-MGZ-D01

$25.16

VALVE SET, IDLE AIR CONTROL

16430-MJW-J01

$235.93

MOTOR ASSY.

16431-MJP-G51

$74.82

STAY, WIRE

16432-MGZ-D01

$40.08

PLATE, IDLE AIR CONTROL VALVE

16433-MEW-921

$10.34

O-RING (17.8X1.9)

16435-MFJ-D01

$3.03

INJECTOR ASSY., FUEL (NOT AVAILABLE)

16450-MLH-D41

$39.76

BODY, IDLE AIR CONTROL VALVE

16451-MGZ-D01

$179.23

GROMMET

16472-MLA-BA1

$8.49

PIPE, FUEL

16610-MLA-BA1

$22.34

PIPE, FUEL

16620-MLA-BA1

$22.34

T-JOINT, FUEL

16630-MFJ-D00

$22.13

SEAL, THROTTLE BODY

17215-MGZ-D00

$1.84

BOLT, SHOULDER

90021-MGZ-D02

$2.90

O-RING

91301-MKT-D71

$1.81

O-RING (7.47X3.6)

91301-PLC-000

$3.11

SCREW, PAN (5MM)

91508-MM5-000

$4.08

SCREW, PAN (4X8)

93500-04008-0H

$1.49

SCREW, PAN (4X8) This part replaces 93500-04008-1H.

93500-04008-0H

$1.49

SCREW-WASHER (5X12) (Honda Code 0368621)

93892-05012-08

$1.49

SCREW-WASHER (5X12) This part replaces 93892-05012-18.

93892-05012-08

$1.49

SCREW-WASHER (5X14)

93892-05014-08

$1.49

SCREW-WASHER (5X14) This part replaces 93892-05014-18.

93892-05014-08

$1.49
