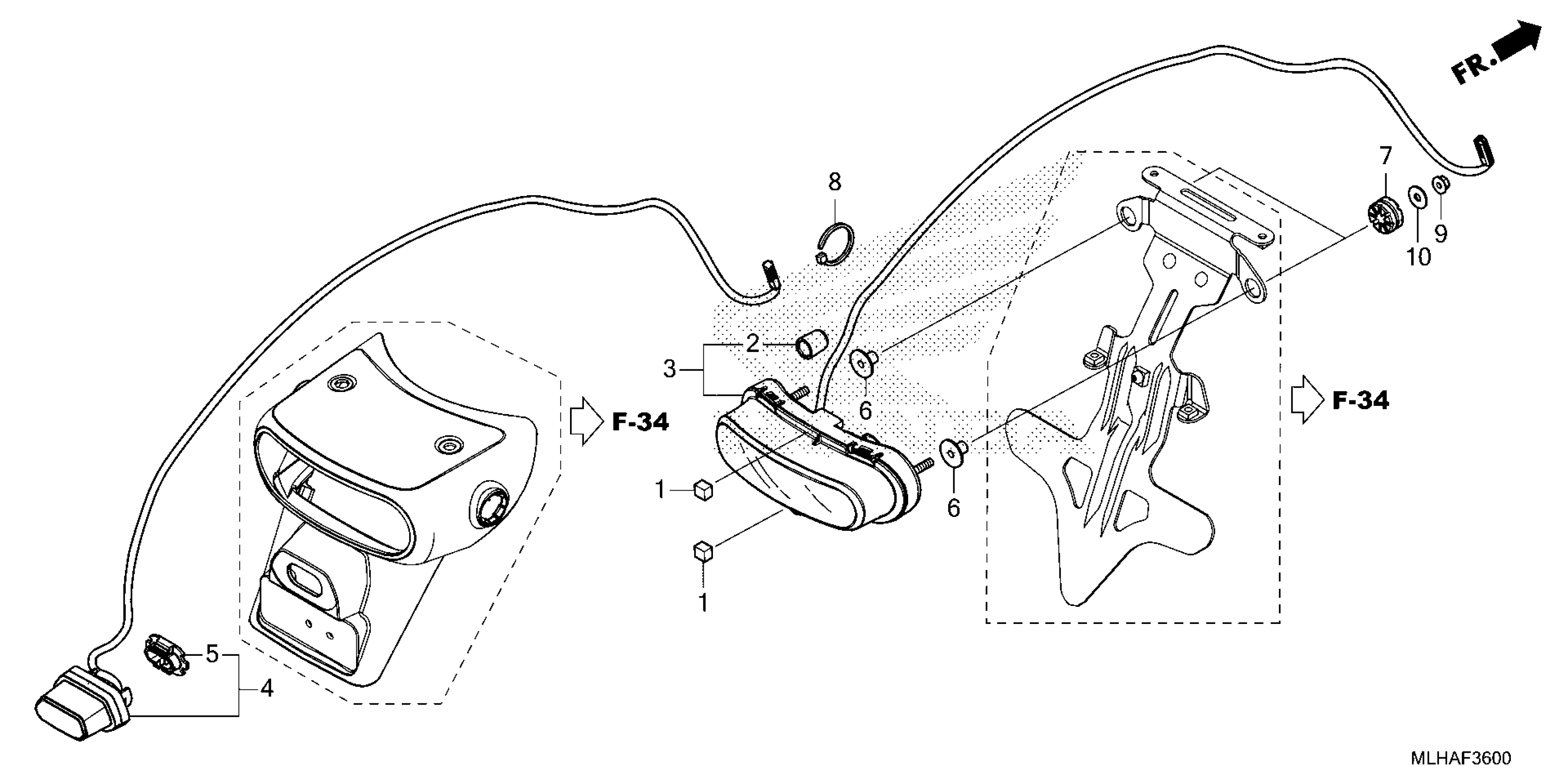

Honda CMX500A (25) CMX500A'25, THA, VIN# MLHPC560-S5800001 TO MLHPC560-S5899999 TAILLIGHT@LICENSE LIGHT Diagram

#

Description
Price

1

RUBBER B, R. COVER

11391-MKG-A00

$3.48

2

PIPE CP

33113-K07-M51

$3.11

3

TAILLIGHT UNIT

33701-K2Y-A51

$93.36

4

LIGHT ASSY., LICENSE

33720-K2Y-J41

$74.98

5

HOLDER

33721-K56-V51

$4.70

6

COLLAR (PCSV)

61104-MJM-A10

$4.49

7

RUBBER B, SEAT MOUNTING

77208-KW7-900

$3.37

8

BAND, NYLON

83645-GG0-000

$1.93

9

NUT, FLANGE (5MM)

94050-05000

$1.49

10

WASHER, PLAIN (5MM)

94103-05000

$1.49
