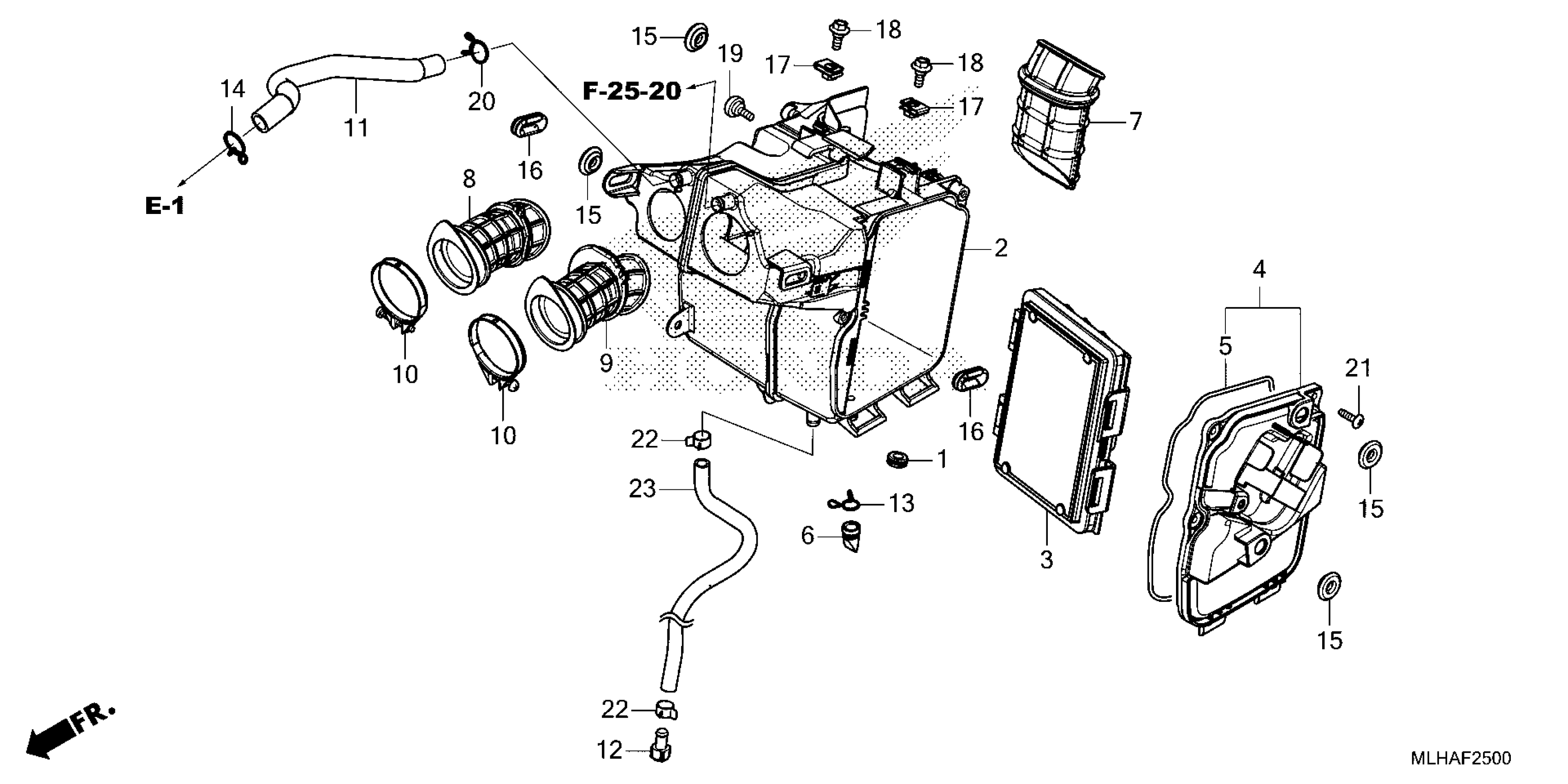

Honda CMX500A (25) CMX500A'25, THA, VIN# MLHPC560-S5800001 TO MLHPC560-S5899999 AIR CLEANER Diagram

GROMMET A, RR. COVER (8X16X6.6) (FR.)

11344-MB0-000

$2.75

CASE COMP, AIR/C

17210-MLP-AA0

$22.57

ELEMENT, AIR CLEANER

17220-KZZ-900

$16.26

COVER, AIR CLEANER

17230-K87-A00

$8.64

SEAL, AIR CLEANER

17232-K87-A00

$2.21

TUBE, AIR CLEANER DRAIN

17234-KCW-871

$2.57

DUCT, AIR CLEANER

17241-MKG-A00

$12.74

TUBE, R. CONNECTING

17251-MKG-A00

$17.90

TUBE, L. CONNECTING

17252-MKG-A00

$18.28

BAND 50

17255-K98-E00

$3.21

TUBE, BREATHER

17265-MKG-A00

$8.80

PLUG, BREATHER TUBE

17370-419-700

$3.74

CLIP, BREATHER TUBE

17371-174-670

$2.20

CLIP, SUB-TANK HOSE

17724-102-700

$4.51

GROMMET, SIDE COVER

83551-376-000

$2.97

GROMMET, RR.

83601-KVN-900

$1.49

NUT, FENDER SETTING (6MM)

84601-HC4-000

$4.28

BOLT, FLANGE (6MM)

90109-KZZ-900

$1.49

SCREW (6X13)

90121-K87-A00

$1.49

CLIP, AIR HOSE (16MM)

90646-657-000

$7.32

SCREW, TAPPING (5X20)

93903-25480

$1.49

CLAMP, TUBE (D12)

95002-41200-08

$2.34

BULK HOSE, VINYL (8X12X8000) (Honda Code 4825345) (8X12X600)

95003-23008-60M

Unavailable
