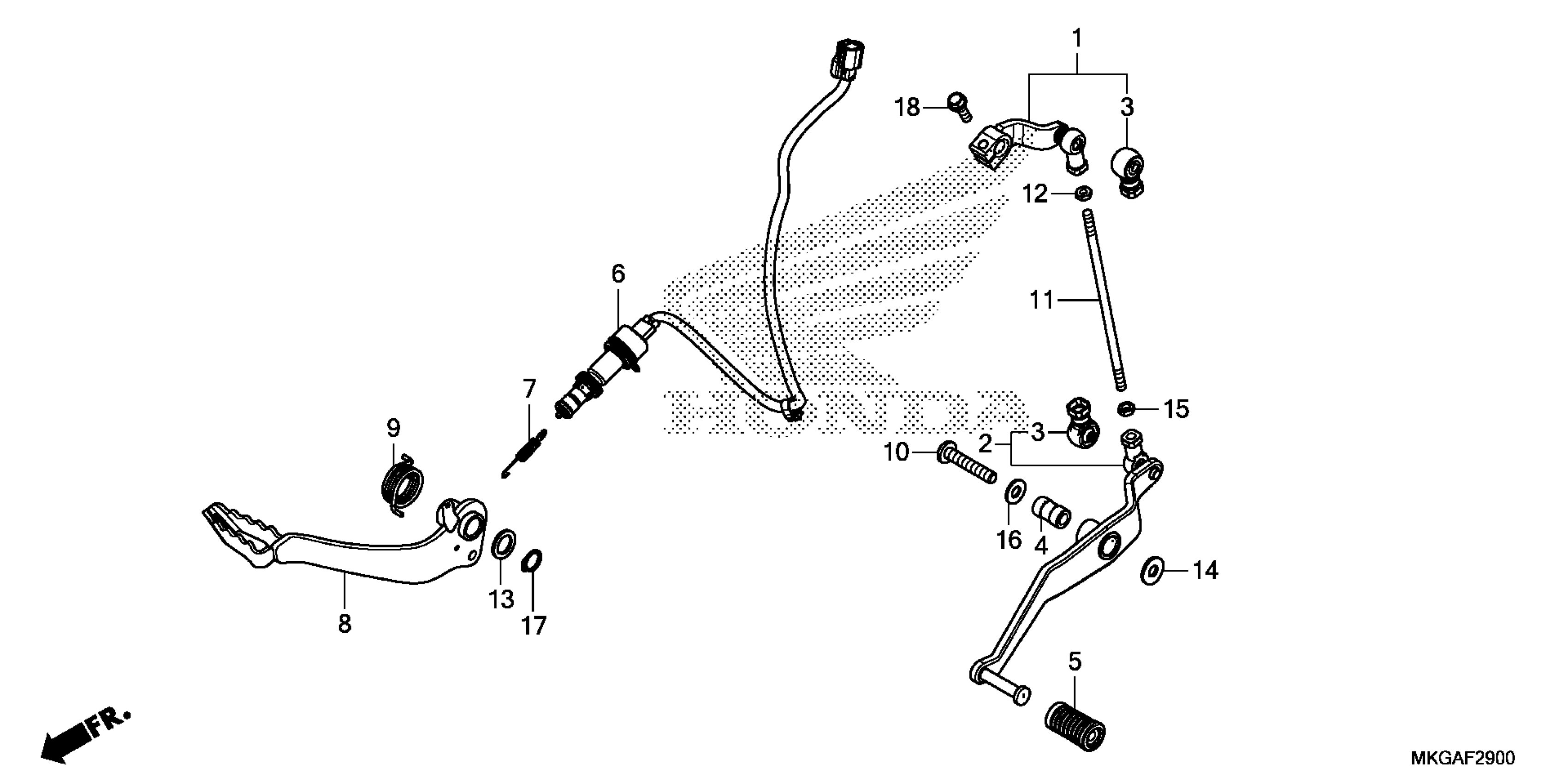

Honda CMX500A (22) MOTORCYCLE, THA, VIN# MLHPC560-N5500001 PEDAL Diagram

ARM, GEARSHIFT (COO) This part replaces 24710-MGZ-J00.

24710-MGZ-305

$17.43

ARM, GEARSHIFT (COO)

24710-MGZ-305

$17.43

PEDAL, GEARSHIFT

24720-MKG-A00

$46.77

COVER, DUST

24724-MBW-D21

$6.98

COLLAR, GEARSHIFT PEDAL PIVOT

24731-K87-A00

$3.15

RUBBER, GEARSHIFT PEDAL

24781-KR3-770

$3.39

SWITCH ASSY., RR. STOP (TOYO DENSO)

35350-K87-A01

$32.44

SPRING, STOP SWITCH

35357-K26-900

$1.49

PEDAL, RR. BRAKE

46501-K87-A30

$18.22

SPRING, BRAKE PEDAL

46514-K87-A00

$3.04

BOLT, SOCKET SPECIAL (8X45)

90110-K87-A00

$1.49

BOLT, TIE ROD

90165-MKG-A00

$5.12

NUT, SPECIAL (6MM) (LEFT HAND THREAD)

90301-MGZ-J00

$2.34

WASHER (14MM)

90451-GBL-870

$2.92

WASHER (8.5X20)

90526-K87-A00

$1.49

NUT, HEX. (6MM)

94001-06070-0S

$1.49

WASHER, PLAIN (8MM)

94101-08000

$1.49

CIRCLIP (OUTER) (14MM)

94511-14000

$1.49

BOLT, FLANGE (6X20)

95701-06020-07

$1.62
