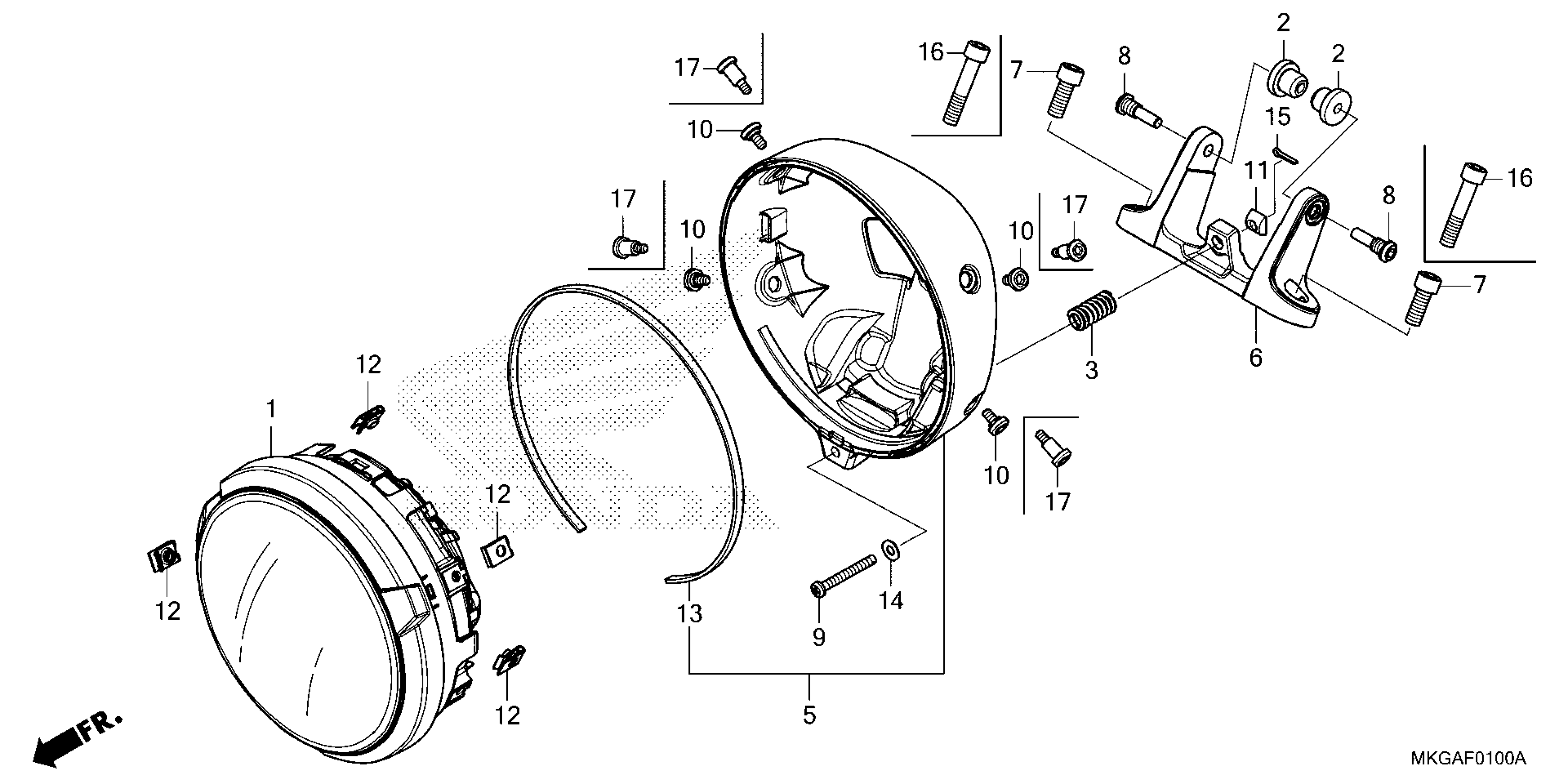

Honda CMX500A (22) MOTORCYCLE, THA, VIN# MLHPC560-N5500001 HEADLIGHT Diagram

HEADLIGHT ASSY. (KOITO)

33100-K87-A31

$549.41

RUBBER, HEADLIGHT MOUNTING

61304-K87-A30

$2.35

SPRING, HEADLIGHT AIMING

61305-K87-C80

$2.17

CASE, HEADLIGHT

61310-K87-A31

$20.25

HOLDER, HEADLIGHT

64221-K87-A30

$48.59

BOLT, SOCKET (8X20)

90113-GHB-650

$0.59

BOLT, HEADLIGHT MOUNTING

90136-K87-A30

$1.09

BOLT, HEADLIGHT AIMING

90137-K87-A30

$1.09

BOLT, SPECIAL (5X10)

90138-K87-A30

$1.06

NUT, HEADLIGHT AIMING

90310-K87-A30

$2.30

NUT, CLIP (5MM)

90677-KAN-961

$3.79

WASHER, PLAIN (5MM)

94101-05700

Unavailable

PIN, SPLIT (1.0MM) This part replaces 94201-10100.

94201-10150

$0.94

PIN, SPLIT (1.0MM)

94201-10150

$0.94
