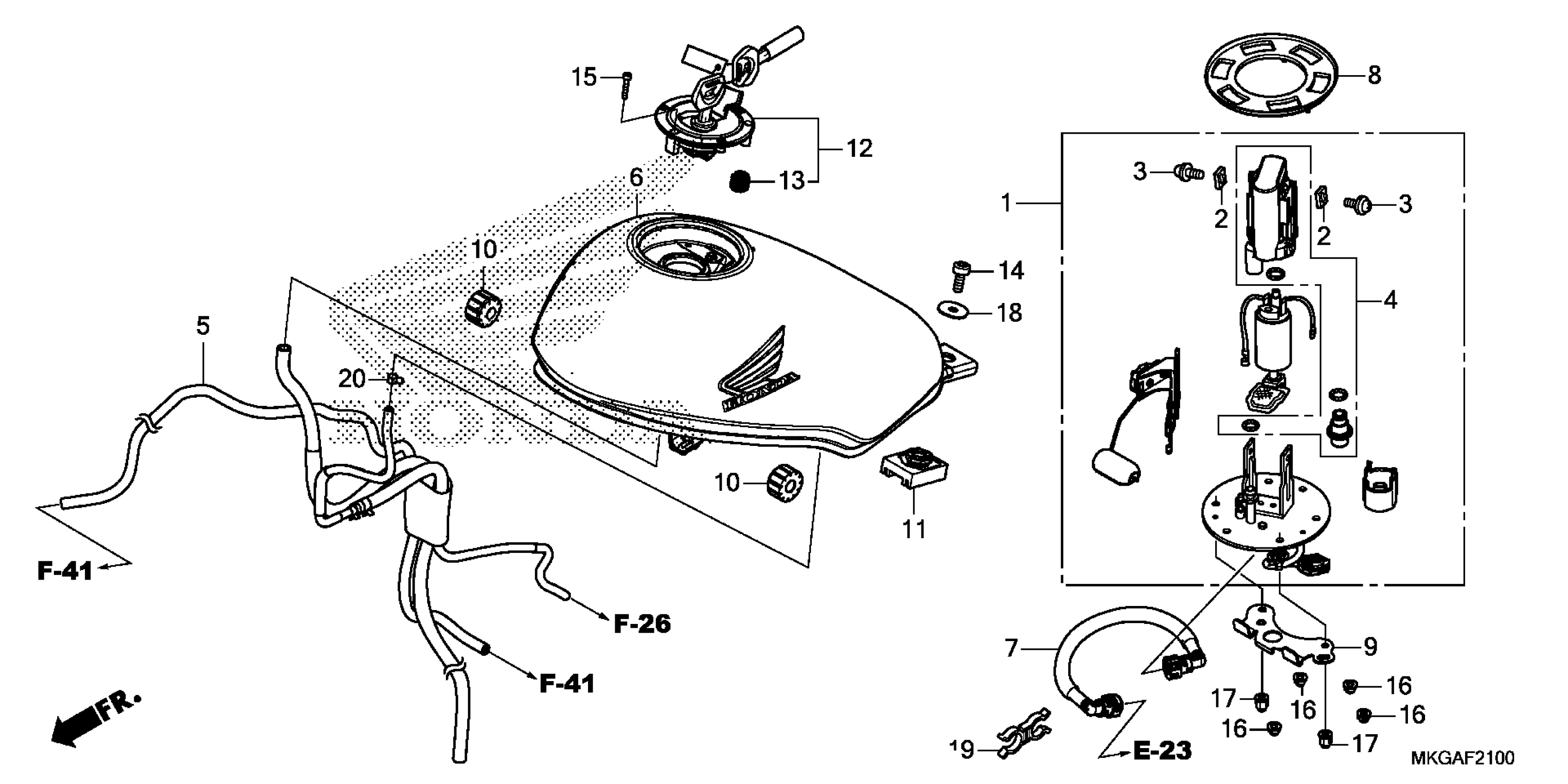

Honda CMX500A (22) MOTORCYCLE, THA, VIN# MLHPC560-N5500001 FUEL TANK@FUEL PUMP Diagram

PUMP UNIT ASSY., FUEL (MSDS)

16700-MKG-A03

$522.01

STOPPER

16711-MGS-D31

$4.84

SCREW (4X6.6)

16712-MGS-D31

$1.89

FILTER ASSY., FUEL

16730-MKT-D01

$42.30

TUBE ASSY.

17417-MKG-A00

$78.59

TANK SET, FUEL (TYPE2) (WL)

17520-MKG-A20ZD

$644.15

TANK SET, FUEL (TYPE1) (WL)

17520-MKG-LA0ZB

$469.57

HOSE, FUEL FEED

17570-MKG-A01

$41.05

GASKET, BASE

17574-KZZ-910

$34.60

GUARD, FUEL PUMP

17580-MKG-A00

$7.69

CUSHION, FR. FUEL TANK

17611-KPK-900

$2.13

CUSHION, RR. FUEL TANK

17613-K87-A00

$6.20

CAP COMP This part replaces 17620-KZZ-J02.

17620-KZZ-J03

$199.00

SEAL, BREATHER

17621-MGP-D62

$5.14

BOLT, SOCKET (8X22)

90116-MGZ-J00

$1.49

BOLT, SOCKET (4X25) (SUS)

90120-MJE-D00

$1.49

NUT, CAP (6MM)

90201-415-000

$2.05

NUT, HEX. CAP (6MM)

90304-KZZ-900

$5.05

WASHER, PLAIN (8MM)

90325-KCC-900

$4.10

CLAMP, FUEL HOSE (BLACK)

91593-MGZ-J01

$2.33
