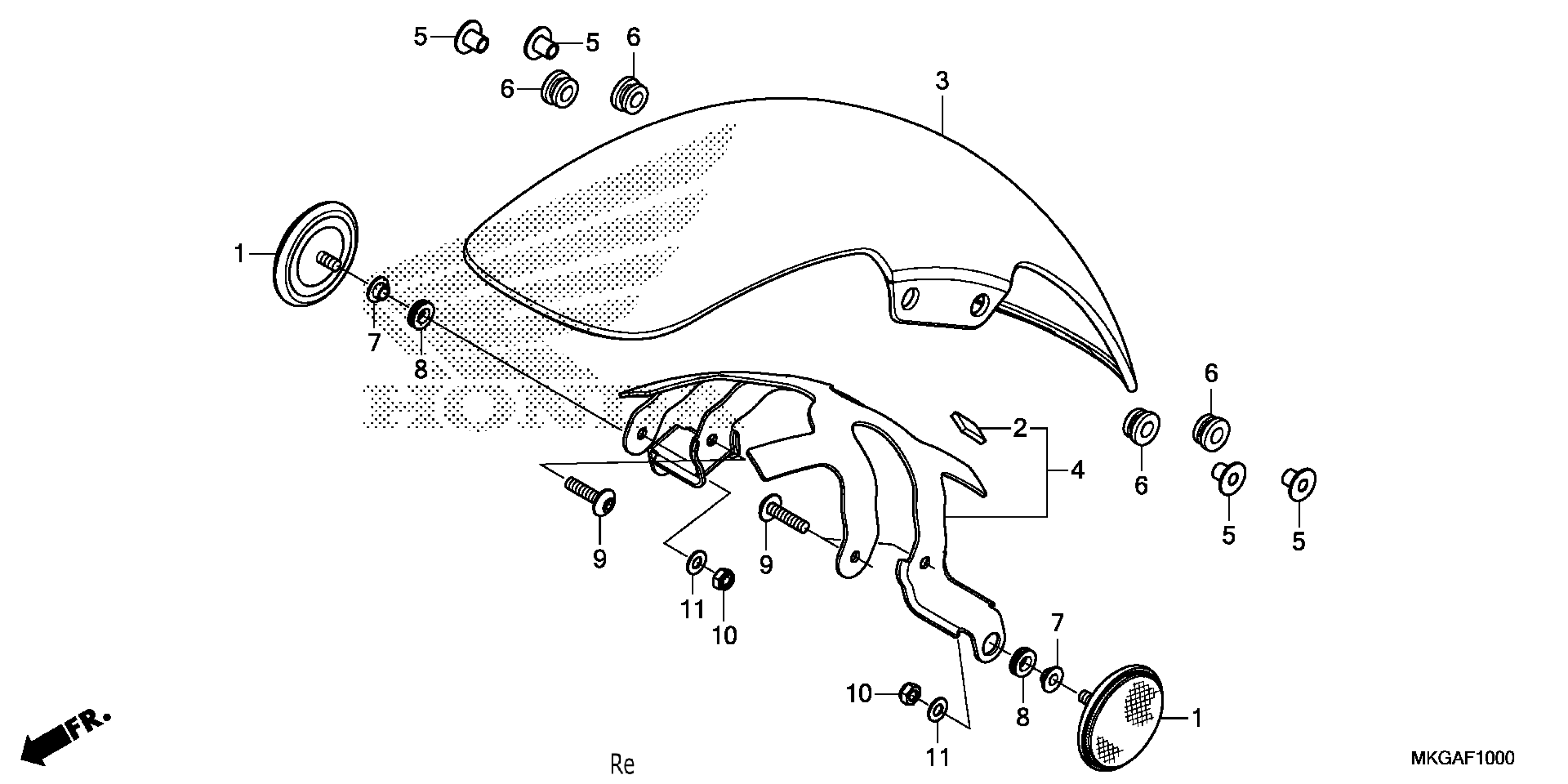

Honda CMX500A (22) MOTORCYCLE, THA, VIN# MLHPC560-N5500001 FRONT FENDER Diagram

REFLECTOR, FR. REFLEX (AMBER)

33741-KTG-U01

$6.36

RUBBER, BATTERY (10X20X3)

50383-KZZ-900

$2.66

FENDER, FR.

61101-K87-A00

$39.47

BRACE, FR. FENDER

61102-K87-A00

$32.56

COLLAR A, FR. FENDER

61103-KRY-900

$1.49

RUBBER, FR. FENDER MOUNTING

61105-KRY-900

$1.49

COLLAR, SEAT SETTING

77103-MEE-000

$2.72

RUBBER, RR. COWL MOUNTING (FR.) (FOR FR.)

80123-MER-D00

$2.02

SCREW, PAN (6X25)

90130-K87-A00

$1.49

NUT, U (6MM)

90301-782-000

$1.62

WASHER, RR. COVER GROMMET (FOR FR.)

90439-MB0-000

$1.72
