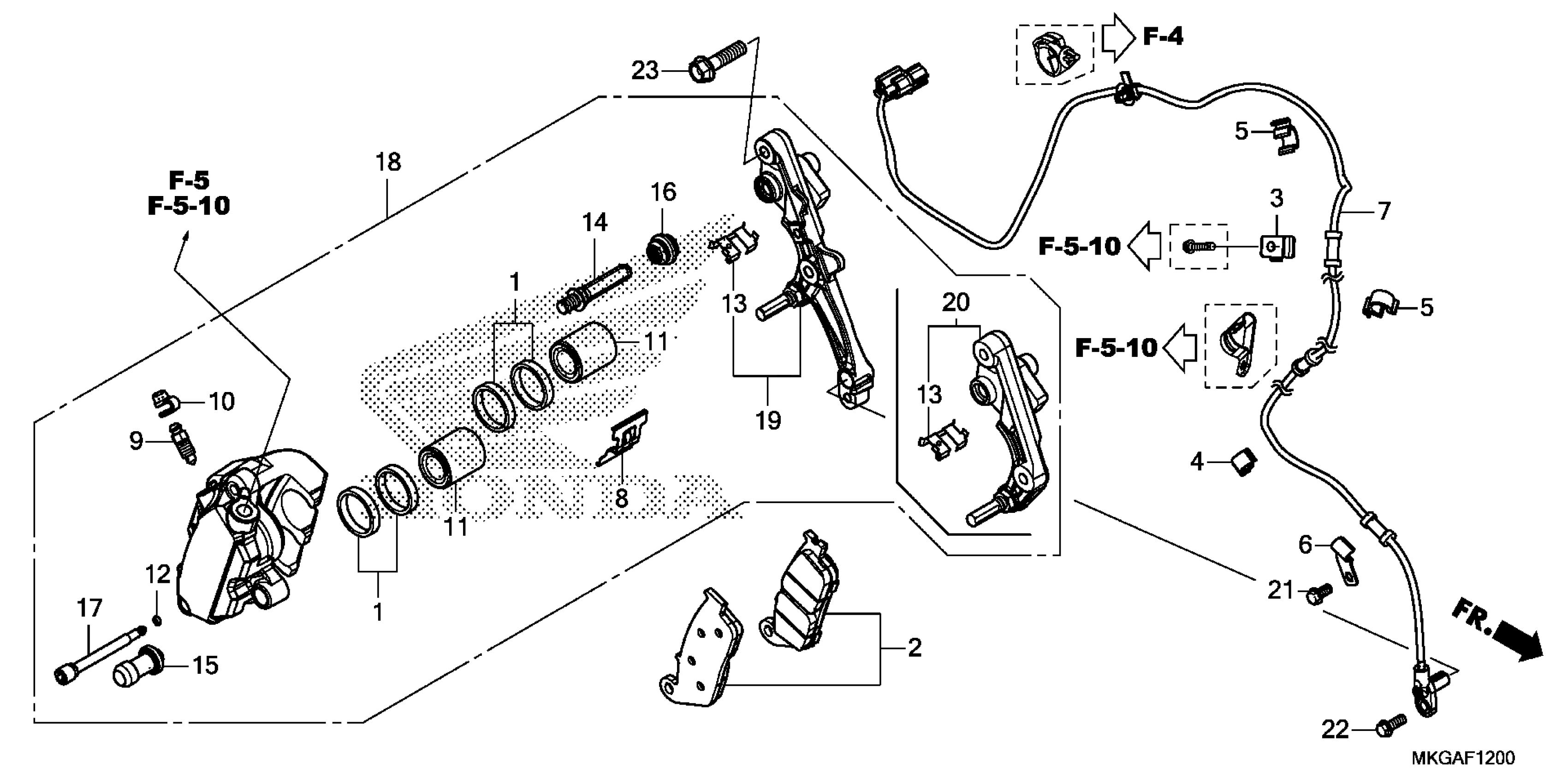

Honda CMX500A (22) MOTORCYCLE, THA, VIN# MLHPC560-N5500001 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

SEAL SET, PISTON (RIGHT SIDE, QTY-1)

06431-MA3-405

$7.33

2

PAD SET, FR.

06455-K40-F12

$31.93

8

SPRING, PAD

43108-MCT-006

$4.92

9

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

10

CAP, BLEEDER

43353-461-771

$5.05

11

PISTON (NISSIN)

45107-ML4-006

$37.87

12

RING, STOPPER

45111-MAJ-G41

$3.80

13

RETAINER

45112-MS9-611

$5.46

14

BOLT A, PIN (NISSIN)

45131-ML7-921

$15.44

15

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.46

16

BOOT B

45133-MA3-006

$5.46

17

PIN, HANGER

45215-MAJ-G41

$6.45

18

CALIPER SUB-ASSY., R. FR. (NISSIN)

45250-MKA-J31

$315.20

20

BRACKET SUB-ASSY., R. FR. (NISSIN)

45290-MKA-J31

$89.13

23

BOLT, FLANGE (8X32)

90131-KZZ-900

$1.49
