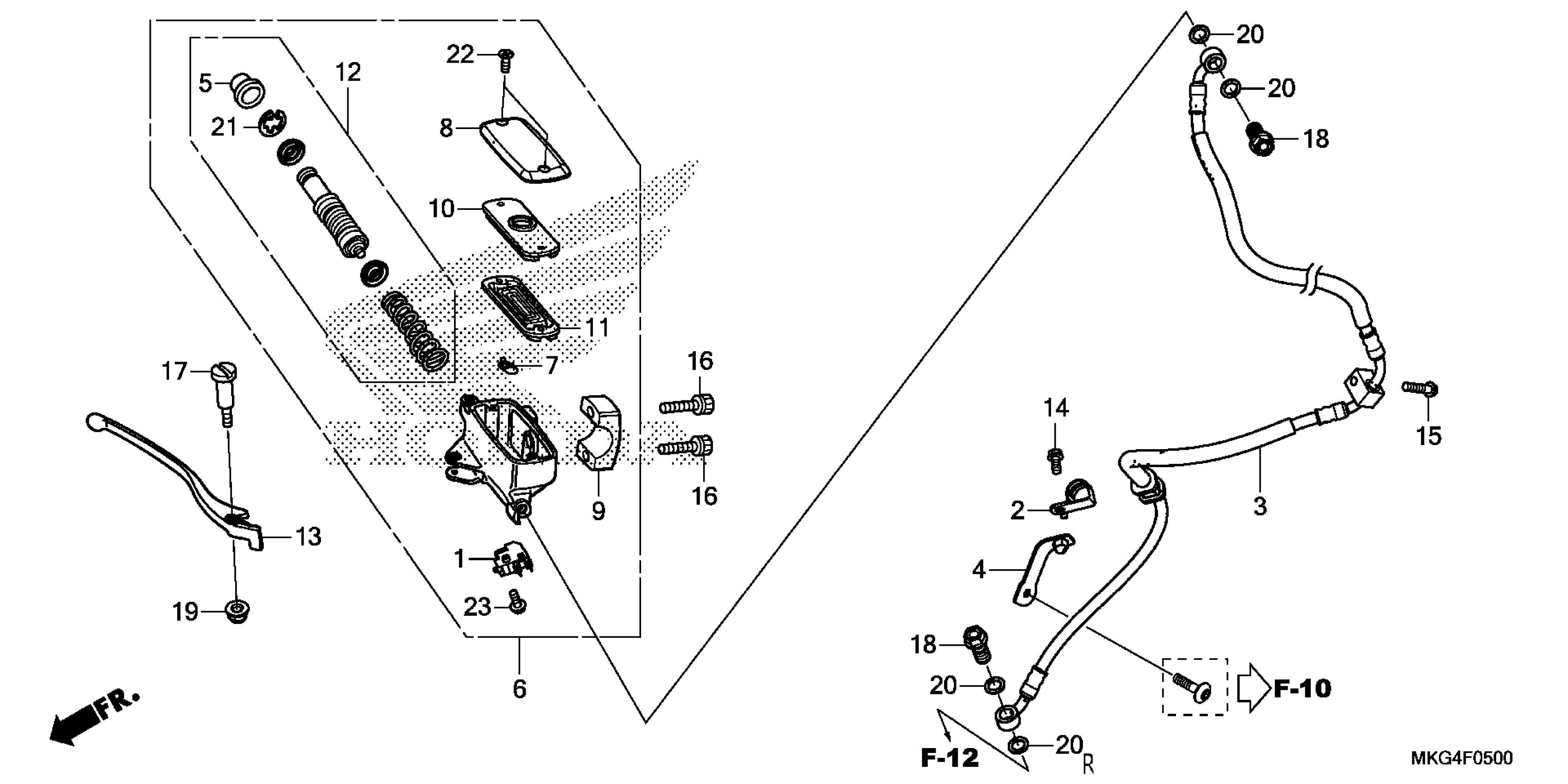

Honda CMX500A (18) MOTORCYCLE, THA, VIN# MLHPC560-J5100001 TO MLHPC560-J5199999 FRONT BRAKE MASTER CYLINDER (1) Diagram

SWITCH ASSY., FR. STOP

35340-MGS-D31

$18.50

CLAMP, BRAKE HOSE

43155-K87-A00

$4.18

HOSE, FR. BRAKE

45125-K87-A01

$44.87

STAY, FR. BRAKE HOSE

45155-K87-A00

$3.92

BOOT

45504-410-003

$12.16

MASTER CYLINDER SUB-ASSY., FR. (NISSIN)

45510-K87-A01

$128.35

PROTECTOR

45512-MA6-006

$4.28

CAP, MASTER CYLINDER (NISSIN)

45513-MM5-016

$22.41

HOLDER, MASTER CYLINDER (NISSIN)

45517-MAV-751

$20.71

PLATE, DIAPHRAGM (NISSIN)

45518-MM5-006

$10.65

DIAPHRAGM (NISSIN)

45520-MM5-006

$15.12

MASTER CYLINDER SET (NISSIN)

45530-K03-M61

$38.48

LEVER, R. HANDLEBAR

53175-MR5-003

$16.29

BOLT, FLANGE (6X10)

90013-GHB-600

$4.48

BOLT, FLANGE (6X28)

90013-GHB-680

$1.49

BOLT, SOCKET (6X22)

90111-GHB-660

$1.49

BOLT, R. HANDLEBAR PIVOT

90114-MA5-671

$9.43

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$7.54

NUT, CAP (6MM)

90202-KCW-870

$2.92

WASHER, OIL BOLT

90545-300-000

$3.99

CIRCLIP (INNER) (18.8)

90651-K03-M61

$1.49

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

SCREW-WASHER (4X12)

93893-04012-07

$1.49

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49
