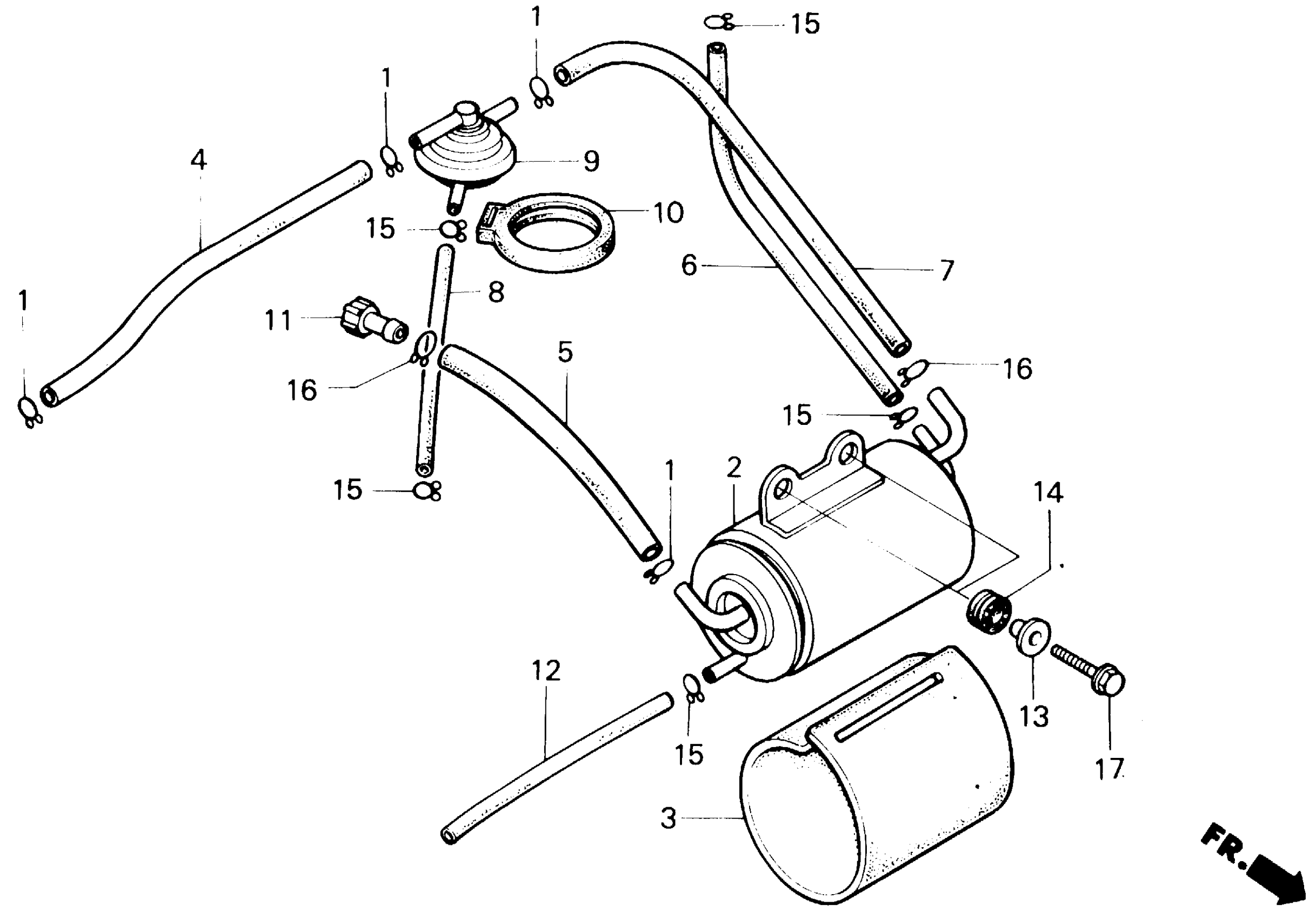

Honda CMX450CAC (87) REBEL 450, JPN, VIN# JH2PC171-HM100001 TO JH2PC171-HM100972 CANISTER (AC) Diagram

CLIP, TUBE (P.C.V.)

15772-MB3-000

Unavailable

CANISTER (HITACHI)

17410-MM2-751

Unavailable

COVER, CANISTER

17412-MM2-750

Unavailable

TUBE, PURGE CONTROL VALVE CANISTER

17415-MM2-750

Unavailable

TUBE, AIR

17416-MM2-750

Unavailable

TUBE, TANK-CANISTER

17417-MM2-750

Unavailable

TUBE, CARBURETOR JOINT (P.V.C)

17418-MM2-750

Unavailable

TUBE, CARBURETOR (P.V.C.)

17419-MM2-750

Unavailable

VALVE, PURGE CONTROL

17440-MK7-710

Unavailable

RUBBER, PURGE CONTROL VALVE SETTING

17451-ME5-760

$12.90

PLUG, CANISTER AIR TUBE

17467-ME9-750

$10.36

TUBE, CANISTER DRAIN

18388-MJ1-790

Unavailable

COLLAR, SETTING

61104-422-000

$6.91

RUBBER, TAILLIGHT SETTING

84703-425-000

$4.72

CLIP, TUBE (B8)

95002-02080

$1.80

CLIP, TUBE (B12.5)

95002-02130

$1.49

BOLT, FLANGE (6X22) This part replaces 95700-06022-08.

95701-06022-08

$1.72

BOLT, FLANGE (6X22)

95701-06022-08

$1.72
