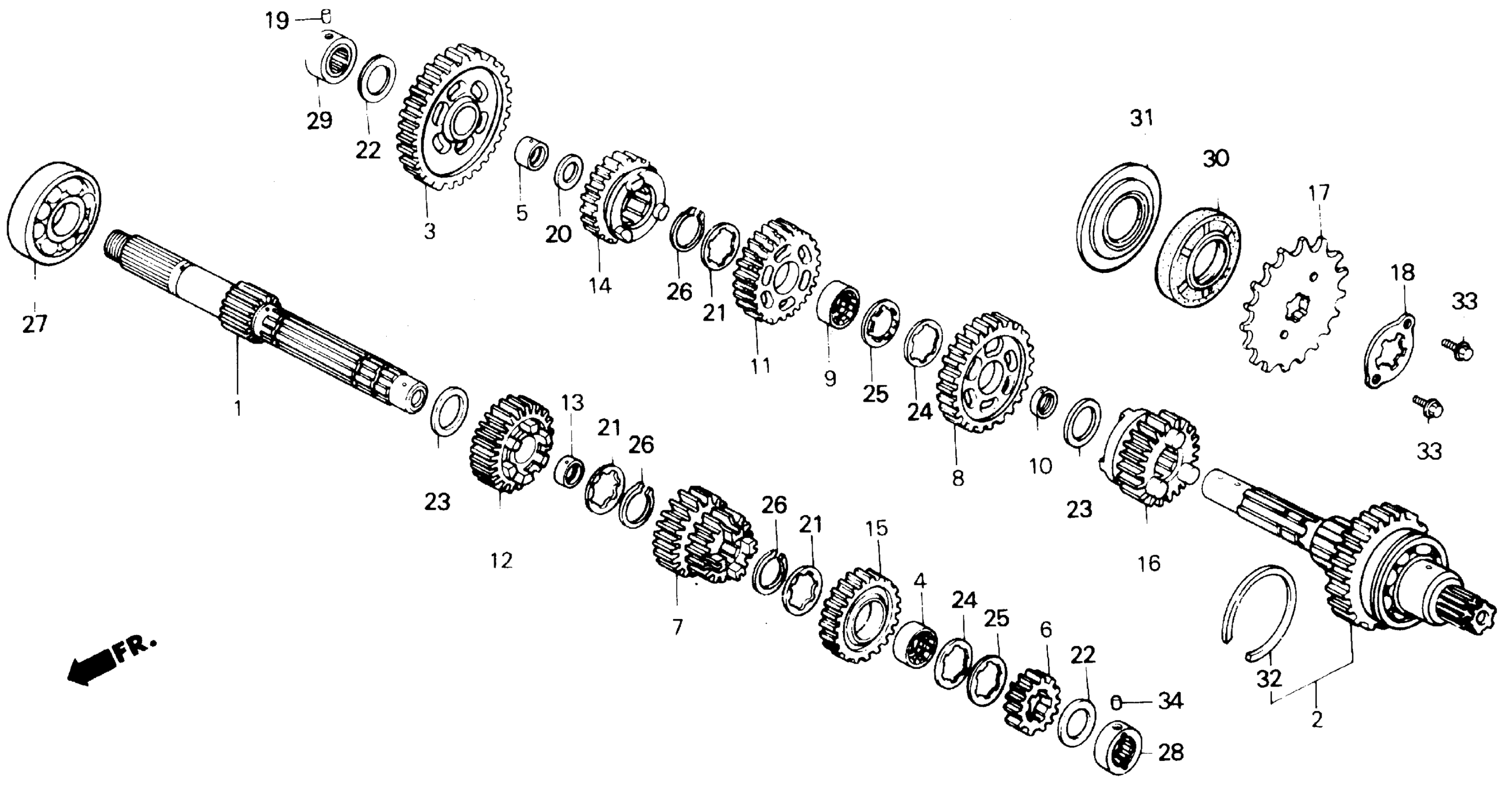

Honda CMX450CA (87) REBEL 450, JPN, VIN# JH2PC170-HM100001 TO JH2PC170-HM104034 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT, TRANSMISSION (13T)

23211-ML4-610

Unavailable

2

COUNTERSHAFT

23220-MM2-670

Unavailable

3

GEAR, COUNTERSHAFT LOW (36T)

23421-ML4-610

Unavailable

4

COLLAR, SPLINE (25X28X10.8)

23422-ME9-000

Unavailable

5

BUSH (20MM)

23422-ML4-610

Unavailable

6

GEAR, MAINSHAFT SECOND (19T)

23431-ML4-610

Unavailable

7

GEAR, MAINSHAFT THIRD & FOURTH (22T/25T)

23451-ML4-610

Unavailable

8

GEAR, COUNTERSHAFT THIRD (34T)

23461-ML4-610

Unavailable

9

COLLAR, SPLINE (25X9)

23462-MJ8-000

Unavailable

10

COLLAR (25MM)

23462-ML4-610

Unavailable

11

GEAR, COUNTERSHAFT FOURTH (32T)

23481-ML4-610

Unavailable

12

GEAR, MAINSHAFT FIFTH (27T)

23491-ML4-610

Unavailable

13

COLLAR (25MM)

23492-ML4-610

Unavailable

14

GEAR, COUNTERSHAFT FIFTH (29T)

23501-ML4-610

Unavailable

15

GEAR, MAINSHAFT SIXTH (30T) (NOT AVAILABLE)

23511-MM2-670

Unavailable

16

GEAR, COUNTERSHAFT SIXTH (26T) (NOT AVAILABLE)

23521-MM2-670

Unavailable

17

SPROCKET, DRIVE (17T) (NOT AVAILABLE)

23801-MM2-670

Unavailable

18

PLATE, FIXING

23811-MJ8-000

Unavailable

19

PIN, GEARSHIFT FORK GUIDE

24261-283-000

$4.21

20

WASHER A, THRUST (32X1.9)

90408-ML4-610

Unavailable

20

WASHER B, THRUST (30X1.7)

90409-ML4-610

$4.59

20

WASHER C, THRUST (28X1.45)

90410-ML4-610

Unavailable

21

WASHER, THRUST (25MM)

90451-413-000

$3.26

22

WASHER, THRUST (20X1.00)

90454-428-000

$2.53

23

WASHER, THRUST (25MM)

90456-MA6-000

$2.53

24

WASHER B, THRUST (25MM)

90461-286-000

Unavailable

25

WASHER, LOCK (25MM)

90462-323-000

$3.77

26

CIRCLIP (OUTER) (25MM)

90601-300-000

$3.83

27

BEARING, RADIAL BALL (6305) (NACHI)

91001-071-003

$46.05

28

BEARING, NEEDLE (20MM)

91022-MM2-670

Unavailable

29

BEARING, NEEDLE (20MM)

91022-415-008

$52.13

30

OIL SEAL (34X63X12)

91206-MC0-000

$18.67

31

OIL SEAL (34X66)

91211-393-003

$14.10

32

RING, SNAP (62MM)

94560-62200

$3.31

33

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

33

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

34

ROLLER (4X10)

96220-40100

$1.49
