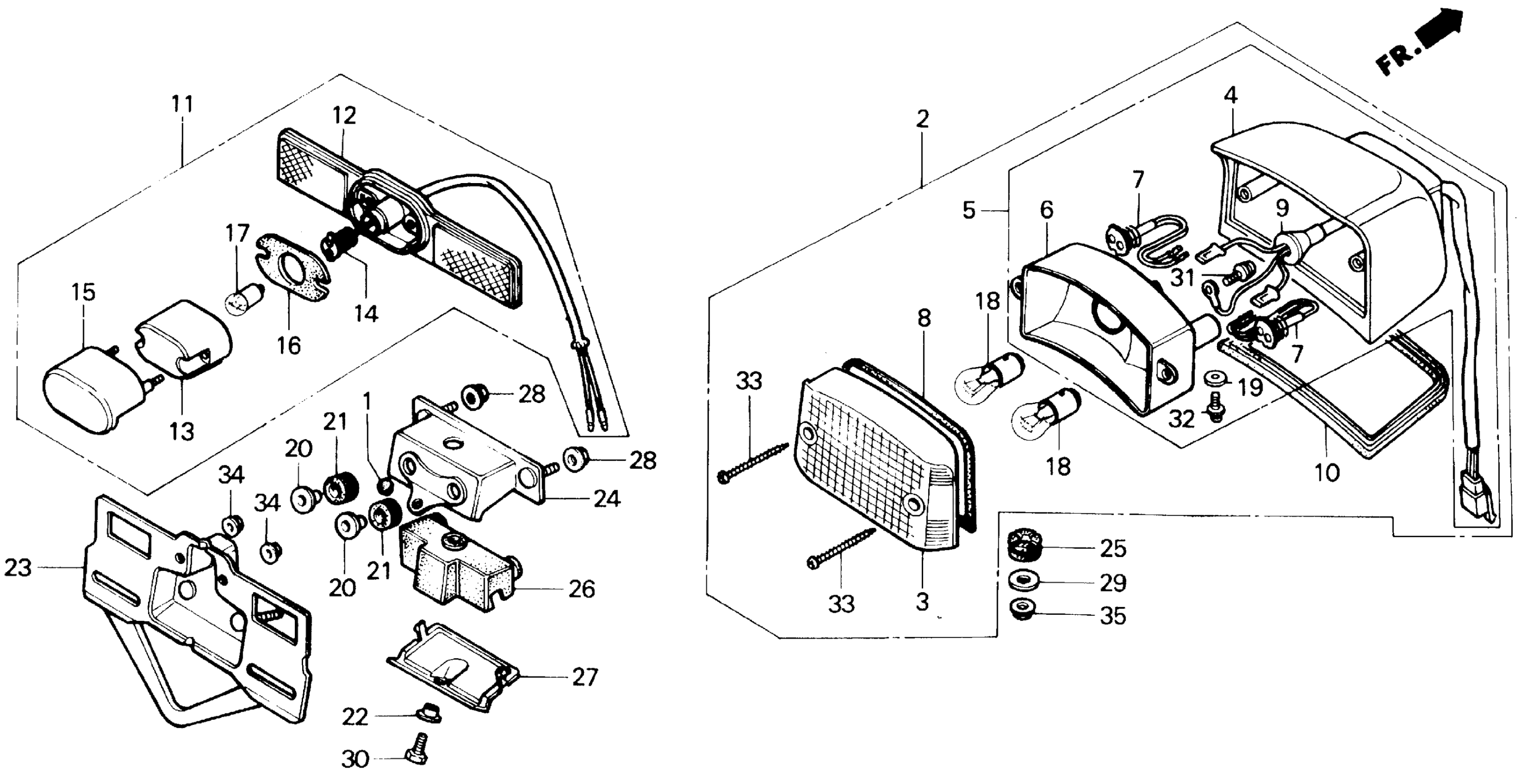

Honda CMX450CA (87) REBEL 450, JPN, VIN# JH2PC170-HM100001 TO JH2PC170-HM104034 TAILLIGHT Diagram

#

Description
Price

1

GROMMET B, RR. TURN SIGNAL WIRE

33666-053-000

$2.92

2

TAILLIGHT UNIT (NOT AVAILABLE)

33701-MM2-671

Unavailable

3

LENS, TAILLIGHT (NOT AVAILABLE)

33702-MM2-003

Unavailable

4

BASE, TAILLIGHT (NOT AVAILABLE)

33703-MM2-003

Unavailable

5

BASE, TAILLIGHT (NOT AVAILABLE)

33704-MM2-671

Unavailable

6

REFLECTOR, TAILLIGHT (NOT AVAILABLE)

33705-MM2-671

Unavailable

7

WIRE, TAILLIGHT (NOT AVAILABLE)

33706-MM2-003

Unavailable

8

GASKET, TAILLIGHT LENS

33709-KR3-671

$4.74

9

SUB-WIRE, TAILLIGHT

33711-MM2-003

Unavailable

10

GASKET, TAILLIGHT

33717-KR3-671

$15.34

11

LIGHT ASSY., LICENSE (NOT AVAILABLE)

33720-MM2-670

Unavailable

12

BASE

33721-MB1-671

$90.46

13

LENS, LICENSE

33722-MB1-013

$19.68

14

WIRE, LICENSE (NOT AVAILABLE)

33725-MM2-670

Unavailable

15

COVER

33727-MB1-003

Unavailable

16

GASKET, LENS

33729-MB1-003

$6.30

17

BULB (12V8W) This part replaces 34616-568-671.

34909-505-003

$2.92

17

BULB (12V8W) This part replaces 34902-500-003.

34909-505-003

$2.92

17

BULB (12V8W) This part replaces 34908-272-000.

34909-505-003

$2.92

17

BULB (12V8W4CP) (67) (STANLEY)

34909-505-003

$2.92

17

BULB (12V8W) This part replaces 34909-505-610.

34909-505-003

$2.92

18

BULB, TAILLIGHT (12V27/7W) (2057HD) (STANLEY)

34906-MG9-771

$4.15

19

WASHER, PLAIN (5.5MM)

37314-061-810

Unavailable

20

COLLAR, FR. FENDER (WHITE) This part replaces 61104-MA6-720.

61104-428-010

$4.42

20

COLLAR, FR. FENDER (WHITE) This part replaces 61104-357-000.

61104-428-010

$4.42

20

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

$4.42

21

RUBBER, HEADLIGHT CASE SETTING

61304-415-000

$3.47

22

COLLAR, SIDE COVER

61406-MB1-000

Unavailable

23

BRACKET, NUMBER PLATE

84701-MG8-000

Unavailable

24

STAY, NUMBER PLATE BRACKET

84702-MM2-000

Unavailable

25

RUBBER A, BATTERY HOLDER

50328-HA7-670

$4.31

26

COVER, NUMBER PLATE (INNER)

84703-MM2-000

Unavailable

27

COVER, NUMBER PLATE

84704-MM2-000

Unavailable

28

NUT, CAP (6MM)

90201-415-000

$2.05

29

WASHER, WHEEL (6MM)

90563-355-000

$3.13

29

WASHER, WHEEL (6MM) This part replaces 91414-634-000.

90563-355-000

$3.13

30

BOLT, HEX. (5X8) This part replaces 92000-05008.

92101-05008-0A

$1.49

30

BOLT, HEX. (5X8) This part replaces 92000-05008-0A.

92101-05008-0A

$1.49

30

BOLT, HEX. (5X8) This part replaces 92100-05008-0A.

92101-05008-0A

$1.49

30

BOLT, HEX. (5X8)

92101-05008-0A

$1.49

30

BOLT, HEX. (5X8) This part replaces 93000-05008.

92101-05008-0A

$1.49

31

SCREW-WASHER (4X10)

93892-04010-00

$1.49

31

SCREW-WASHER (4X10) This part replaces 93892-04010-10.

93892-04010-00

$1.49

32

SCREW-WASHER (5X14)

93892-05014-00

Unavailable

32

SCREW-WASHER (5X14) This part replaces 93892-05014-10.

93892-05014-00

Unavailable

33

SCREW, TAPPING (4X30)

93901-34780

$1.49

34

NUT, CAP (4MM)

94021-04020-0S

Unavailable

35

NUT, FLANGE (6MM)

94050-06000

$1.49
