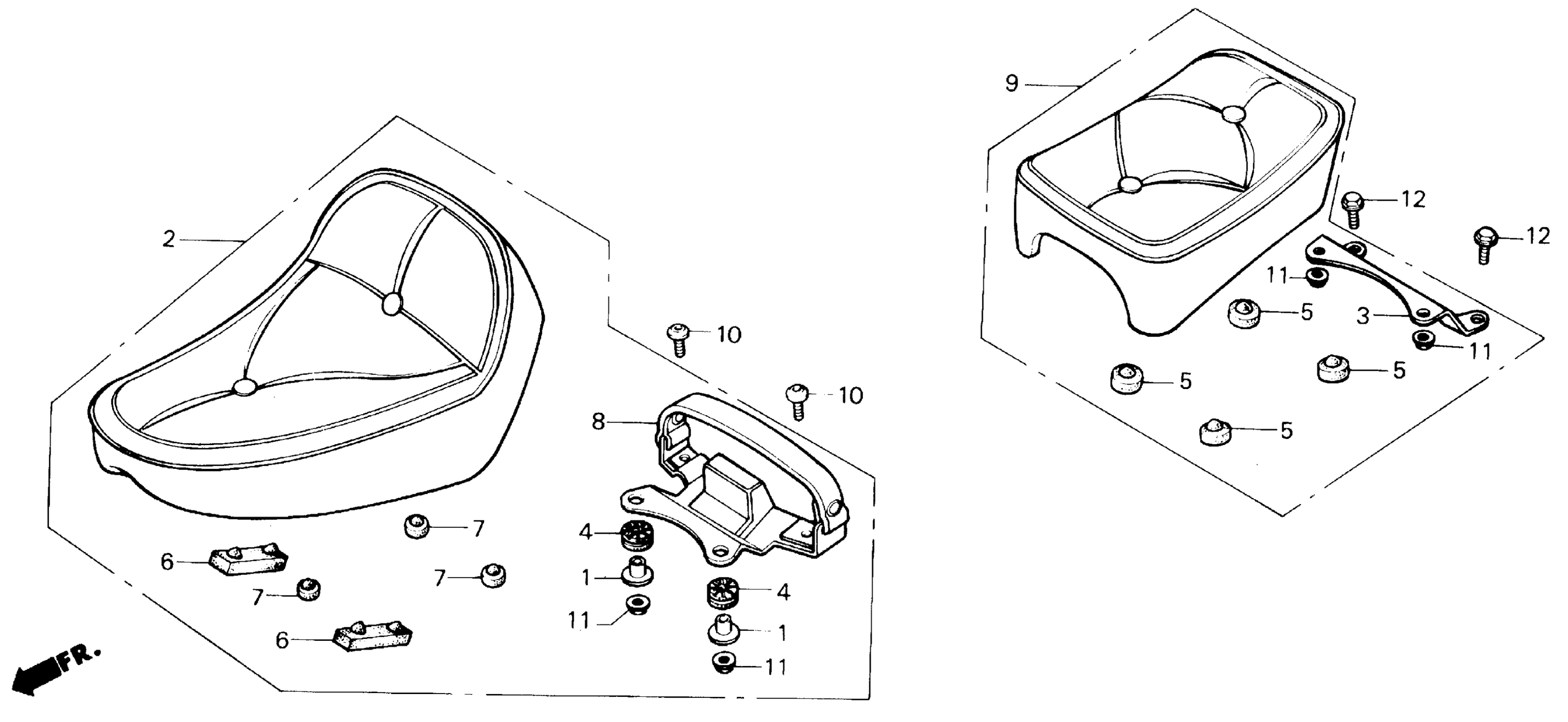

Honda CMX450CA (87) REBEL 450, JPN, VIN# JH2PC170-HM100001 TO JH2PC170-HM104034 SEAT Diagram

COLLAR (6.3X22)

61318-MF8-000

Unavailable

SEAT ASSY., FR. (NOT AVAILABLE)

77100-MM2-770

Unavailable

STAY, RR. SEAT (NOT AVAILABLE)

77203-MM2-000

Unavailable

RUBBER, SEAT SETTING

77206-MM2-000

Unavailable

RUBBER, SEAT SETTING

77206-426-000

$5.05

RUBBER C, SEAT SETTING (NOT AVAILABLE)

77207-KR3-000

Unavailable

RUBBER E, SEAT SETTING

77209-KR3-000

Unavailable

SEAT BELT (NOT AVAILABLE)

77210-MM2-000

Unavailable

SEAT ASSY., RR. (NOT AVAILABLE)

77300-MM2-770

Unavailable

BOLT, FLANGE (8X14) This part replaces 95700-08014-00.

95701-08014-00

$1.49

BOLT, FLANGE (8X14)

95701-08014-00

$1.49

NUT, FLANGE (6MM)

94050-06080

$1.49

BOLT, FLANGE (6X10) This part replaces 96000-06010-07.

96001-06010-07

$1.62

BOLT, FLANGE (6X10)

96001-06010-07

$1.62
