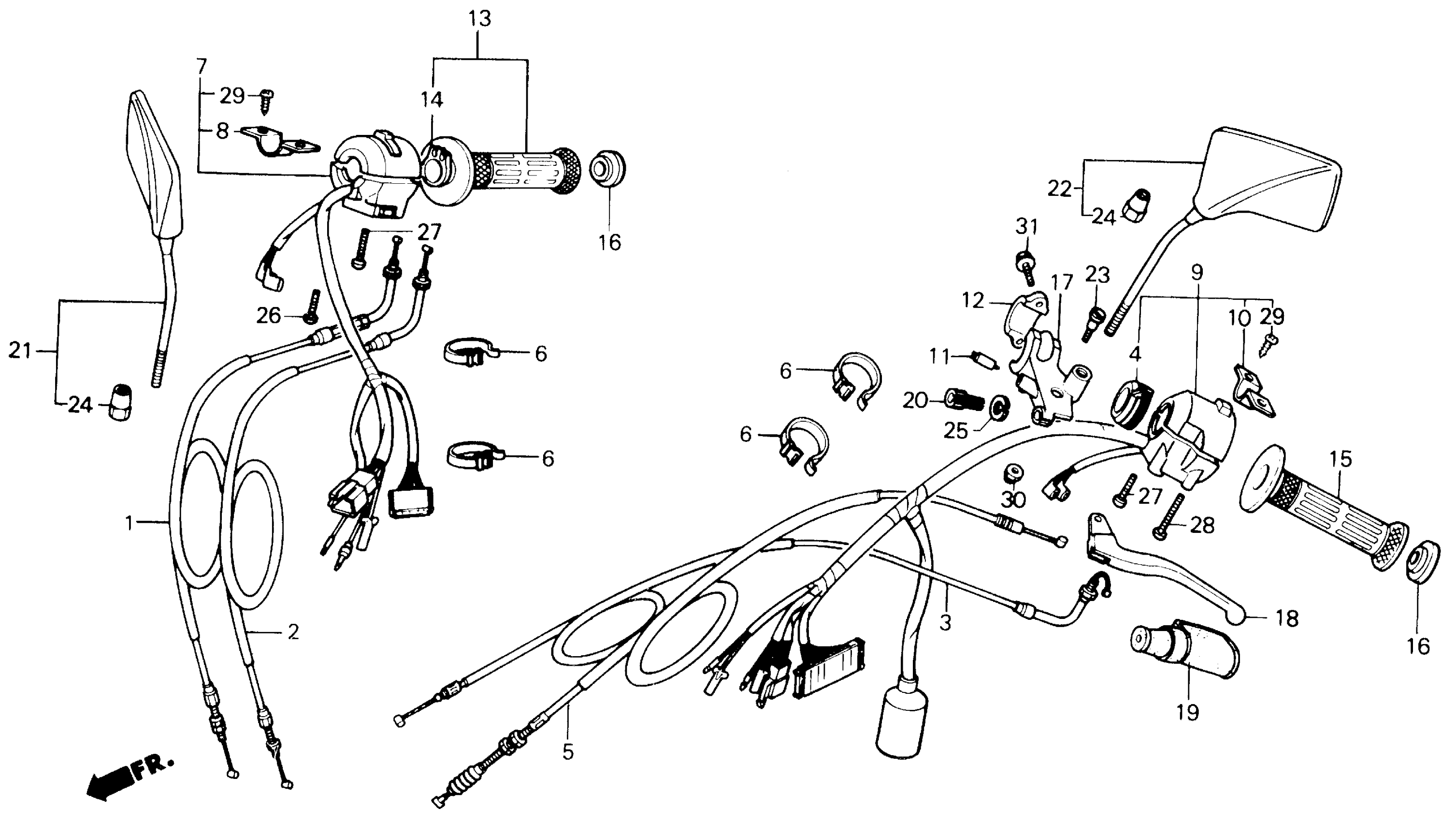

Honda CMX450CA (87) REBEL 450, JPN, VIN# JH2PC170-HM100001 TO JH2PC170-HM104034 HANDLE SWITCH Diagram

CABLE A, THROTTLE (NOT AVAILABLE)

17910-MM2-000

Unavailable

CABLE B, THROTTLE (NOT AVAILABLE)

17920-MM2-000

Unavailable

CABLE, CHOKE

17950-MM2-000

Unavailable

LEVER, CHOKE

17962-KE8-701

Unavailable

CABLE, CLUTCH

22870-MM2-000

Unavailable

BAND B1, CABLE

32161-404-000

$2.23

SWITCH ASSY., STARTING STOP (TOYO) (NOT AVAILABLE)

35130-MM2-670

Unavailable

PLATE, STOP SWITCH SETTING

35152-KE8-703

$7.61

SWITCH ASSY., TURN SIGNAL (TOYO) (NOT AVAILABLE)

35200-MM2-670

Unavailable

PLATE, TURN SIGNAL SWITCH SETTING

35204-KE8-702

$9.79

SWITCH, FR. LEVER

35330-413-003

$21.91

HOLDER, MASTER CYLINDER

45517-166-006

$13.55

GRIP ASSY., THROTTLE (NOT AVAILABLE)

53140-MM2-000

Unavailable

PIPE, THROTTLE GRIP

53141-422-000

$21.74

GRIP, L. HANDLE (NOT AVAILABLE)

53166-MM2-000

$10.92

BRACKET, HANDLEBAR

53172-MJ6-000

Unavailable

LEVER, L. HANDLEBAR

53178-KM9-000

Unavailable

BOOT, HANDLEBAR

53180-425-010

$18.53

BOLT, CABLE ADJUSTING

53192-268-000

$6.72

MIRROR, R.

88110-KR3-670

Unavailable

MIRROR, L.

88120-KR3-670

Unavailable

BOLT, HANDLEBAR PIVOT

90113-KT7-000

Unavailable

NUT, LOCK

90314-323-000

$4.45

NUT, FIXING

90321-MA6-750

$10.45

SCREW-WASHER (5X20)

93892-05020-07

$1.49

SCREW-WASHER (5X28)

93892-05028-07

$1.49

SCREW-WASHER (5X45)

93892-05045-07

$1.49

SCREW, TAPPING (3X8)

93901-32120

$1.49

NUT, CAP (6MM)

90201-428-900

$2.23

BOLT, FLANGE (6X25) This part replaces 96000-06025-07.

96001-06025-07

$1.49

BOLT, FLANGE (6X25)

96001-06025-07

$1.49
