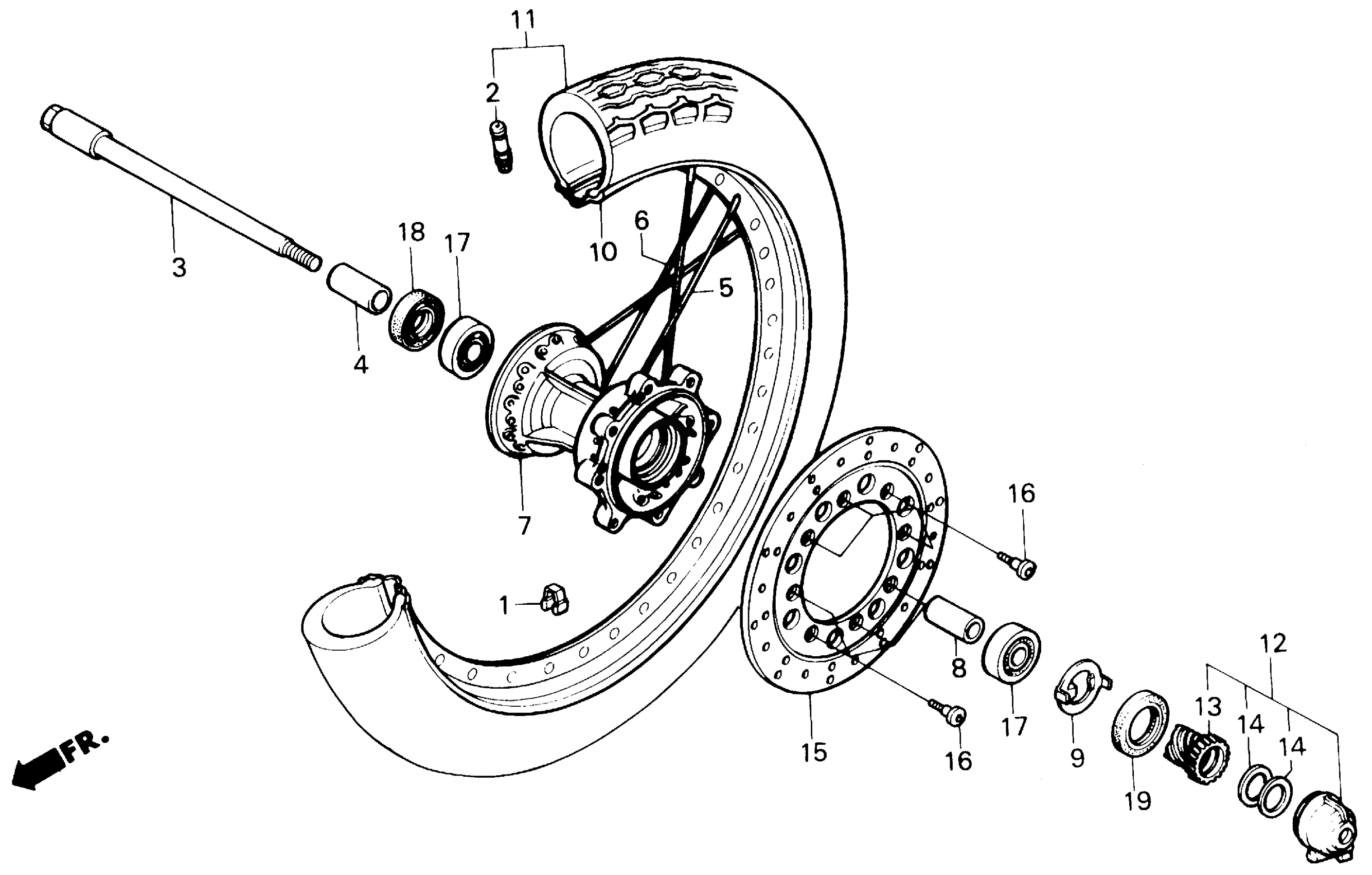

Honda CMX450CA (87) REBEL 450, JPN, VIN# JH2PC170-HM100001 TO JH2PC170-HM104034 FRONT WHEEL Diagram

#

Description
Price

1

WEIGHT, BALANCE (10G)

42704-MM2-670

Unavailable

1

WEIGHT, BALANCE (20G)

42705-MM2-670

Unavailable

1

WEIGHT, BALANCE (30G)

42706-MM2-670

Unavailable

2

VALVE, RIM (BS)

42753-ML7-003

$12.74

2

VALVE, RIM (DUNLOP)

42753-ML7-004

$12.74

3

AXLE, FR. WHEEL (NOT AVAILABLE)

44301-MM2-670

Unavailable

4

COLLAR, FR. WHEEL SIDE (NOT AVAILABLE)

44311-MM2-670

Unavailable

5

SPOKE SET A, FR.

446A0-MM2-671

Unavailable

6

SPOKE SET B, FR.

446B0-MM2-671

Unavailable

7

HUB, FR. WHEEL

44601-MM2-670

Unavailable

8

COLLAR, FR. AXLE DISTANCE (NOT AVAILABLE)

44620-MM2-670

Unavailable

9

RETAINER, GEAR BOX

44680-410-000

$5.80

10

RIM, FR. WHEEL (DAIDO) (NOT AVAILABLE)

44701-MM2-671

Unavailable

11

TIRE ASSY., FR. (100/90-18) (DUNLOP) (NOT AVAILABLE) This part replaces 44710-MM2-671.

44710-MG0-722

Unavailable

11

TIRE ASSY., FR. (100/90-18) (DUNLOP) (NOT AVAILABLE) This part replaces 44710-MM2-672.

44710-MG0-722

Unavailable

12

BOX ASSY., SPEEDOMETER GEAR (NOT AVAILABLE)

44800-MK4-023

Unavailable

13

GEAR, SPEEDOMETER (NOT AVAILABLE)

44806-MK4-003

Unavailable

14

WASHER, SPEEDOMETER GEAR

44809-402-000

$2.34

15

DISK, FR. BRAKE (NOT AVAILABLE)

45251-MM2-670

Unavailable

16

BOLT, FR. DISK (8X24)

90105-KR3-000

$6.07

17

BEARING,BALL RADI This part replaces 91052-KR3-005.

91051-KEH-662

$38.56

18

DUST SEAL (22X42X7)

91252-MC7-003

$7.46

19

DUST SEAL (40X50X5) (ARAI)

91258-410-013

$9.80
