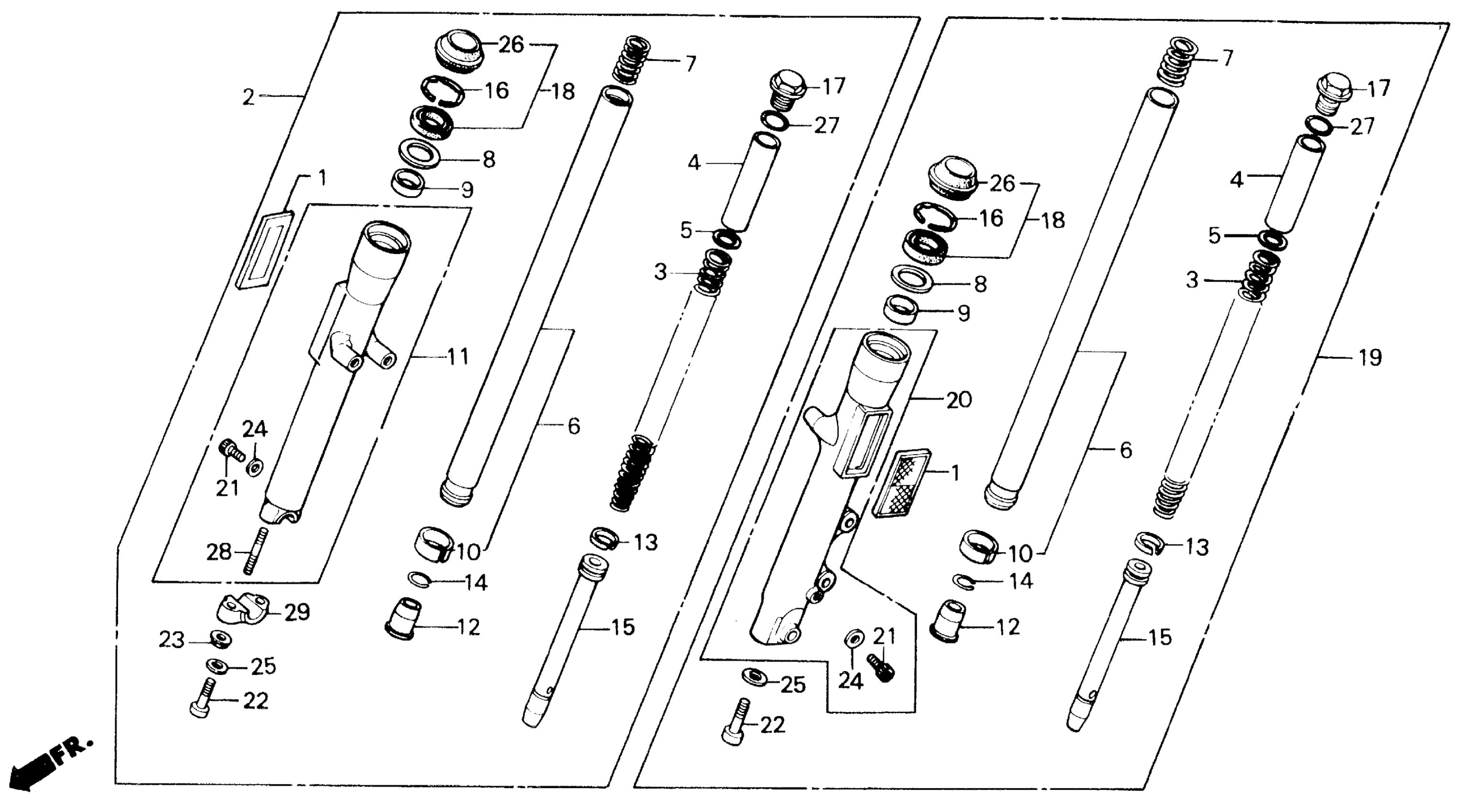

Honda CMX450CA (87) REBEL 450, JPN, VIN# JH2PC170-HM100001 TO JH2PC170-HM104034 FRONT FORK Diagram

#

Description
Price

1

REFLECTOR, FR. REFLEX

33740-KR3-671

$28.01

2

FORK ASSY., R. FR. (SHOWA)

51400-MM2-671

Unavailable

3

SPRING, FR. FORK (NOT AVAILABLE)

51401-MM2-671

Unavailable

4

COLLAR, SPRING

51402-MF8-003

Unavailable

5

PLATE, SPRING JOINT

51403-ME4-003

$6.51

6

PIPE, FR. FORK (NOT AVAILABLE)

51410-MM2-671

Unavailable

7

SPRING, FR. FORK REBOUND

51411-MG1-003

$6.16

8

RING, BACK-UP

51412-461-003

$6.56

9

BUSH, GUIDE

51414-MN4-003

Unavailable

9

BUSH, GUIDE This part replaces 51414-461-003.

51414-MN4-003

Unavailable

10

BUSH, SLIDER This part replaces 51415-ML7-003.

51415-KSE-A71

$7.99

10

BUSH, SLIDER This part replaces 51415-MN4-003.

51415-KSE-A71

$7.99

11

CASE, R. (LOWER)

51421-MM2-671

Unavailable

12

PIECE, OIL LOCK

51432-ML7-003

Unavailable

13

RING, PISTON

51437-ME4-003

$8.64

14

RING, PISTON STOPPER

51439-340-300

Unavailable

15

PIPE, SEAT

51440-MM2-671

Unavailable

16

RING, OIL SEAL STOPPER

51447-KR6-003

$3.52

17

BOLT, FR. FORK (NOT AVAILABLE)

51454-MM2-671

Unavailable

18

SEAL SET, FR. FORK

51490-KAZ-003

$30.03

18

SEAL SET, FR. FORK This part replaces 51490-ML7-305.

51490-KAZ-003

$30.03

19

FORK ASSY., L. FR. (SHOWA) (NOT AVAILABLE)

51500-MM2-671

Unavailable

20

CASE, L. (LOWER)

51521-MM2-671

Unavailable

21

BOLT, SOCKET (6X8)

90111-MK7-671

Unavailable

22

BOLT, SOCKET (8MM) (SHOWA)

90116-KV3-701

$3.62

22

BOLT, SOCKET (8MM) This part replaces 90116-ML4-003.

90116-KV3-701

$3.62

23

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.12

23

NUT, FLANGE (8MM)

90309-428-731

$3.12

24

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.25

25

WASHER, SPECIAL (8MM)

90544-283-000

$2.61

26

DUST SEAL

91254-KAZ-003

$15.27

26

DUST SEAL This part replaces 91254-ML7-003.

91254-KAZ-003

$15.27

27

O-RING (30.2X2.4)

91356-MJ6-741

$2.96

28

BOLT 2, STUD (8X32)

92900-08032-3E

Unavailable

29

HOLDER 1C, FR. FORK AXLE

95014-41000

$12.93
