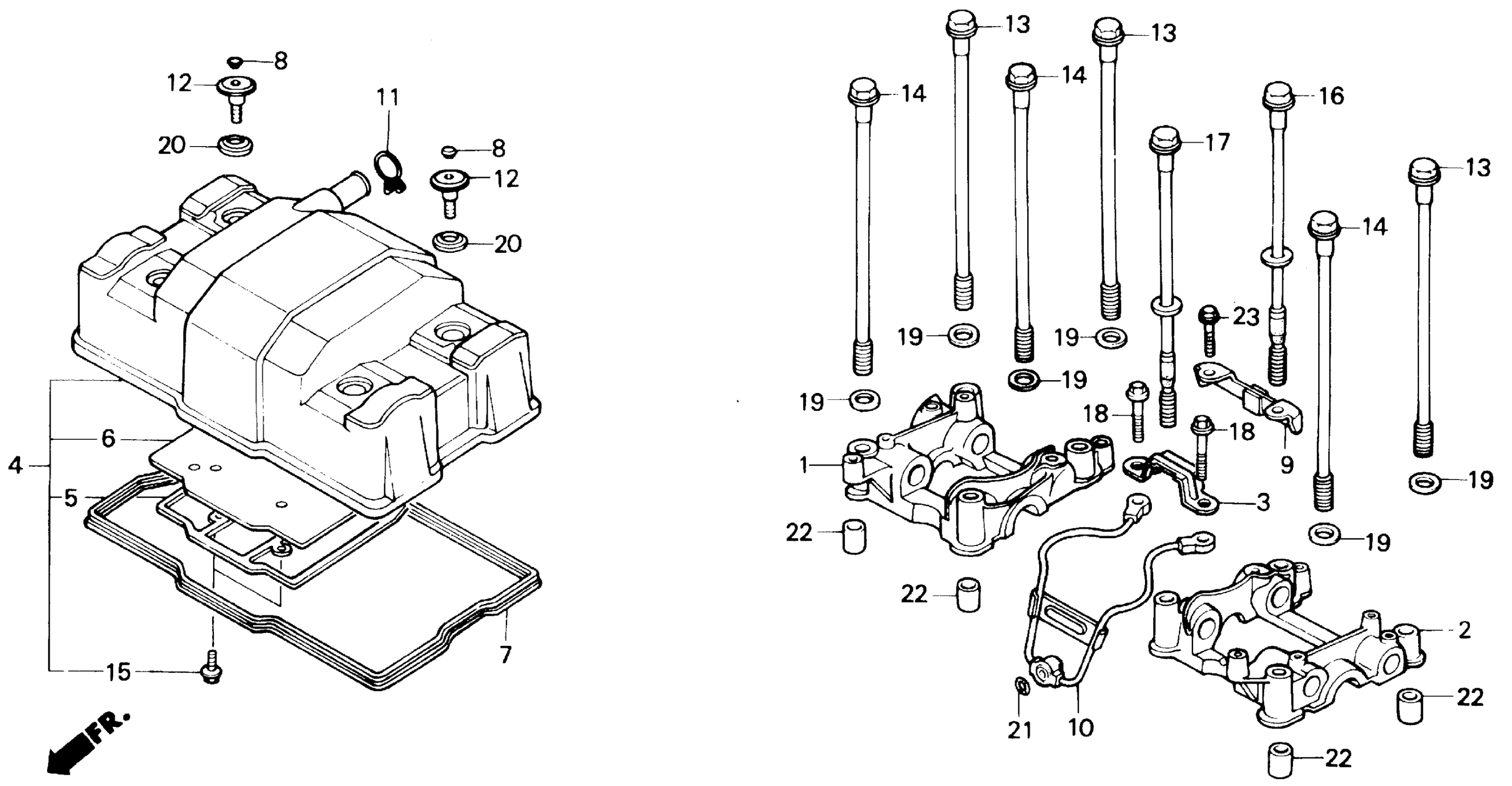

Honda CMX450CA (87) REBEL 450, JPN, VIN# JH2PC170-HM100001 TO JH2PC170-HM104034 CYLINDER HEAD COVER Diagram

HOLDER, R. CAMSHAFT

12210-ML4-610

Unavailable

HOLDER, L. CAMSHAFT

12220-ML4-610

Unavailable

PLATE, JOINT SETTING

12245-ML4-611

Unavailable

COVER ASSY., CYLINDER HEAD (NOT AVAILABLE)

12300-MM2-670

Unavailable

PLATE, BREATHER

12321-ML4-610

Unavailable

GASKET, BREATHER PLATE

12322-ML4-306

Unavailable

GASKET, BREATHER PLATE This part replaces 12322-ML4-610.

12322-ML4-306

Unavailable

GASKET, CYLINDER HEAD COVER

12391-ML4-610

Unavailable

STOPPER, CAM CHAIN TENSIONER

14540-ML4-610

Unavailable

PIPE A, OIL

15480-ML4-610

Unavailable

BOLT, HEAD COVER

90003-ML4-611

Unavailable

BOLT, CYLINDER (212) (NO GROMMET)

90081-MC0-000

Unavailable

BOLT, CYLINDER (222) (NO GROMMET)

90083-MC0-000

Unavailable

BOLT, FLANGE (6X10)

90083-657-000

$5.67

BOLT, CYLINDER (212B) (W/GROMMET)

90087-MC0-010

$23.03

BOLT, CYLINDER (222B) (W/GROMMET)

90088-MC0-010

$21.71

BOLT, FLANGE (6X35) (NOT AVAILABLE)

90140-MC0-000

Unavailable

WASHER (10MM) This part replaces 90403-ML4-610.

90403-ML4-611

$6.21

RUBBER, SETTING This part replaces 90543-ML4-610.

90543-MV9-670

$4.94

RUBBER, SETTING

90543-MV9-670

$4.94

O-RING (8.5X1.7)

90751-MC0-000

Unavailable

PIN A, DOWEL (14X20)

94301-14200

$2.28

BOLT, FLANGE (6X14) This part replaces 95700-06014-00.

95701-06014-00

$1.49

BOLT, FLANGE (6X14)

95701-06014-00

$1.49
