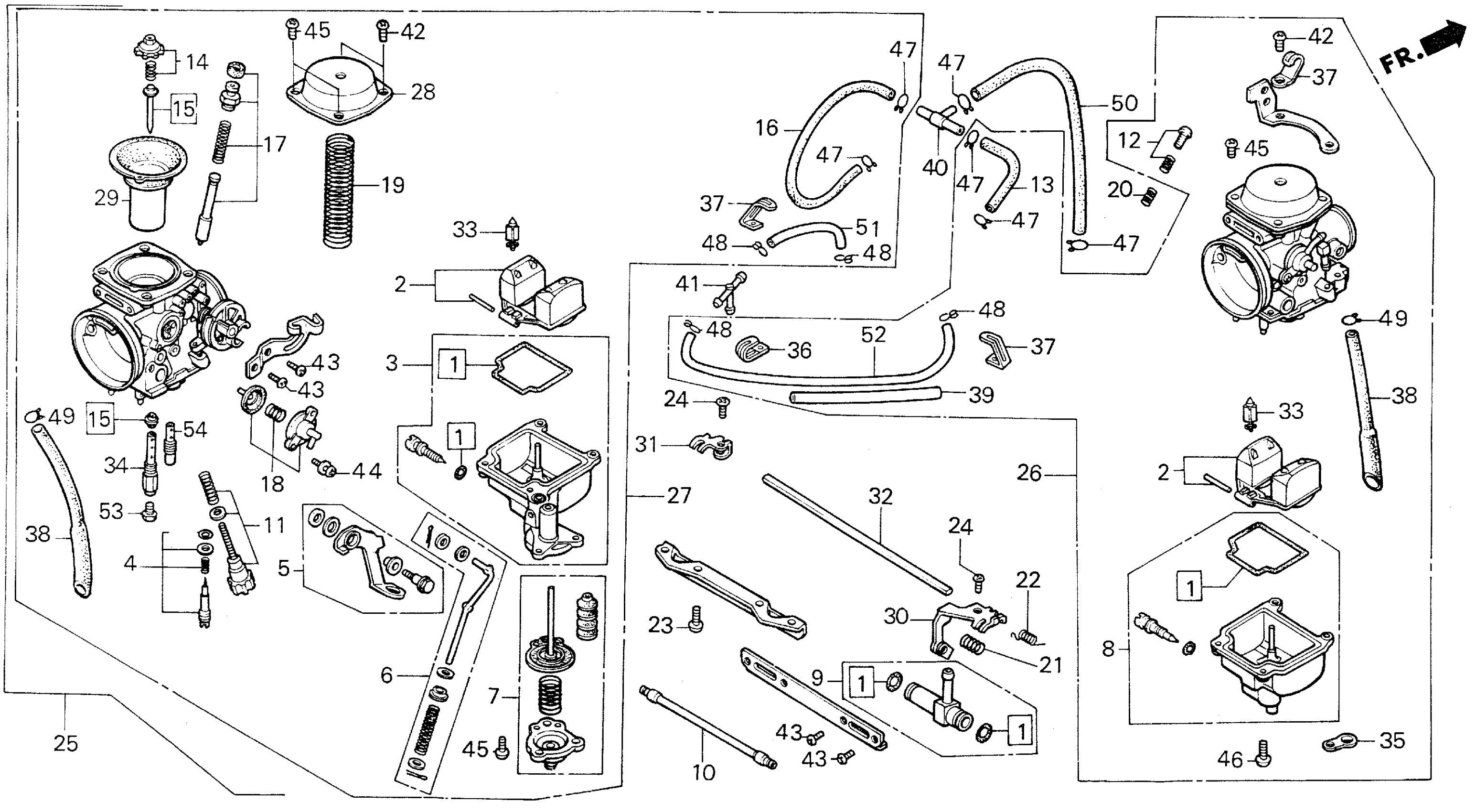

Honda CMX450CA (87) REBEL 450, JPN, VIN# JH2PC170-HM100001 TO JH2PC170-HM104034 CARBURETOR Diagram

#

Description
Price

1

GASKET SET

16010-MM2-671

$32.95

2

FLOAT SET This part replaces 16013-MA6-003.

16013-KR3-980

$55.27

3

CHAMBER SET, FLOAT

16015-MM2-671

Unavailable

4

SCREW SET This part replaces 16016-KR3-671.

16016-MY6-770

$21.27

4

SCREW SET This part replaces 16016-ME5-671.

16016-MY6-770

$21.27

5

LINK SET

16017-MM2-671

Unavailable

6

ROD SET, PUMP (NOT AVAILABLE)

16019-MM2-671

Unavailable

7

DIAPHRAGM SET, PUMP (NOT AVAILABLE)

16021-MM2-671

Unavailable

8

CHAMBER SET, FLOAT This part replaces 16023-MM2-671.

16015-KFG-000

$120.31

8

CHAMBER SET, FLOAT This part replaces 16045-MJ1-671.

16015-KFG-000

$120.31

8

CHAMBER SET, FLOAT This part replaces 16045-MJ1-672.

16015-KFG-000

$120.31

9

JOINT SET, FUEL (NOT AVAILABLE)

16026-MM2-671

Unavailable

10

JOINT SET, FUEL

16027-MM2-671

Unavailable

11

SCREW SET This part replaces 16028-KR3-671.

16028-KR3-980

$46.87

12

SCREW SET This part replaces 16029-KE8-004.

16029-KEJ-900

Unavailable

13

TUBE SET A, FUEL (NOT AVAILABLE)

16034-MM2-671

Unavailable

14

PLATE SET, VALVE

16037-ME5-671

$29.52

15

NEEDLE SET, JET (NOT AVAILABLE) | Use up to Engine SN VE24C A

16012-MM2-771

Unavailable

15

NEEDLE SET, JET (NOT AVAILABLE) | Use from Engine SN VE24C B

16012-MM2-772

Unavailable

16

TUBE SET B, FUEL (NOT AVAILABLE)

16042-MM2-671

Unavailable

17

VALVE SET, STARTER This part replaces 16046-ME5-671.

16046-ME5-672

$63.09

17

VALVE SET, STARTER This part replaces 16046-MM2-671.

16046-ME5-672

$63.09

18

VALVE SET, AIR CUT This part replaces 16048-KR0-003.

16048-MR4-901

Unavailable

18

VALVE SET, AIR CUT

16048-MR4-901

Unavailable

19

SPRING, VACUUM PISTON (NOT AVAILABLE)

16050-ML4-611

Unavailable

20

SPRING

16052-MB0-671

$6.23

21

SPRING, COMPRESSION COIL

16053-MM2-671

Unavailable

22

SPRING

16054-MA6-003

$8.67

23

SCREW, PAN (6X12)

16080-ML4-611

$3.24

24

SCREW, PAN (4X8) This part replaces 16081-MM2-671.

16081-ML4-611

Unavailable

25

CARBURETOR ASSY. (NOT AVAILABLE) | Use up to Engine SN 2103550 This part replaces 16100-MM2-771.

16100-MM2-772

Unavailable

25

CARBURETOR ASSY. (NOT AVAILABLE) | Use from Engine SN 2103551

16100-MM2-772

Unavailable

26

CARBURETOR ASSY., R. | Use up to Engine SN VE24C A This part replaces 16101-MM2-771.

16101-MM2-773

Unavailable

26

CARBURETOR ASSY., R. | Use up to Engine SN VE24C A This part replaces 16101-MM2-772.

16101-MM2-773

Unavailable

26

CARBURETOR ASSY., R. | Use from Engine SN VE24C B This part replaces 16101-MM2-772.

16101-MM2-773

Unavailable

26

CARBURETOR ASSY., R. | Use up to Engine SN VE24C A

16101-MM2-773

Unavailable

26

CARBURETOR ASSY., R. | Use from Engine SN VE24C B

16101-MM2-773

Unavailable

27

CARBURETOR ASSY., L. | Use up to Engine SN VE24C A This part replaces 16102-MM2-771.

16102-MM2-773

Unavailable

27

CARBURETOR ASSY., L. | Use up to Engine SN VE24C A This part replaces 16102-MM2-772.

16102-MM2-773

Unavailable

27

CARBURETOR ASSY., L. | Use from Engine SN VE24C B This part replaces 16102-MM2-772.

16102-MM2-773

Unavailable

27

CARBURETOR ASSY., L. | Use up to Engine SN VE24C A

16102-MM2-773

Unavailable

27

CARBURETOR ASSY., L. | Use from Engine SN VE24C B

16102-MM2-773

Unavailable

28

TOP This part replaces 16108-ME5-671.

16108-MJ1-671

$40.50

28

TOP

16108-MJ1-671

$40.50

29

PISTON, VACUUM (NOT AVAILABLE)

16111-MM2-771

Unavailable

30

LEVER, STARTER

16120-ML4-611

Unavailable

30

LEVER, STARTER This part replaces 16120-MM2-671.

16120-ML4-611

Unavailable

31

LEVER, STARTER

16121-MA6-003

$14.62

32

SHAFT, STARTER LINK This part replaces 16145-MM2-671.

16145-ML4-611

Unavailable

33

VALVE, FLOAT

16155-397-971

$41.45

34

HOLDER, NEEDLE JET

16165-HC4-003

Unavailable

34

HOLDER, NEEDLE JET (NOT AVAILABLE) This part replaces 16165-KR0-003.

16165-HC4-003

Unavailable

35

BINDER

16179-HA0-003

$12.85

37

CLIP, PLATE This part replaces 16179-ML4-651.

17191-MN5-740

Unavailable

37

CLIP, PLATE

17191-MN5-740

Unavailable

38

TUBE, AIR VENT This part replaces 16198-MM2-671.

16199-KBW-405

Unavailable

38

TUBE, AIR VENT

16199-KBW-405

Unavailable

40

JOINT, VACUUM TUBE (A)

17201-MG9-000

$15.94

42

SCREW, PAN (4X8)

93500-04008-0A

$1.49

43

SCREW, PAN (5X10)

93500-05010-0A

$1.49

44

SCREW-WASHER (4X10)

93892-04010-08

$1.49

45

SCREW-WASHER (4X12)

93892-04012-00

$1.49

46

SCREW-WASHER (4X12)

93892-04014-00

$1.49

47

CLIP, TUBE (B7)

95002-02070

$1.80

49

CLIP, TUBE (B6.5)

95002-02650

$1.49

50

BULK HOSE, VACUUM (3.5X8000) (3.5X90)

95005-35008-10M

$105.82

53

JET (#112)

99101-GHB-1120

$7.98

53

JET (#112) This part replaces 99101-393-1120.

99101-GHB-1120

$7.98

54

JET, SLOW (#38)

99103-MA4-0380

$27.62
