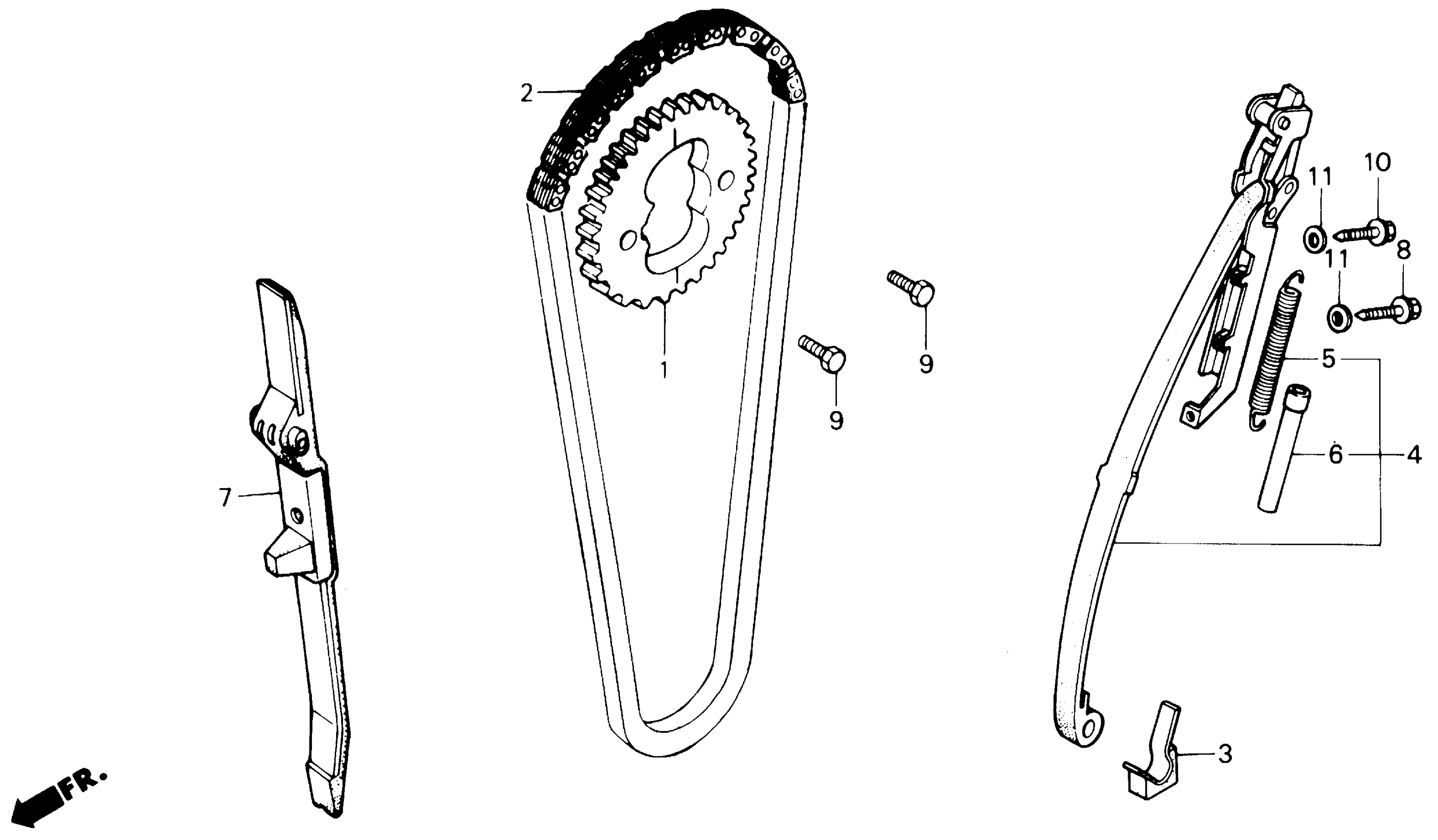

Honda CMX450CA (87) REBEL 450, JPN, VIN# JH2PC170-HM100001 TO JH2PC170-HM104034 CAM CHAIN Diagram

SPROCKET, CAM

14321-413-010

Unavailable

CHAIN, CAM (TSUBAKIMOTO)

14401-MR4-901

$173.26

CHAIN, CAM (TSUBAKIMOTO) This part replaces 14401-413-014.

14401-MR4-901

$173.26

CHAIN, CAM (TSUBAKIMOTO) This part replaces 14401-413-024.

14401-MR4-901

$173.26

DAMPER, TENSIONER

14505-MC0-000

Unavailable

TENSIONER, CAM CHAIN

14510-MM2-670

Unavailable

SPRING, CAM CHAIN TENSIONER

14516-MG8-003

$4.78

TUBE, TENSIONER SPRING

14539-MM2-670

Unavailable

GUIDE, CAM CHAIN

14620-ML4-610

Unavailable

BOLT, FLANGE NSHF (6X24)

90001-MEM-670

$1.80

BOLT, FLANGE (6X24) This part replaces 90016-MG8-000.

90001-MEM-670

$1.80

BOLT, SPECIAL FLANGE (7X13) This part replaces 90086-MF5-000.

90086-MZ8-H00

$2.98

BOLT, SPECIAL FLANGE (7X13)

90086-MZ8-H00

$2.98

BOLT, SPECIAL (6X28)

90125-KB4-670

$4.61

BOLT, SPECIAL (6MM) This part replaces 90125-399-000.

90125-KB4-670

$4.61

WASHER, SEALING (6MM)

90441-706-000

$1.49
